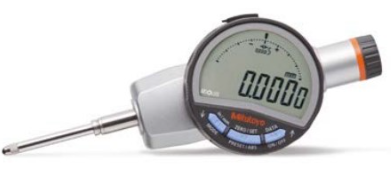

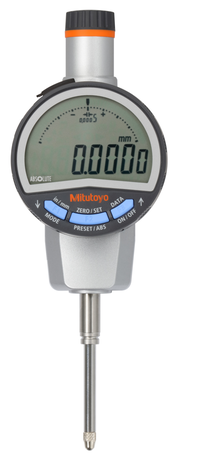

Mitutoyo 543-721B (0.01mm/0.001mm/.0005",.00005") ABSOLUTE Digital Indicator ID-CX Flat Back 0-25mm (0-1″) 8mm stem

Roll over image to zoom in Click on image to zoom

Mitutoyo 543-721B (0.01mm/0.001mm/.0005",.00005") ABSOLUTE Digital Indicator ID-CX Flat Back 0-25mm (0-1″) 8mm stem

Name: Mitutoyo 543-721B (0.01mm/0.001mm/.0005",.00005") ABSOLUTE Digital Indicator ID-CX Flat Back 0-25mm (0-1″) 8mm stem
Brand: Mitutoyo
SKU: 543-721B
Price: 450.0 EUR
Availability: InStock

MitutoyoSKU: 543-721B

Price:

€450.00 €645.00

Quantity:

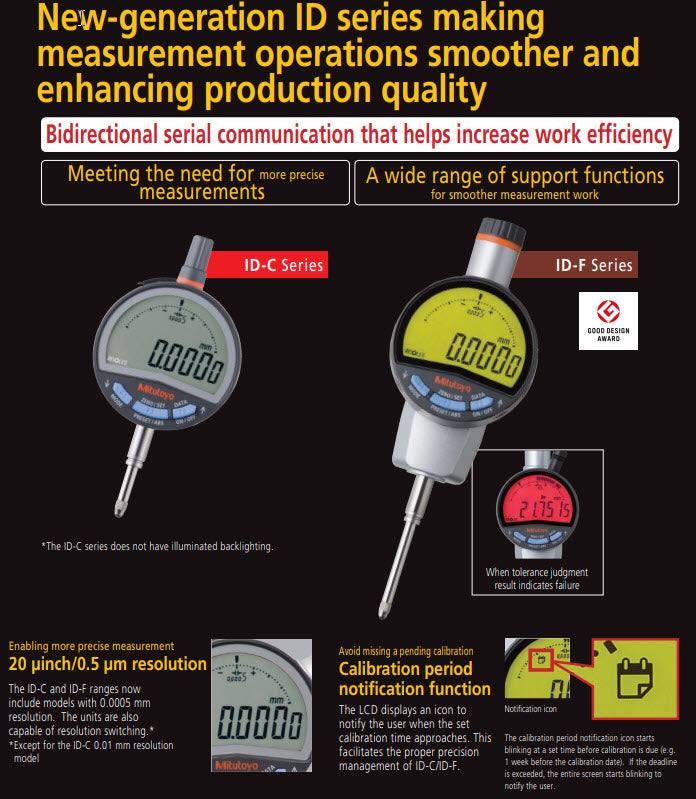

This is a multifunction standard indicator that is reliable and easy to use.

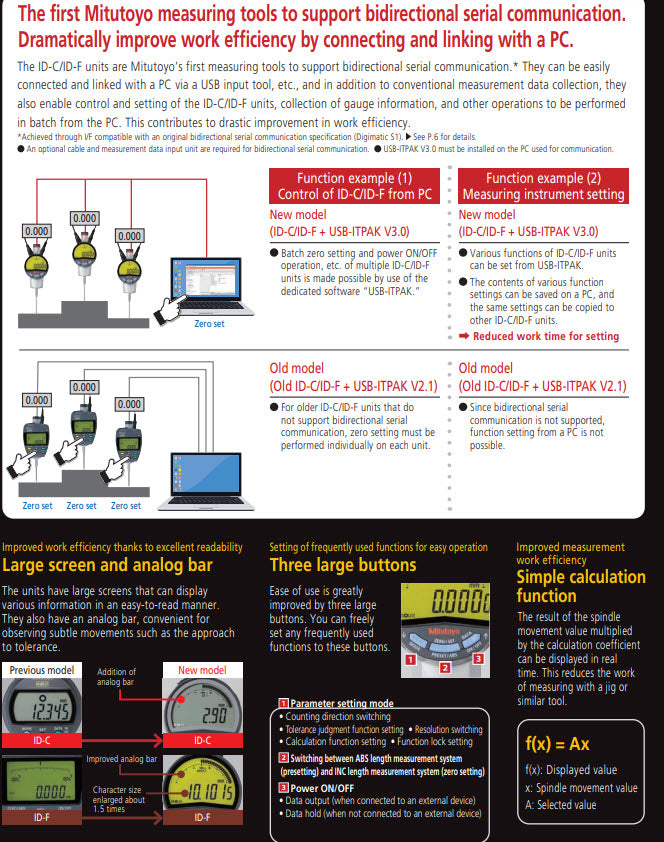

Bidirectional communication e.g. to perform parameter setting from a PC (Digimatic S 1 interface) is possible.
The ABSOLUTE sensor means you don‘t have to carry out origin setting every time you power it on, saving you time and hassle.
Excellent visibility with a large digital/analog display.
Model with 0,5 µm digital step is available.
Measurements such as simple calculation and peak detection are possible.
Equipped with a calibration schedule warning function.
GO/±NG judgement is performed by setting the upper and lower tolerances.
Display 330° rotatable.
A function lock protects the display against unauthorised use.

Flat Back

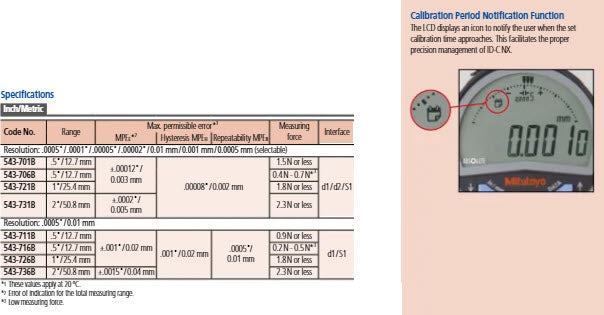

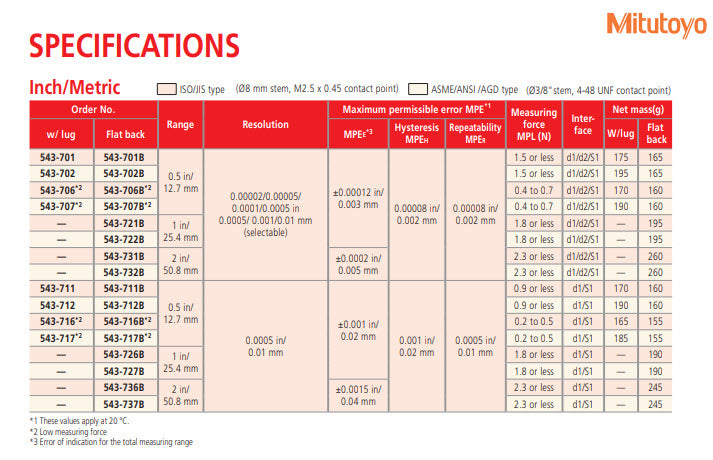

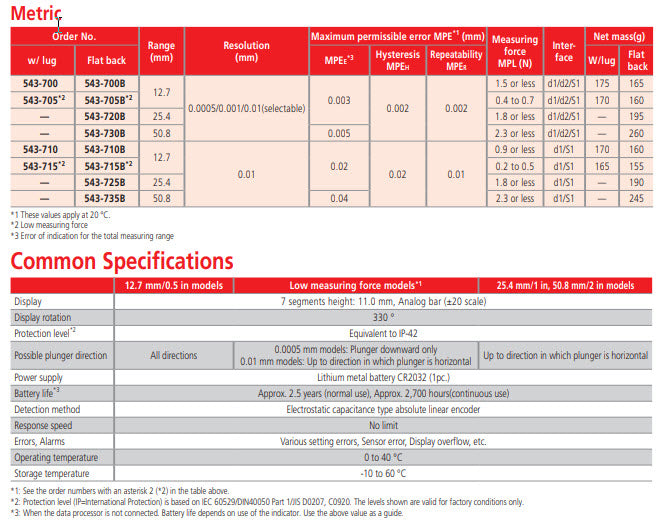

Specification

Digital/Analog:	Digital
Inch-Metric:	Inch/Metric
Delivered:	Including CR2032 battery, battery lid opener, certificate of inspection
Range:	0.5"/12.7 mm
Digital step:	0.00002"/0.00005"/0.0001"/0.0005" 0.0005 mm/0.001 mm/0.01 mm
Max. Permissible Error E MPE (Total Range):	±0.00012"/0.003 mm
H MPE (Hysteresis):	0.00008"/0.002 mm
R MPE (Repeatability):	0.00008"/0.002 mm
Measuring force MPL:	0.4N – 0.7N
Protection:	IP42
Type:	EN ISO Standard
Mass:	165 g

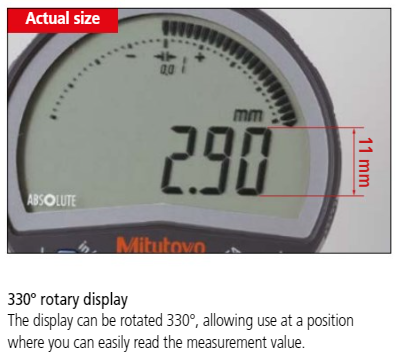

Display:	LCD, character height 11 mm, 330° rotatable
Max. response speed:	Unlimited
Measurement frequency (MAX/MIN/RANGE):	50 times/s
Alarm:	Low voltage, setting errors, sensor error, display overflow a.s.o.
Stem ∅:	8mm
Contact point:	Carbide ball, thread: M2.5x0.45
Power supply:	1 battery CR2032
Battery life:	Approx. 2700 hours (continuous use)
DATA/HOLD:	Yes
Digimatic data output:	Yes
Digimatic S1 Bidirectional interface:	Yes
ON/OFF:	Yes
Analog bar resolution switchable:	Yes
Function lock:	Yes
GO/±NG judgement:	Yes
ABS / INC (INC ZERO):	Yes
Analog bar resolution selection:	Yes
Auto Power OFF setting:	Yes
Calculation function (with formula):	Yes

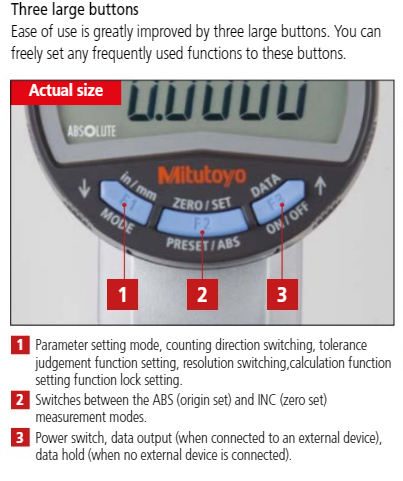

Customizing keys:	Yes
Counting direction switchable:	Yes
Inch/Metric switchable:	Yes
Calibration warning function:	Yes
Digital step switchable:	Yes
Delivered:	Including CR-2032 battery, battery lid opener, spindle lifting handle (25,4 and 50,8 mm models), weight (low force models), certificate of inspection
Digital Scale:	Electrostatic capacitance type absolute linear encoder

Product Information
Part Number	543-721B
Measuring Range	0-12mm/0-1"
Resolution	0.0005 mm/0.001 mm/0.01 mm/ 0.00002"/0.00005"/0.0001"/0.0005"
Accuracy	["±.003mm/.00015\""]
Unit of Measurement	Metric Inch
Display Type	Digital
Data Output	Yes
IP Rating	["IP42"]
Measuring Force	≤1.8N
Type	Flat Back
Dial Face Size Ø	59mm
Stem	8mm
Back	Flat back
Power Supply	CR2032 Battery
Calibration Code	CAL16 B1
Stem	8mm
