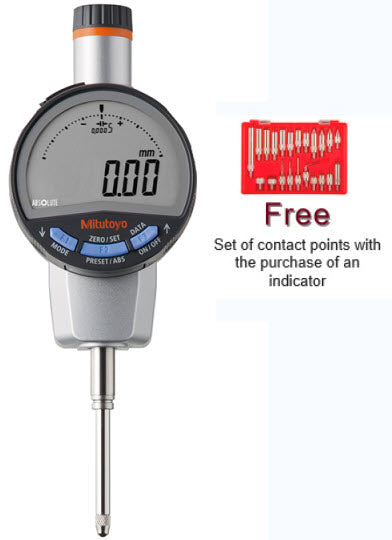

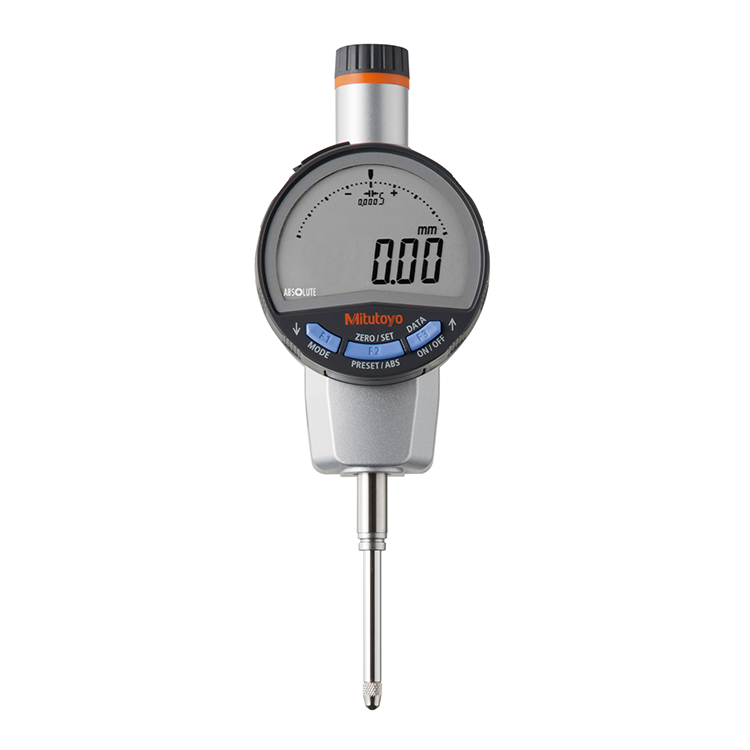

Mitutoyo 543-725B (0.01mm) Flat Back Digital Indicator ID-C 0-25mm

Roll over image to zoom in Click on image to zoom

Mitutoyo 543-725B (0.01mm) Flat Back Digital Indicator ID-C 0-25mm

Name: Mitutoyo 543-725B (0.01mm) Flat Back Digital Indicator ID-C 0-25mm
Brand: Mitutoyo
SKU: 543-725B
Price: 378.75 EUR
Availability: InStock

MitutoyoSKU: 543-725B

Price:

€378.75 €450.00

Quantity:

Bi-directional communication e.g. to perform parameter setting from a PC (Digimatic S 1 interface) is possible.
The ABSOLUTE sensor means you don‘t have to carry out origin setting every time you power it on, saving you time and hassle.
Excellent visibility with a large digital/analog display.
Measurements such as simple calculation and peak detection are possible.
Equipped with a calibration schedule warning function.
GO/±NG judgement is performed by setting the upper and lower tolerances.
A function lock protects the display against unauthorised use.

Range: 0-25.4mm
Resolution: 0.01mm
Accuracy: ± 0.02mm
Hysteresis: 0.02mm
Repeatability: 0.01mm
Stem diameter: 8mm
Contact point: Carbide ball, thread: M 2.5 x 0.45 mm
Scale: Capacitance type, ABSOLUTE linear encoder
330° rotatable display
IP Rating: IP42
Origin ABS Zero
Flat back
Data output
Metric

Mitutoyo 543-725B (0.01mm) Flat Back Digital Indicator ID-C 0-25mm

Description

Related Products

Recently viewed

Product Information
Part Number	543-725B
Measuring Range	0-25.4mm
Resolution	.01mm
Accuracy	± .02mm
Unit of Measurement	Metric
Data Output	Yes
Measuring Force	1.8N
Type	Digital Indicator ID-C
Repeatability	.01mm
Hysteresis	.02mm
Stem	8mm
Stem	8mm
