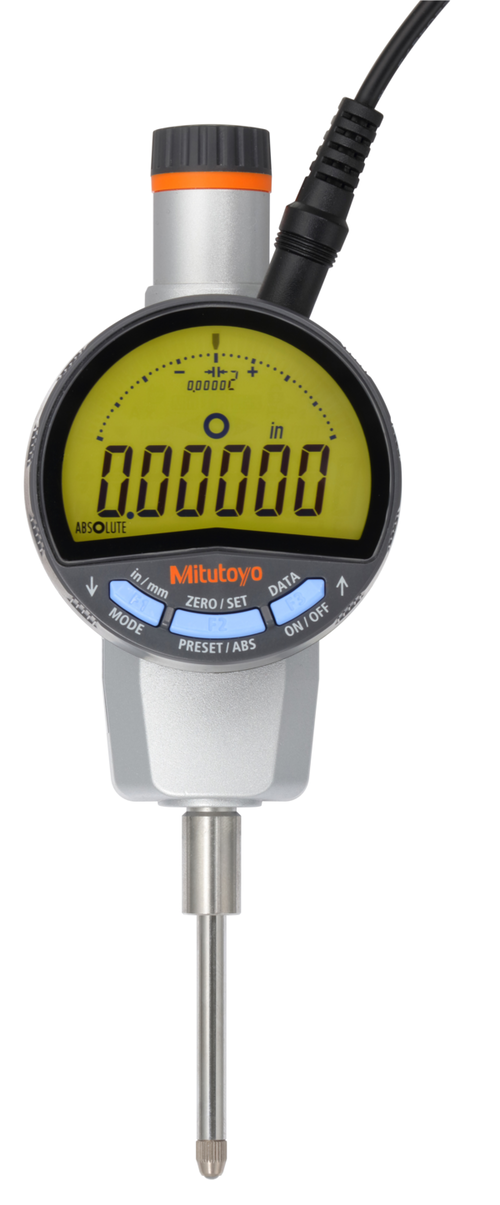

Mitutoyo 543-852E (0.001mm) ABSOLUTE Digimatic Multi Function Indicator ID-F 0-25mm (0-1″)

Roll over image to zoom in Click on image to zoom

Mitutoyo 543-852E (0.001mm) ABSOLUTE Digimatic Multi Function Indicator ID-F 0-25mm (0-1″)

Name: Mitutoyo 543-852E (0.001mm) ABSOLUTE Digimatic Multi Function Indicator ID-F 0-25mm (0-1″)
Brand: Mitutoyo
SKU: 543-852D
Price: 705.36 EUR
Availability: InStock

MitutoyoSKU: 543-852D

Price:

€705.36 €966.25

Quantity:

This is a superior multifunction indicator.

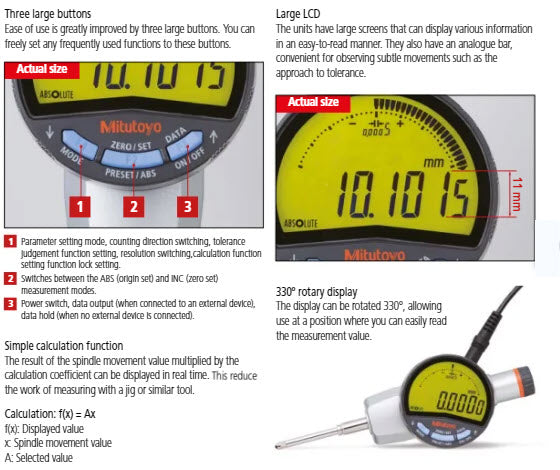

The ABSOLUTE Digimatic Indicator ID-F offers you the following benefits:

Bidirectional Digimatic S1 interface
Red/Green LCD backlight provides you with visual GO/±NG tolerance judgement
Analogue bar-graph display
MAX/MIN/RANGE (runout value) function with a frequency of 500 times/s
External power supply via AC-Adapter
High accuracy and 0,5 µm digital step

Specification

Digital/Analog:	Digital
Inch-Metric:	Inch/Metric
Delivered:	Including spindle lifting handle, AC-adapter, certificate of inspection
Range:	1"/25,4 mm
Digital step:	0.00002"/0.00005"/0.0001"/0.0005"/0.0005 mm/0.0001 mm/0.01 mm
Max. Permissible Error E MPE (Total Range):	±0.0001"/0.0025 mm
H MPE (Hysteresis):	0.00008"/0.002 mm
R MPE (Repeatability):	0.00008"/0.002 mm
Measuring force MPL:	≤1.8 N
Protection:	IP30
Type:	ASME/ANSI/AGD Standard
Display:	LCD with red/green backlight, character height 11 mm
Max. response speed:	Unlimited
Measurement frequency (MAX/MIN/RANGE):	500 times/s
Alarm:	Setting errors, sensor error, display overflow a.s.o.
Stem ∅:	9.52 mm
Contact point:	Carbide ball, thread: No.4-48UNF
Power supply:	AC adapter 5,9V, 2A
DATA/HOLD:	Yes
Digimatic data output:	Yes
Digimatic S1 Bidirectional interface:	Yes
ON/OFF:	Yes
Analog bar resolution switchable:	Yes
Function lock:	Yes
GO/±NG judgement:	Yes
ABS / INC (INC ZERO):	Yes
Analog bar resolution selection:	Yes
Auto Power OFF setting:	Yes
Selectable resolution:	Yes
Calculation function (with formula):	Yes
Customizing keys:	Yes
Counting direction switchable:	Yes
Inch/Metric switchable:	Yes

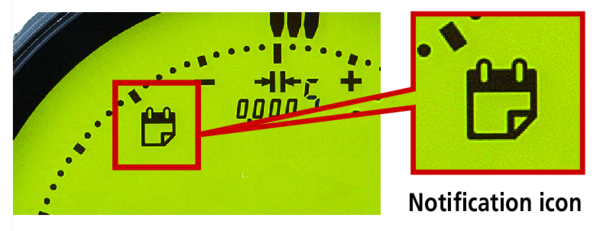

Calibration warning function:	Yes
Digital step switchable:	Yes
Digital Scale:	Electrostatic capacitance type absolute linear encoder
Mass:	240 g
Plunger Direction:	Up to the horizontal direction

Product Information
Part Number	543-852D
Measuring Range	0-25mm/0-1"
Resolution	0.0005 mm/0.001 mm/0.01 mm/ 0.00002"/0.00005"/0.0001"/0.0005"
Accuracy	["±.003mm/.00012\""]
Unit of Measurement	Metric Inch
Data Output	Yes
IP Rating	["IP30"]
Measuring Force	≤1.8N
Repeatability	.002mm/.00008"
Hysteresis	.002mm/.00008"
Stem	9.52mm/3/8"
Back	Flat back
Power Supply	AC adapter 5,9V, 2A
Stem	9.52mm/3/8"
