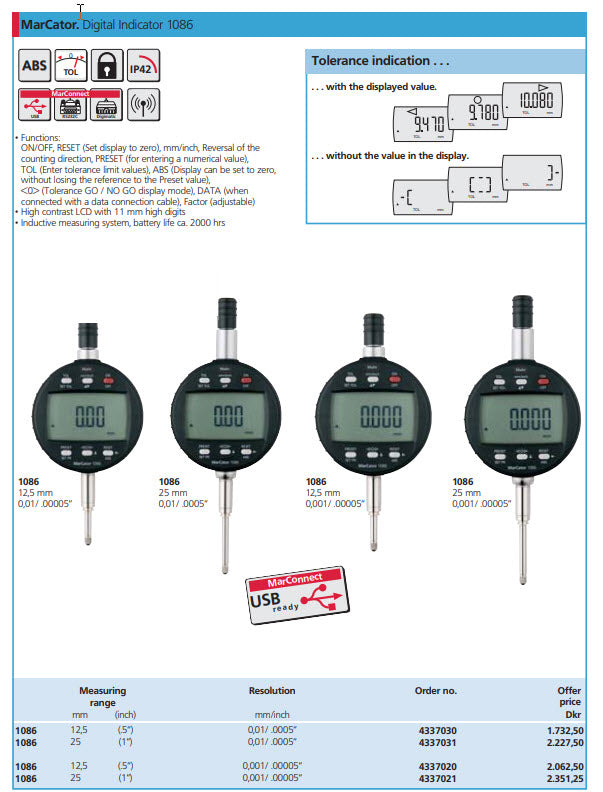

Mahr 4337020 Digital Indicators 1086 Accuracy:0.005mm Model:1086 Range: 12.5mm/.5" Repeatability: 0.002mm Resolution: 0.001mm/0.00005" Stem: 8mm

Roll over image to zoom in Click on image to zoom

Mahr 4337020 Digital Indicators 1086 Accuracy:0.005mm Model:1086 Range: 12.5mm/.5" Repeatability: 0.002mm Resolution: 0.001mm/0.00005" Stem: 8mm

Name: Mahr 4337020 Digital Indicators 1086 Accuracy:0.005mm Model:1086 Range: 12.5mm/.5" Repeatability: 0.002mm Resolution: 0.001mm/0.00005" Stem: 8mm
Brand: Mahr
SKU: 4337020
Price: 280.0 EUR
Availability: InStock

MahrSKU: 4337020

Price:

€280.00 €467.00

Quantity:

Integrated tolerance function with clear representation.
Manufactured after the RoHS guideline on the restriction of dangerous materials in electrical appliances.
MarConnect data communication over USB, Opto RS232C or Digimatic.
USB direct data output.
Large 11mm digit display, tolerance, preset, and Go/NoGo display.
Button lockout feature, ABS zero set, on/off, inch/metric.

Brand	MAHR FEDERAL
Model #	4337021
Measuring Range	0 - .5"
Type	MarCator 1086 USB Indicator
Data Output	USB direct data output.
Display Type	Large 11mm digit display, tolerance, preset,and Go
Prop. 65	Yes
Repeatability	.0001"
Weight	18 lbs.
Country of Origin	GERMANY

Product Information
Part Number	4337020
Measuring Range	12.5mm/0.5"
Accuracy	+/-.003mm/.00015"
Unit of Measurement	Metric Inch
Measuring Force	0.8-2N
Stem Diameter	8mm

Mahr 4337020 Digital Indicators 1086 Accuracy:0.005mm Model:1086 Range: 12.5mm/.5" Repeatability: 0.002mm Resolution: 0.001mm/0.00005" Stem: 8mm
