Digital Indicator High Accuracy ID-H, 30.4mm/1.2", BS AC-Adapter, .0005mm/.00002" 543-562

Roll over image to zoom in Click on image to zoom

Digital Indicator High Accuracy ID-H, 30.4mm/1.2", BS AC-Adapter, .0005mm/.00002" 543-562

Name: Digital Indicator High Accuracy ID-H, 30.4mm/1.2", BS AC-Adapter, .0005mm/.00002" 543-562
Brand: Mitutoyo
SKU: 543-562E
Price: 698.0 EUR
Availability: InStock

MitutoyoSKU: 543-562E

Price:

€698.00 €930.12

Quantity:

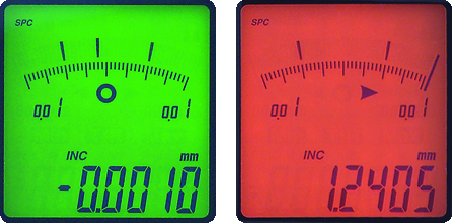

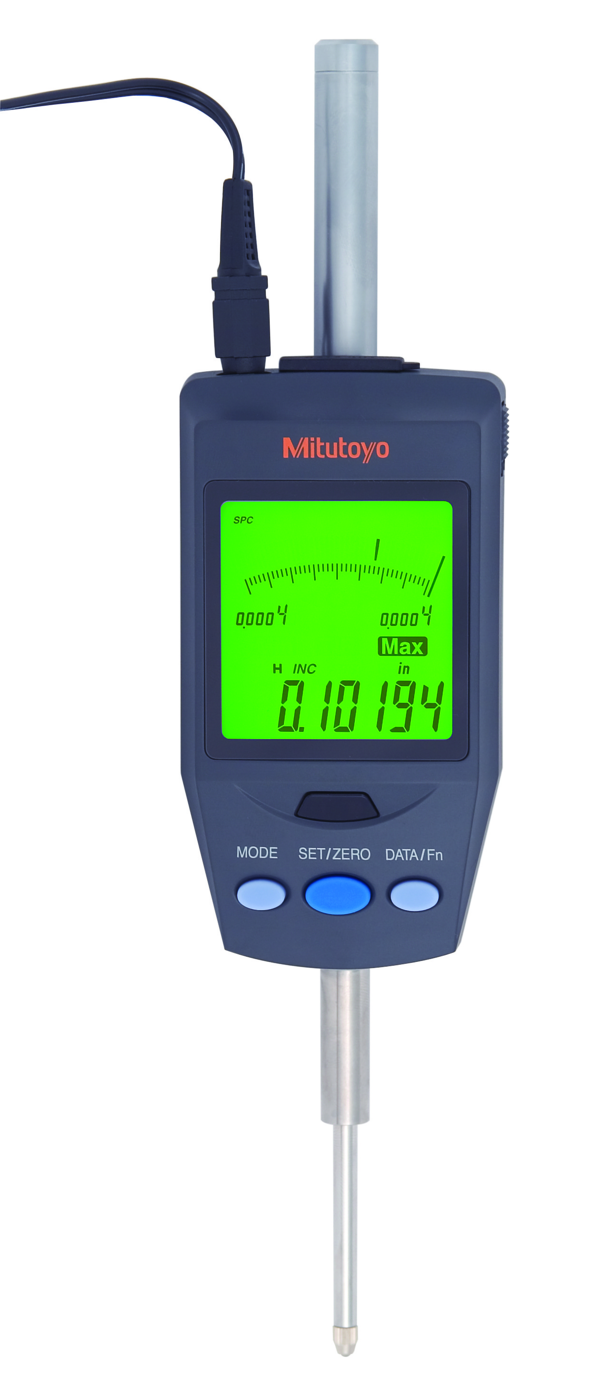

A Mitutoyo back-lit screen type digital indicator, mains-powered. Extensive functionality includes an analogue bar scale, switchable extra-high resolution, colour-coded tolerance judgement, Max/Min data hold, Runout measurement and function lock. Digimatic data output.

Specification

Digital/Analog:	Digital
Inch-Metric:	Inch/Metric
Functions:	ANSI/AGD type
Delivered:	Including AC-Adapter, spindle lifting handle, certificate of inspection

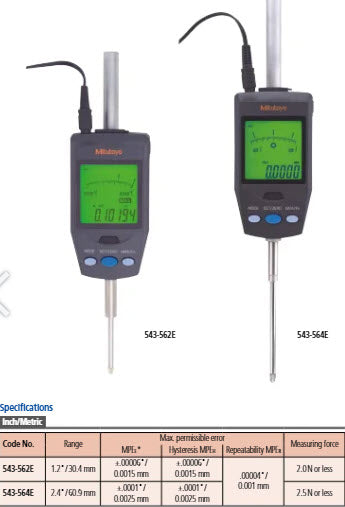

Range:	1.2"/30.4 mm
Digital step:	0.00002"/0.00005"/0.0001"/0.0005 mm/0.001 mm
Max. Permissible Error E MPE (Total Range):	±0.00006"/0.0015 mm
H MPE (Hysteresis):	0.00006"/0.0015 mm
R MPE (Repeatability):	0.00004"/0.001 mm
Measuring force MPL:	≤2 N
Protection:	IP30
Display:	LCD with red/green backlight, character height 9.5 mm
Max. response speed:	1000 mm/s
Alarm:	Counting value composition error, overflow error, tolerance setting error
Stem ∅:	9.52 mm
Contact point:	Carbide ball, thread: No.4-48UNF
Power supply:	AC adapter 6 V DC, 2A
Remarks:	RS-232 input / output is applicable with appropriate connecting cable (1m: 21EAA130 or 2m: 21EAA131)
DATA/HOLD:	Yes
Digimatic data output:	Yes
ON/OFF:	Yes
Analog bar resolution switchable:	Yes
Function lock:	Yes
GO/±NG judgement:	Yes
RS-232C Output/Input:	Yes
RS-232C Input*:	Yes
ZERO SET:	Yes
Selectable resolution:	Yes
Counting direction switchable:	Yes
Inch/Metric switchable:	Yes
Digital Scale:	Photoelectric linear encoder

Product Information
Part Number	543-562E
Measuring Range	30mm
Resolution	.0005mm,.001mm/.00002", .00005", .0001"
Accuracy	["±.0015mm/.00006\""]
Unit of Measurement	Metric Inch
Data Output	Yes
Measuring Force	≤2N
Repeatability	.001mm/.00004"
Hysteresis	.0015mm/.00006"
Stem	8mm
Back	Flat back
Power Supply	6V DC via AC adaptor
Stem	8mm
