Mitutoyo Series 543-552E IDF ABS Digimatic model Accuracy:0.003mm Meas. Force:1.8N No.:543-552E Range:25mm/1" Resolution (switchable):0.001mm/0.01mm (0.00005"/0.0005"/0.0001"/0.001")
Mitutoyo Series 543-552E IDF ABS Digimatic model Accuracy:0.003mm Meas. Force:1.8N No.:543-552E Range:25mm/1" Resolution (switchable):0.001mm/0.01mm (0.00005"/0.0005"/0.0001"/0.001")
Mitutoyo Series 543-552E IDF ABS Digimatic model Accuracy:0.003mm Meas. Force:1.8N No.:543-552E Range:25mm/1" Resolution (switchable):0.001mm/0.01mm (0.00005"/0.0005"/0.0001"/0.001")
Mitutoyo Series 543-552E IDF ABS Digimatic model Accuracy:0.003mm Meas. Force:1.8N No.:543-552E Range:25mm/1" Resolution (switchable):0.001mm/0.01mm (0.00005"/0.0005"/0.0001"/0.001")
Mitutoyo Series 543-552E IDF ABS Digimatic model Accuracy:0.003mm Meas. Force:1.8N No.:543-552E Range:25mm/1" Resolution (switchable):0.001mm/0.01mm (0.00005"/0.0005"/0.0001"/0.001")
Mitutoyo Series 543-552E IDF ABS Digimatic model Accuracy:0.003mm Meas. Force:1.8N No.:543-552E Range:25mm/1" Resolution (switchable):0.001mm/0.01mm (0.00005"/0.0005"/0.0001"/0.001")
Mitutoyo Series 543-552E IDF ABS Digimatic model Accuracy:0.003mm Meas. Force:1.8N No.:543-552E Range:25mm/1" Resolution (switchable):0.001mm/0.01mm (0.00005"/0.0005"/0.0001"/0.001")
Roll over image to zoom in Click on image to zoom
Mitutoyo Series 543-552E IDF ABS Digimatic model Accuracy:0.003mm Meas. Force:1.8N No.:543-552E Range:25mm/1" Resolution (switchable):0.001mm/0.01mm (0.00005"/0.0005"/0.0001"/0.001")Mitutoyo Series 543-552E IDF ABS Digimatic model Accuracy:0.003mm Meas. Force:1.8N No.:543-552E Range:25mm/1" Resolution (switchable):0.001mm/0.01mm (0.00005"/0.0005"/0.0001"/0.001")Mitutoyo Series 543-552E IDF ABS Digimatic model Accuracy:0.003mm Meas. Force:1.8N No.:543-552E Range:25mm/1" Resolution (switchable):0.001mm/0.01mm (0.00005"/0.0005"/0.0001"/0.001")Mitutoyo Series 543-552E IDF ABS Digimatic model Accuracy:0.003mm Meas. Force:1.8N No.:543-552E Range:25mm/1" Resolution (switchable):0.001mm/0.01mm (0.00005"/0.0005"/0.0001"/0.001")Mitutoyo Series 543-552E IDF ABS Digimatic model Accuracy:0.003mm Meas. Force:1.8N No.:543-552E Range:25mm/1" Resolution (switchable):0.001mm/0.01mm (0.00005"/0.0005"/0.0001"/0.001")Mitutoyo Series 543-552E IDF ABS Digimatic model Accuracy:0.003mm Meas. Force:1.8N No.:543-552E Range:25mm/1" Resolution (switchable):0.001mm/0.01mm (0.00005"/0.0005"/0.0001"/0.001")Mitutoyo Series 543-552E IDF ABS Digimatic model Accuracy:0.003mm Meas. Force:1.8N No.:543-552E Range:25mm/1" Resolution (switchable):0.001mm/0.01mm (0.00005"/0.0005"/0.0001"/0.001")

Mitutoyo Series 543-552E IDF ABS Digimatic model Accuracy:0.003mm Meas. Force:1.8N No.:543-552E Range:25mm/1" Resolution (switchable):0.001mm/0.01mm (0.00005"/0.0005"/0.0001"/0.001")

Mitutoyo SKU: 543-554E
List price: €772.00 Offer price: €598.00 Excluding VAT
Why Choose Inspection Equipment
Fast Dispatch Orders dispatched quickly from our extensive warehouse stock.
46 Years of Experience Established in 1980 with decades of metrology expertise.
Technical Support Experienced specialists available before and after your purchase.
25,000+ Products One of Ireland’s largest ranges of precision measurement equipment.
Expert Advice We will help you select the right instrument for your application.
Need help choosing the right product?
Features
  • With the ABSOLUTE Linear Encoder technology, once the measurement reference point has been preset it will not be lost when the power is turned on.

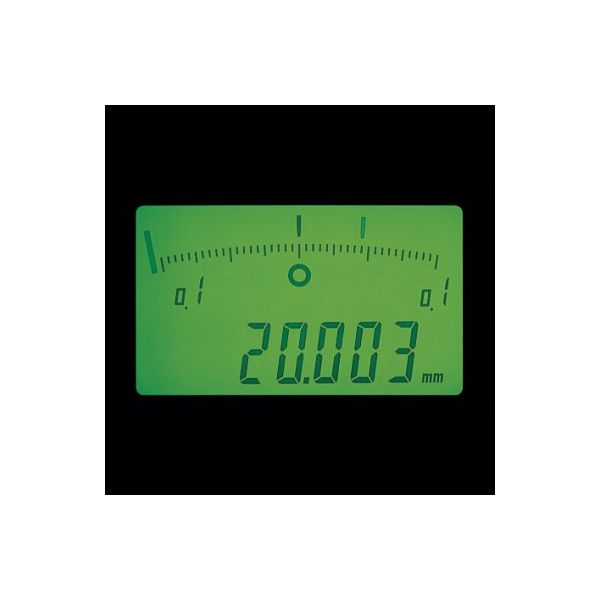

  • GO/±NG judgment is performed by setting the upper and lower tolerances. If a judgment result is out of tolerance, the display backlighting changes from green to red, so tolerance judgment can be made at a glance.
  • An analog bar indicator has been integrated to handle upper/lower limit approaching and zero approaching. It enhances the ease of operation in the same manner as a dial indicator. The display range of the analog bar can be changed.
  • With SPC data output.

    Technical Data
    Accuracy: Refer to the list of specifications.
    Resolution: 0.01mm/0.001mm or .00005”/.0001”/.0005”/.001”/0.001mm/0.01mm
    Display: LCD
    Length standard: ABSOLUTE electrostatic capacitance type linear encoder
    Max. response speed: Unlimited
    Measuring force: 1.8N/2.3N* or less (*50mm range models)
    Power supply: 9V DC (via AC adaptor)

    Function
    Origin-set/Preset, Zeroset, GO/±NG judgment, Max/Min value
    hold, Runout measurement, Resolution switching, Counting
    direction switching, Power ON/OFF, Data output,
    inch/mm conversion (on inch/metric models only)
    Alarm: Low voltage, Counting value composition error,
    Over-flow error, Tolerance limit setting error

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
