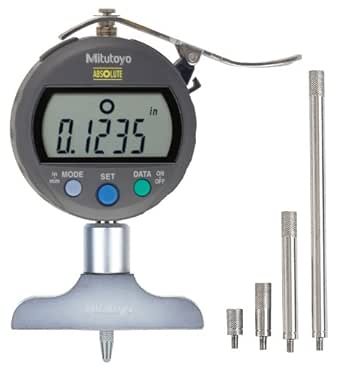

Mitutoyo Digital Depth Gauge 0-8", 0,0005", 63,5mm Base 547-217S
Roll over image to zoom in Click on image to zoom
Mitutoyo Digital Depth Gauge 0-8", 0,0005", 63,5mm Base 547-217S

Mitutoyo Digital Depth Gauge 0-8", 0,0005", 63,5mm Base 547-217S

Mitutoyo SKU: 547-217S
Price:
€396.00 €511.00
Why Choose Inspection Equipment
Fast Dispatch Orders dispatched quickly from our extensive warehouse stock.
46 Years of Experience Established in 1980 with decades of metrology expertise.
Technical Support Experienced specialists available before and after your purchase.
25,000+ Products One of Ireland’s largest ranges of precision measurement equipment.
Expert Advice We will help you select the right instrument for your application.
Need help choosing the right product?

Mitutoyo; Digital Depth Gauge

igital/Analog:
Digital
Inch-Metric:
Inch/Metric
Range:
0 - 8 "
Digital step:
0,0005"/ 0,01 mm
Stroke:
0.5 mm
Accuracy:
± 0,002"/± 20 µm
Base flatness:
0,0002"/ 5 µm
Scale:
Capacitance type ABSOLUTE linear encoder
Contact point:
Carbide ball, thread: # 4-48UNF
DATA/HOLD:
Yes
PRESET:
Yes
ON/OFF:
Yes
Lock function:
Yes
GO/±NG judgement:
Yes
MAX/MIN/RANGE:
Yes
ZERO/ABS:
Yes
ABS / INC (INC ZERO):
Yes
Alarm:
Low voltage, setting errors, sensor error, display overflow a.s.o.
Power supply:
1 battery CR2032 (3V)
Measuring force:
≤ 1.5 N
Battery life:
Approx. 7000 hours
Delivered:
Including box and extensions 0,5, 1, 2, 4", contact point 21JZA242
Mass:
280 g
Delivered:
Including box and extensions 0,5, 1, 2, 4", contact point 21JZA242
Analog bar resolution selection:
Yes
Auto Power OFF setting:
Yes
Calculation function (with formula):
Yes
Customizing keys:
Yes
Counting direction switchable:
Yes
Calibration warning function:
Yes

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
