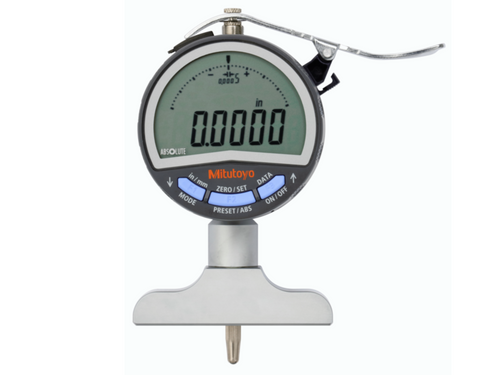

Mitutoyo Digital Depth Gauge 0-8", 0,00002", 63,5mm Base 547-257A

Roll over image to zoom in Click on image to zoom

Mitutoyo Digital Depth Gauge 0-8", 0,00002", 63,5mm Base 547-257A

Name: Mitutoyo Digital Depth Gauge 0-8", 0,00002", 63,5mm Base 547-257A
Brand: Mitutoyo
SKU: 547-257A
Price: 506.44 EUR
Availability: InStock

MitutoyoSKU: 547-257A

Price:

€506.44 €693.75

Quantity:

Mitutoyo; Digital Depth Gauge

Digital/Analog:	Digital
Inch-Metric:	Inch/Metric
Range:	0 - 8 "
Digital step:	0,00002"/0,0005 mm
Stroke:	0.5 mm
Accuracy:	± 0,0002"/± 5 µm
Base flatness:	0.00008"/ 2 µm
Scale:	Capacitance type ABSOLUTE linear encoder
Contact point:	Carbide ball, thread: # 4-48UNF
DATA/HOLD:	Yes
PRESET:	Yes
ON/OFF:	Yes
Lock function:	Yes
GO/±NG judgement:	Yes
MAX/MIN/RANGE:	Yes
ZERO/ABS:	Yes
ABS / INC (INC ZERO):	Yes
Alarm:	Low voltage, setting errors, sensor error, display overflow a.s.o.
Power supply:	1 battery CR2032 (3V)
Measuring force:	≤ 1.5 N
Battery life:	Approx. 7000 hours
Delivered:	Including box and extensions 0,5, 1, 2, 4", contact point 21JZA242
Mass:	285 g
Delivered:	Including box and extensions 0,5, 1, 2, 4", contact point 21JZA242
Analog bar resolution selection:	Yes
Auto Power OFF setting:	Yes
Calculation function (with formula):	Yes
Customizing keys:	Yes
Counting direction switchable:	Yes
Calibration warning function:	Yes

Product Information
Part Number	547-257A
Measuring Range	0-8"
Resolution	.00005mm/.00002"
Accuracy	["±5µm/.0002\""]
Accuracy	+/-.005mm/.0002"
Unit of Measurement	Metric Inch
Display Type	Digital
Items Per Set	4
Data Output	Yes
Type	Depth Indicator
Calibration Code	CAL16 B6

Mitutoyo Digital Depth Gauge 0-8", 0,00002", 63,5mm Base 547-257A

Description

Mitutoyo; Digital Depth Gauge
