Mitutoyo Digital Depth Gauge 0-8", 0,00002", 63,5mm Base 547-257S

Roll over image to zoom in Click on image to zoom

Mitutoyo Digital Depth Gauge 0-8", 0,00002", 63,5mm Base 547-257S

Name: Mitutoyo Digital Depth Gauge 0-8", 0,00002", 63,5mm Base 547-257S
Brand: Mitutoyo
SKU: 547-257A
Price: 502.0 EUR
Availability: InStock

MitutoyoSKU: 547-257A

Price:

€502.00 €668.67

Quantity:

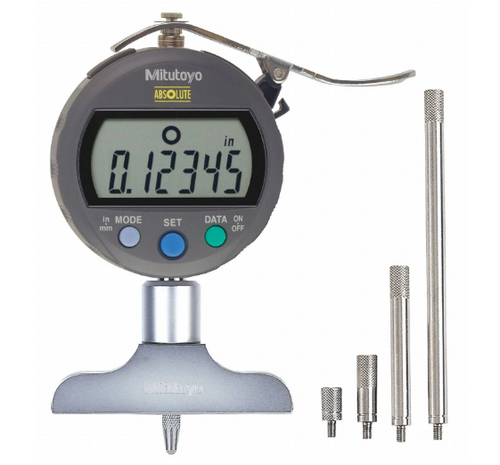

Mitutoyo ABSOLUTE Digimatic Depth Gage, 0-8”/0-200mm - 547-257S

Range	0 - 8” / 0-200mm
Accuracy	± 0,0002"
Base flatness	0.00008"
Base (WxT)	2.5”x.63”
Resolution	.00005” / 0.001mm
Mass	290 g
Stroke	.5” / 12.7 mm
Power supply	1 battery SR-44
Scale	Capacitance type ABSOLUTE linear encoder
Measuring force	≤ 1.5 N
Alarm	Low voltage, counting value composition error, overflow error, tolerance limit setting error
Battery life	Approx. 7000 hours

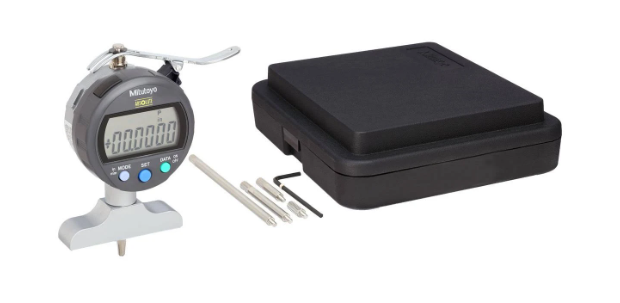

Delivered	Including Box and extensions 10, 20, 30 (2 pcs.), 100 mm, contact point 21JAA224
Contact point	Carbide ball
Lock function	Yes
PRESET	Yes
ZERO/ABS	Yes
DATA (output with cable) / HOLD (display value)	Yes
Digimatic data output	Yes
GO/±NG judgement	Yes
Counting direction switchable	Yes
Calculation function (with formula)	Yes
Digital/Analog	Digital
Inch-Metric	Inch/Metric

Product Information
Part Number	547-257A
Measuring Range	0-8"
Resolution	.00005mm/.00002"
Accuracy	["±5µm/.0002\""]
Accuracy	+/-.005mm/.0002"
Unit of Measurement	Metric Inch
Display Type	Digital
Items Per Set	4
Data Output	Yes
Type	Depth Indicator
Calibration Code	CAL16 B6

Mitutoyo Digital Depth Gauge 0-8", 0,00002", 63,5mm Base 547-257S

Description

Mitutoyo ABSOLUTE Digimatic Depth Gage, 0-8”/0-200mm - 547-257S
