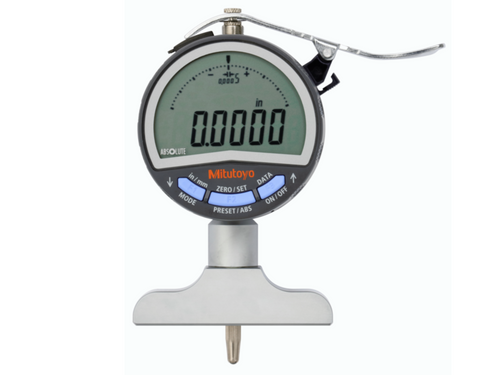

Mitutoyo Digital Depth Gauge 0-8", 0,0005", 63,5mm Base 547-217A

Roll over image to zoom in Click on image to zoom

Mitutoyo Digital Depth Gauge 0-8", 0,0005", 63,5mm Base 547-217A

Name: Mitutoyo Digital Depth Gauge 0-8", 0,0005", 63,5mm Base 547-217A
Brand: Mitutoyo
SKU: 547-217A
Price: 433.44 EUR
Availability: InStock

MitutoyoSKU: 547-217A

Price:

€433.44 €593.75

Quantity:

Mitutoyo; Digital Depth Gauge

igital/Analog:	Digital
Inch-Metric:	Inch/Metric
Range:	0 - 8 "
Digital step:	0,0005"/ 0,01 mm
Stroke:	0.5 mm
Accuracy:	± 0,002"/± 20 µm
Base flatness:	0,0002"/ 5 µm
Scale:	Capacitance type ABSOLUTE linear encoder
Contact point:	Carbide ball, thread: # 4-48UNF
DATA/HOLD:	Yes
PRESET:	Yes
ON/OFF:	Yes
Lock function:	Yes
GO/±NG judgement:	Yes
MAX/MIN/RANGE:	Yes
ZERO/ABS:	Yes
ABS / INC (INC ZERO):	Yes
Alarm:	Low voltage, setting errors, sensor error, display overflow a.s.o.
Power supply:	1 battery CR2032 (3V)
Measuring force:	≤ 1.5 N
Battery life:	Approx. 7000 hours

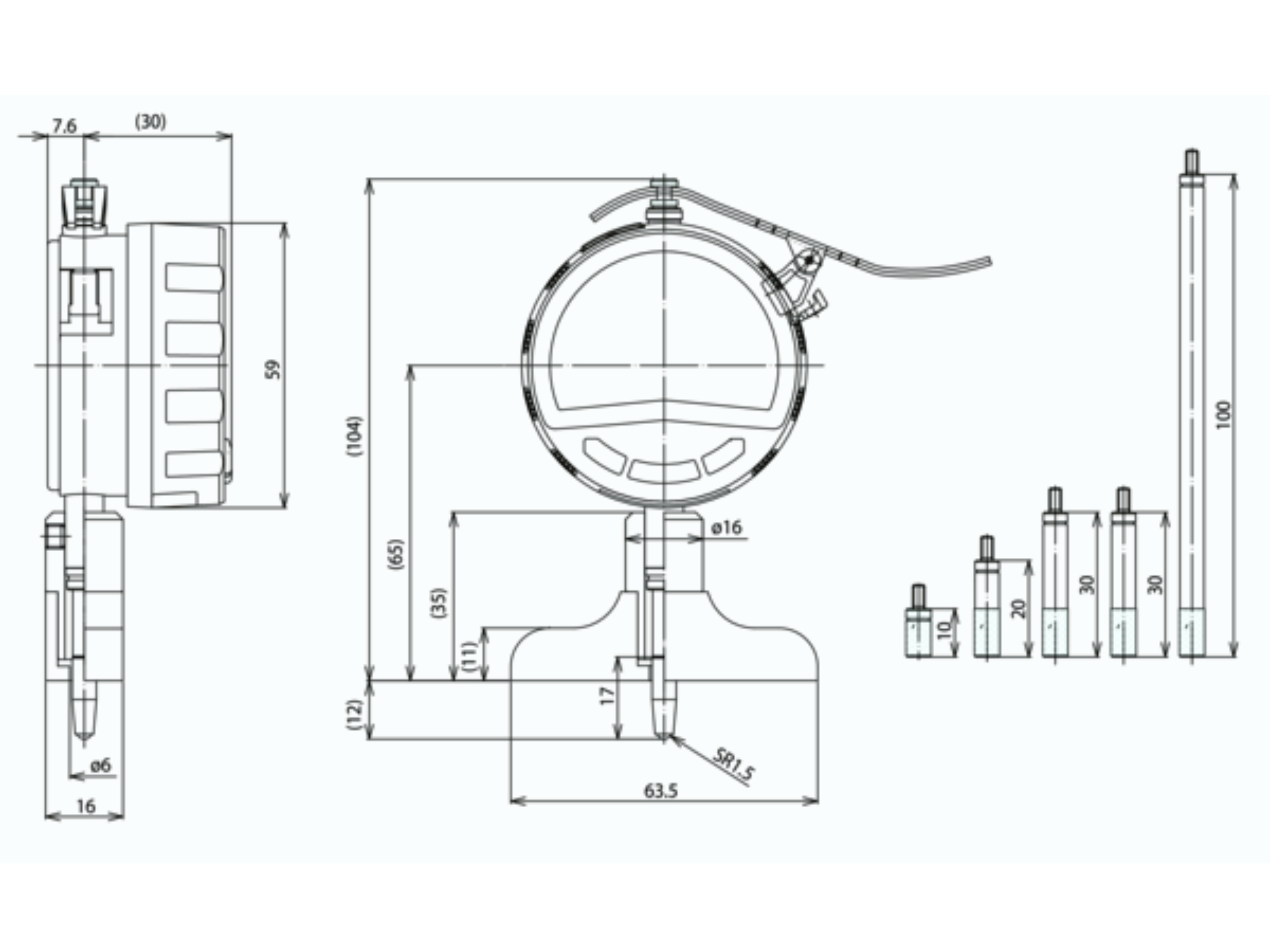

Delivered:	Including box and extensions 0,5, 1, 2, 4", contact point 21JZA242
Mass:	280 g
Delivered:	Including box and extensions 0,5, 1, 2, 4", contact point 21JZA242
Analog bar resolution selection:	Yes
Auto Power OFF setting:	Yes
Calculation function (with formula):	Yes
Customizing keys:	Yes
Counting direction switchable:	Yes
Calibration warning function:	Yes

Product Information
Part Number	547-217A
Measuring Range	0-8"
Resolution	.01mm/.0005"
Accuracy	["±20µm/.001\""]
Accuracy	+/-.020mm/.001"
Unit of Measurement	Metric Inch
Display Type	Digital
Items Per Set	4
Type	Depth Indicator
Calibration Code	CAL16 B6
