Lever-Type Dial Indicator 0.8mm 0.01mm Ø40mm 513-404-10A

Roll over image to zoom in Click on image to zoom

Lever-Type Dial Indicator 0.8mm 0.01mm Ø40mm 513-404-10A

Name: Lever-Type Dial Indicator 0.8mm 0.01mm Ø40mm 513-404-10A
Brand: Mitutoyo
SKU: 513-404-10A
Price: 98.55 EUR
Availability: InStock

MitutoyoSKU: 513-404-10A

Price:

€98.55 €135.00

Quantity:

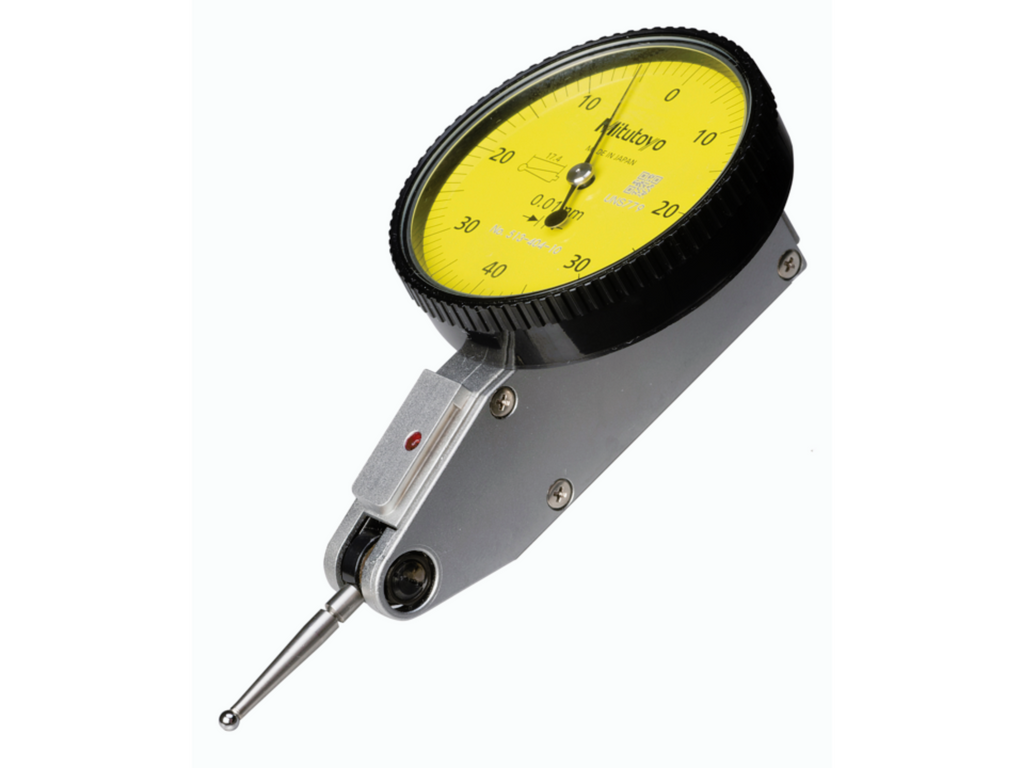

DescriptionThis is a Dial Test Indicator (Lever Type) which offers you the following benefits:

Drastically enhanced durability, sensitivity and visibility.
Glare-free flat crystal face allows easy reading of graduations.
O-ring seal on the bezel has the effect of providing smooth rotation and prevents dust and oil from penetrating through to the dial face.
The stylus length is on the dial face to reorder a replacement
Multi-layer coatings on the crystal.

Product Information
Part Number	513-404-10A
Measuring Range	0.8mm
Resolution	0.01mm
Graduation	.01mm
Accuracy	.006mm
Unit of Measurement	Metric
Measuring Force	≤0.3N
Type	Horizontal
Length	20.9mm
Repeatability	.003mm

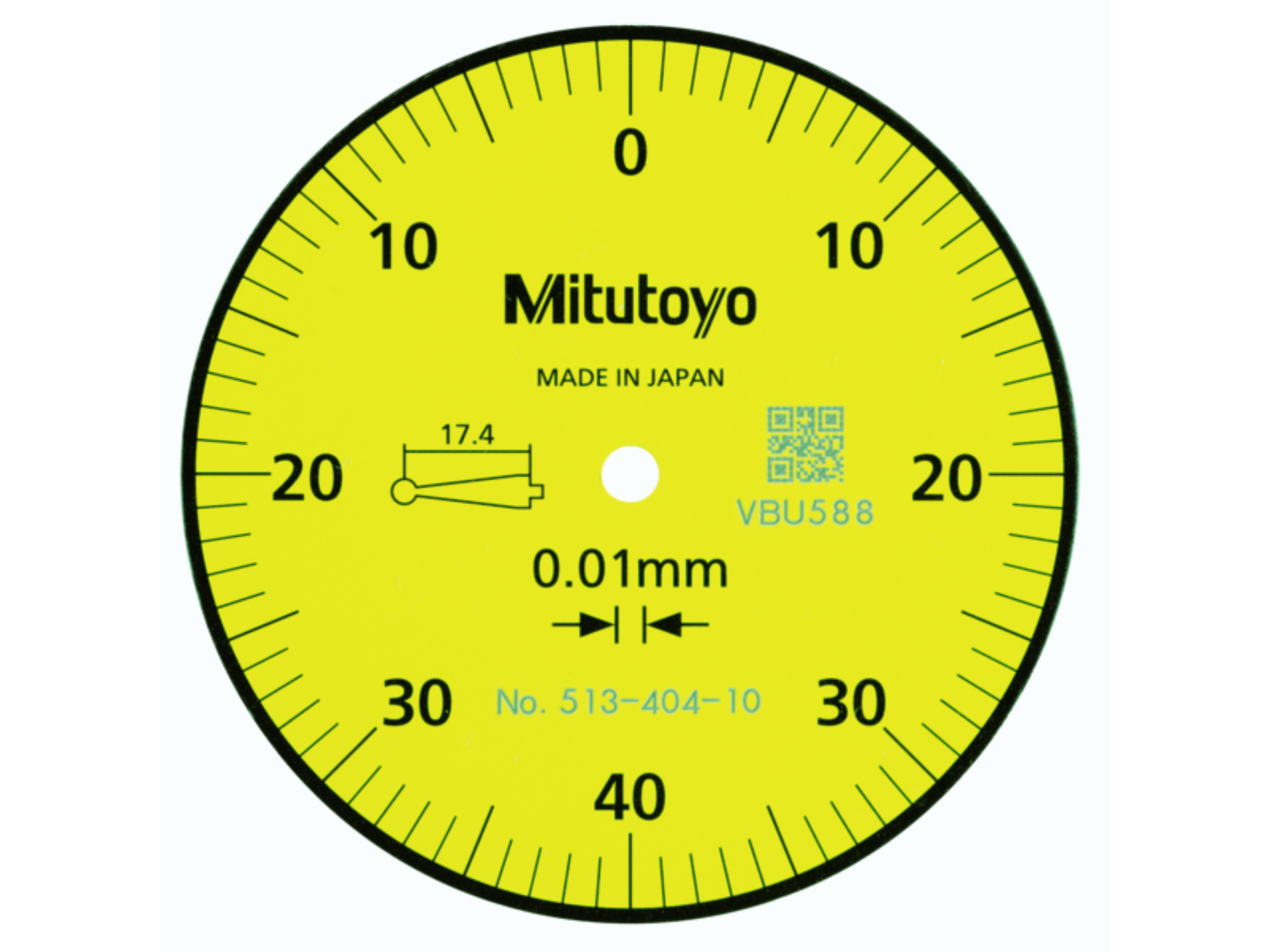

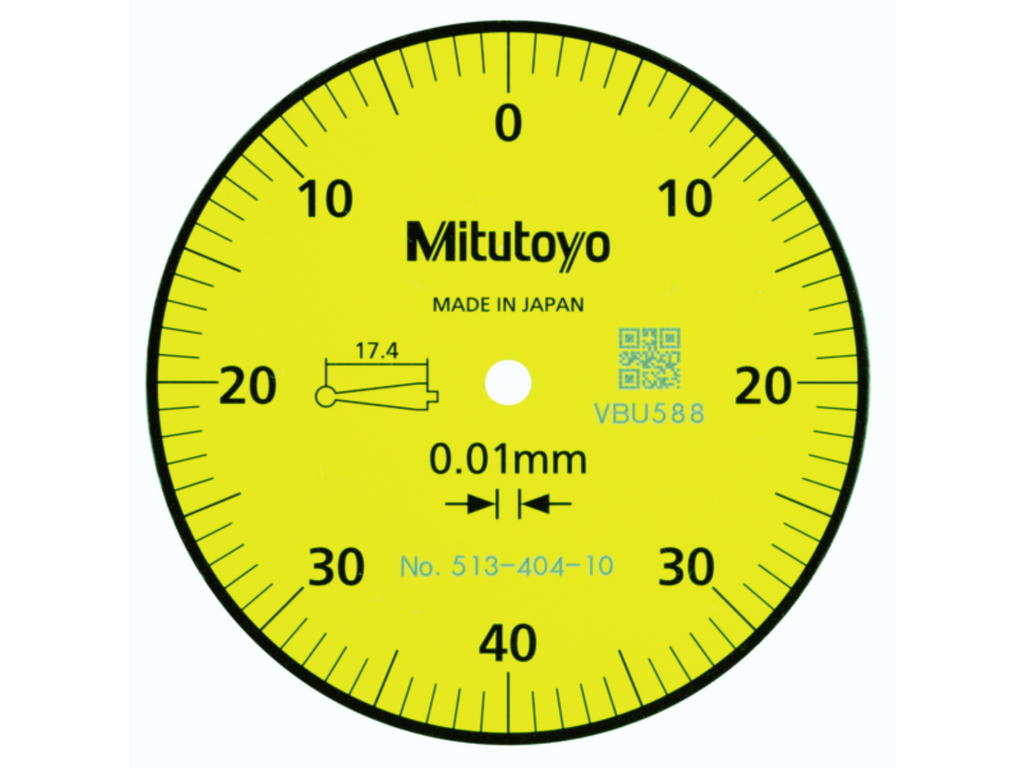

Dial Reading	0-40-0
Dial Face Size Ø	40mm
Hysteresis	.003mm
Calibration Code	CAL14 B1

Digital/Analog:	Analog
Inch-Metric:	Metric

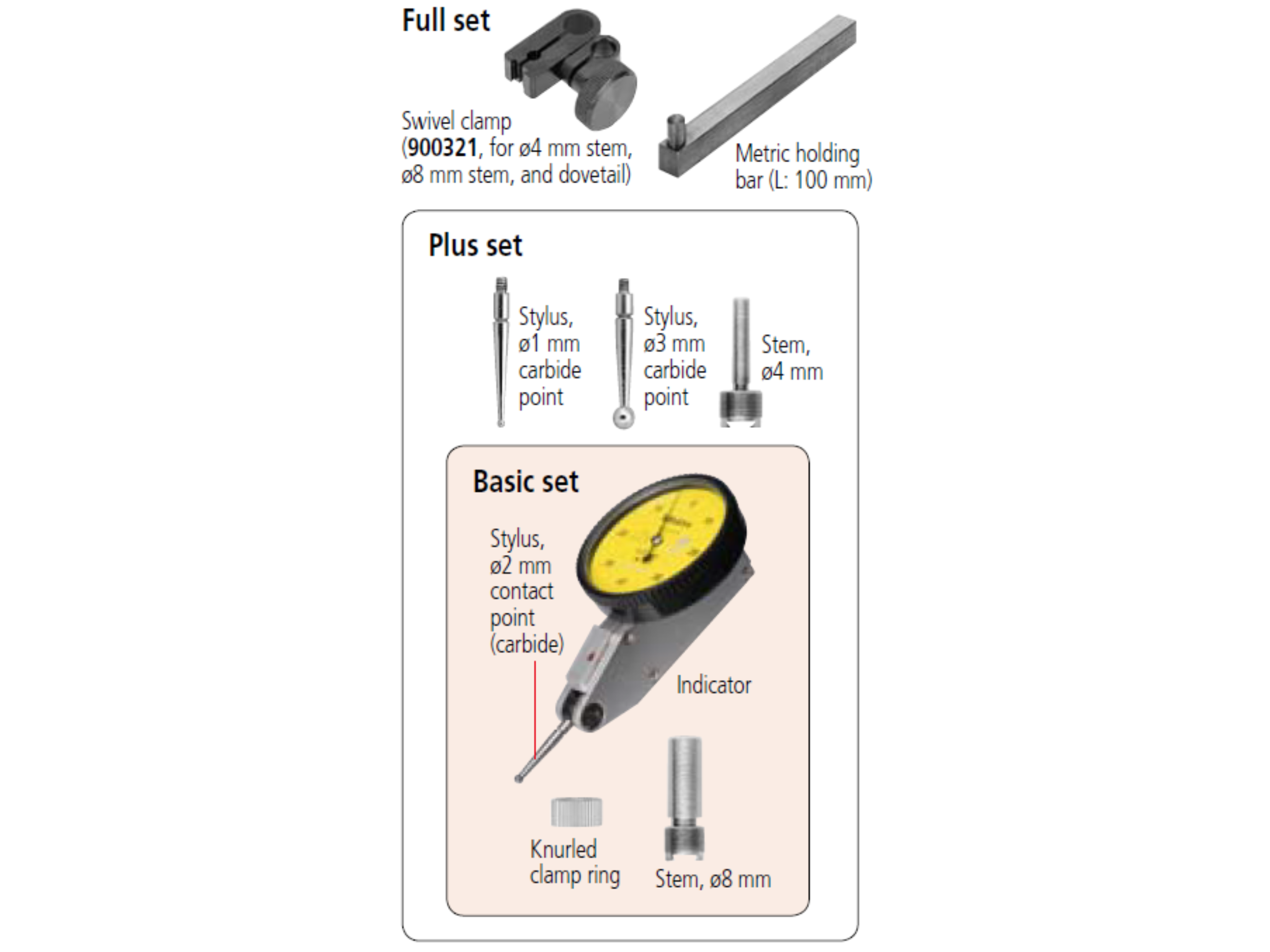

Type:	Plus set
Delivered:	In a box with stem ø8/4 mm, stylus ø1/2/3 mm
Range:	0.8 mm
Graduation:	0.01 mm
MPE any 10 scale divisions:	5 µm
MPE any 1/2 revolution:	6 µm
MPE measuring range:	8 µm
H MPE (Hysteresis):	3 µm
R MPE (Repeatability):	3 µm
Carbide stylus tip ø2 mm No.:	103006
Mass:	45 g
Contact point:	Thread M 1.7 x 0.35
