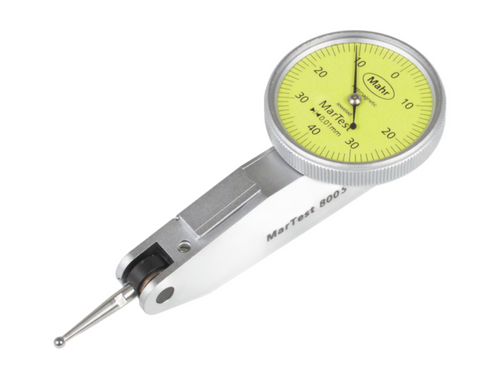

MarTest 800S Lever-Type DTI 4305200
Specification
- Measuring range mm ± 0.4
- Product type 800 S
- Graduation value mm 0.01
- Standard DIN 2270
- Figure on dial face 40-0-40
- Range per rev. in mm 0.8 mm
- Span of error fe (µm) 10 µm
- Total span of error fges (µm) 13 µm
- Measuring value hysteresis fu (µm) 3 µm
- Partial measuring range ft (µm) 5 µm
- Repeatability fw (µm) 3 µm
- Measuring force 0.15 N
- Scale diameter 27.5 mm
