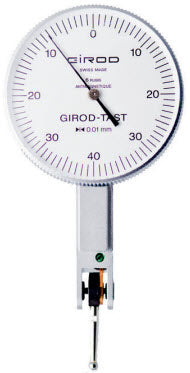

Girod Horizontal Indicator GT1452, Graduation: .01mm, Range: 0.8mm, Reading: 0-40-0, Face 37mm, Stylus 12mm, DIN 2270
Girod Horizontal Indicator GT1452, Graduation: .01mm, Range: 0.8mm, Reading: 0-40-0, Face 37mm, Stylus 12mm, DIN 2270
Girod Horizontal Indicator GT1452, Graduation: .01mm, Range: 0.8mm, Reading: 0-40-0, Face 37mm, Stylus 12mm, DIN 2270
Roll over image to zoom in Click on image to zoom
Girod Horizontal Indicator GT1452, Graduation: .01mm, Range: 0.8mm, Reading: 0-40-0, Face 37mm, Stylus 12mm, DIN 2270Girod Horizontal Indicator GT1452, Graduation: .01mm, Range: 0.8mm, Reading: 0-40-0, Face 37mm, Stylus 12mm, DIN 2270Girod Horizontal Indicator GT1452, Graduation: .01mm, Range: 0.8mm, Reading: 0-40-0, Face 37mm, Stylus 12mm, DIN 2270

Girod Horizontal Indicator GT1452, Graduation: .01mm, Range: 0.8mm, Reading: 0-40-0, Face 37mm, Stylus 12mm, DIN 2270

Girod SKU: GT 1453
Price: €88.00 Excluding VAT


Manufactured in Switzerland

High sensitivity repeatability and accuracy. All Girod-Tast indicators meet or exceed Federal or DIN specifications or other national standards. All Girod-Tast indicators have proven reliability durability and modern design features. Unaffected by magnetic fields. Automatic reversing contact point with constant clockwise rotation. Easy and error-free reading by only one revolution of the hand. Adjustable bezel and dial. Fully jeweled completely independent and interchangeable movement. Easily and quickly removed and replaced for maintenance. Rugged one-piece housing provided with 3 dovetails : top back and front ; corrosion resistant with satin chrome finish. Contact point swivel supported in precision ball bearings. Designed for universal applications. Well-suited for workshop use. Interchangeable carbide contact point swivels over 240
Girod Horizontal Indicator GT1452, Graduation: .01mm, Range: 0.8mm
Style of Indicator Lever Horizontal Test Indicators Metric Basic Set
Face Diameter 37mm
Measurement units Metric
Measuring Range .8mm
Graduation .01mm
Dial Reading 0-40-0
Stylus Length 12mm
scale 0-40-0
Accuracy .008mm
Digital, Non-Digital Non Digital
Measuring Force .15N

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
