MarCator 1075 R
Art. no. 4336020

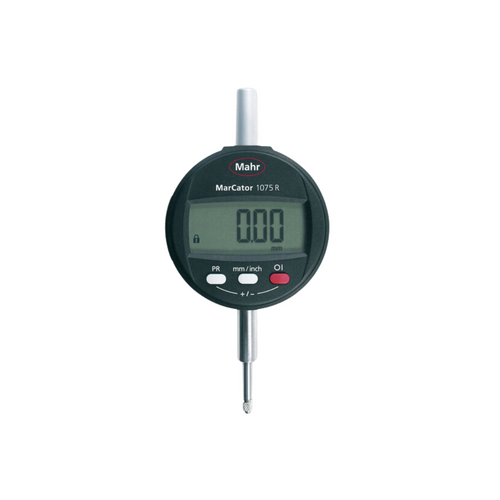

Digital dial indicator MarCator 1075 R
IP protection category: IP 52
Data interface: Digimatic, Opto RS-232C, USB
Factory standard
Measuring span in mm: 12.5mm
Resolution: 0.005mm/.0001"
Resolution inches: .0005"
Package contains: battery, test certificate, instruction manual, Cardboard box
The 4336020 Mahr Marcator 1075 R Electronic Indicators, 0-.5" / 0-12.5mm range is on sale at Gaging.com!

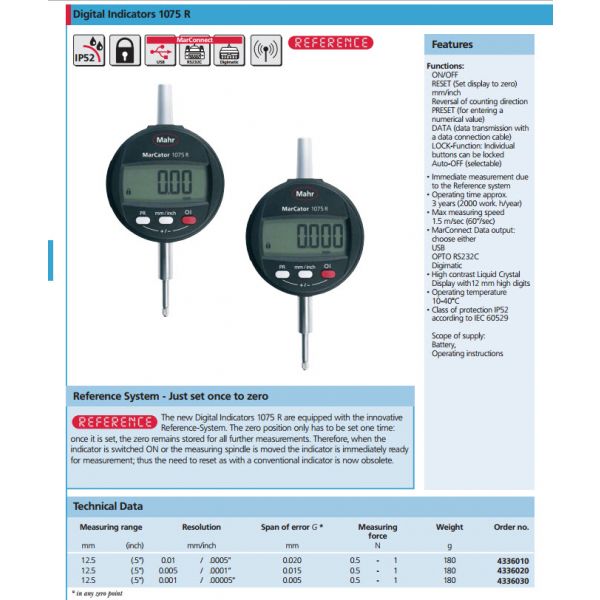

The new Digital Indicators 1075 R are equipped with the innovative Reference-System. The zero position only has to be set one time: once it is set, the zero remains stored for all further measurements. Therefore, when the indicator is switched ON or the measuring spindle is moved the indicator is immediately ready for measurement; thus the need to reset as with a conventional indicator is now obsolete.
Functions:
- ON/OFF
- PRESET (Set display to zero)
- mm/inch
- Reversal of counting direction
- PRESET (for entering a numerical value)
- DATA (data transmission with a data connection cable)
- LOCK-Function: Individual buttons can be locked
- Auto-OFF (selectable)
- Immediate measurement due to the Reference system
- Operating time approx. 3 years (2000 work. h/year)
- Max measuring speed 1.5 m/sec (60“/sec)
- MarConnect Data output: choose either USB, OPTO RS232C, Digimatic
- High contrast Liquid Crystal Display with12 mm high digits
- Operating temperature 10-40°C
- Class of protection IP52 according to IEC 60529
Scope of supply: Battery, Operating instructions
| Order No. | Model | Measuring Range | Resolution | Height of Digits |
| 4336020 | 1075 R | .5" / 12.5mm | .005mm/.0001" | 12mm / .47" |
