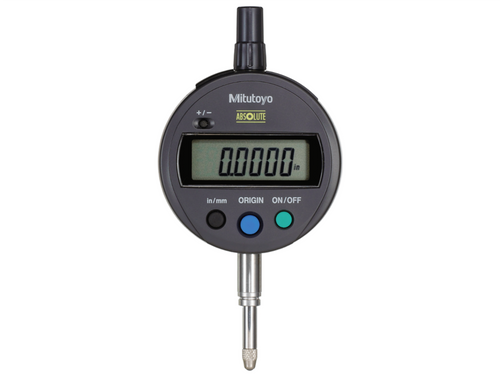

Digital Indicator ID-S Inch/Metric, 0,5", 0,0005", lug Back Plate 543-782

Mitutoyo SKU: 543-782
List price: €195.00 Offer price: €135.00 Excluding VAT
Why Choose Inspection Equipment
Fast Dispatch Orders dispatched quickly from our extensive warehouse stock.
46 Years of Experience Established in 1980 with decades of metrology expertise.
Technical Support Experienced specialists available before and after your purchase.
25,000+ Products One of Ireland’s largest ranges of precision measurement equipment.
Expert Advice We will help you select the right instrument for your application.
Need help choosing the right product?
This is a standard model of indicator that is reliable and easy to use.
The ABSOLUTE Digimatic Indicator ID-S offers you the following
benefits:
  • The ABSOLUTE sensor means you don‘t have to carry out origin setting every time you power it on, saving you time and hassle.
  • You can access all functions by using the large, user-friendly
    buttons on the front of the indicator.
  • Large character height of 9 mm provides good readability.
  • Exceptional battery life.
Specification
Digital/Analog:
Digital
Inch-Metric:
Inch/Metric
Delivered:
Including SR44 battery, certificate of inspection
Range:
0.5"/12.7 mm
Digital step:
0.0005"/0.01 mm
Max. Permissible Error
E MPE (Total Range):
±0.001"/0.02 mm
H MPE (Hysteresis):
0.001"/0.02 mm
R MPE (Repeatability):
0.0005"/0.01 mm
Measuring force MPL:
≤1.5 N
Protection:
IP42
Type:
EN ISO Standard
Mass:
140 g
Display:
LCD, character height 9 mm
Max. response speed:
Unlimited
Alarm:
Low voltage, sensor error, ABS data composition error
Stem ∅:
8 mm
Contact point:
Carbide ball, thread: M2.5x0.45
Power supply:
1 battery SR44
Battery life:
Approx. 18000 hours (0.001 mm type),
approx. 20000 hours (0.01 mm type)
Remarks:
This digital indicator has data output but no integrated data button so for USB Input Tool Direct Cable (see optional accessory) the USB-ITPAK Software is required.
Digimatic data output:
Yes
ON/OFF:
Yes
ORIGIN (ABS-Zero):
Yes
Counting direction switchable:
Yes
Inch/Metric switchable:
Yes
Digital Scale:
Electrostatic capacitance type absolute linear encoder

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
