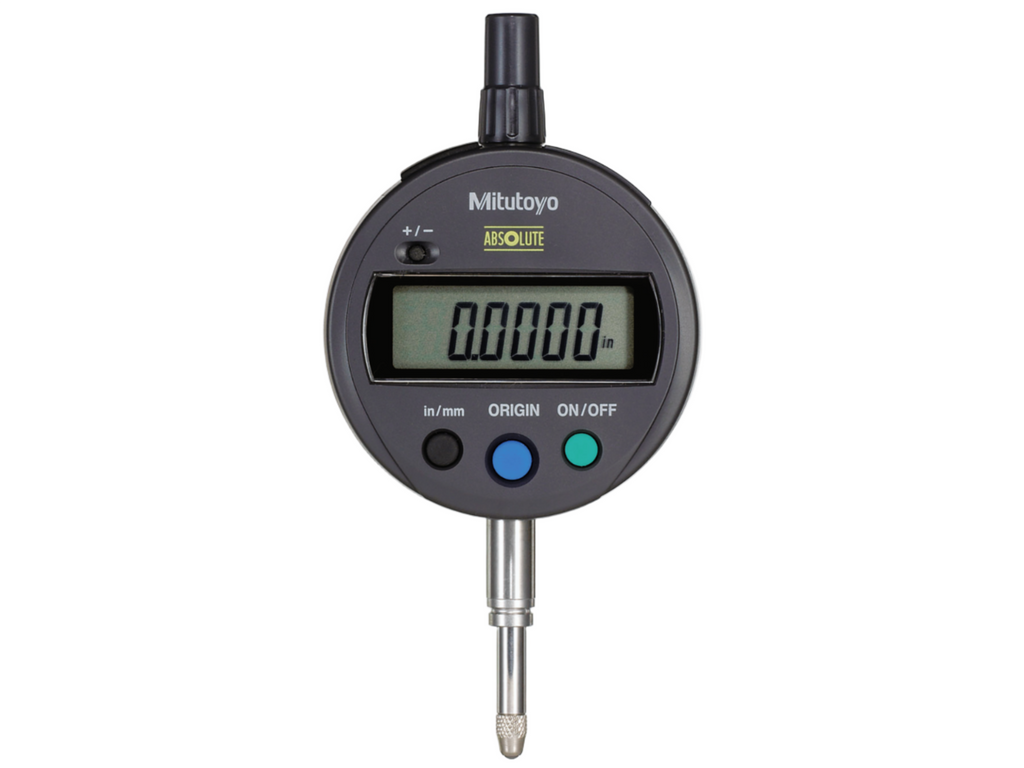

Digital Indicator ID-S Inch/Metric, 0,5", 0,0005", Flat Back Plate 543-782B
Roll over image to zoom in Click on image to zoom
Digital Indicator ID-S Inch/Metric, 0,5", 0,0005", Flat Back Plate 543-782B

Digital Indicator ID-S Inch/Metric, 0,5", 0,0005", Flat Back Plate 543-782B

Mitutoyo SKU: 543-782B-10
List price: €195.00 Offer price: €151.00 Excluding VAT

Optional Services

Supplied with a UKAS calibration certificate. Allow 7-10 working days for the calibration
Add your Gauge ID, asset/serial number, company name, logo or QR code.

Optional Accessories

Select any accessories you require. Click a part number to view the accessory details.

Mitutoyo Digimatic Cable, Flat Straight Type 905338
Part number: 905338  → View product
Mitutoyo Digimatic Cable, Flat Straight Type 905409
Part number: 905409  → View product
U-WAVE-T, IP67 Type Wireless Transmitter 02AZD730G
Part number: 02AZD730G  → View product
U-WAVE-T, Buzzer Type Wireless Transmitter 02AZD880G
Part number: 02AZD880G  → View product
U-WAVE Connection Cable F Flat Straight Type 02AZD790F
Part number: 02AZD790F  → View product
U-WAVE Connection Cable F, Footswitch Flat Straight Type 02AZE140F
Part number: 02AZE140F  → View product
U-WAVE-T Transmitter Mounting Plate Universal Type 02AZE200
Part number: 02AZE200  → View product
USB Input Tool Direct (Digimatic USB) 06AFM380C
Part number: 06AFM380C  → View product
Mitutoyo 21EZA105 12.5mm Spindle Lifting Knob
Part number: 21EZA105  → View product
Mitutoyo 21EZA198 Plunger lifting Lever for for Digital Indicator, A-Type Dial Indicator Serie 2/3/4
Part number: 21EZA198  → View product
Mitutoyo 21JZA295 500mm spindle lifting cable
Part number: 21JZA295  → View product
Mitutoyo 901312 Carbide Ball Point M2.5 x .45mm Length 7.3mm Radius 1.5mm
Part number: 901312  → View product
Mitutoyo 938882 SR44 Battery
Part number: 938882  → View productCurrently unavailable
This is a standard model of indicator that is reliable and easy to use.
The ABSOLUTE Digimatic Indicator ID-S offers you the following
benefits:
  • The ABSOLUTE sensor means you don‘t have to carry out origin setting every time you power it on, saving you time and hassle.
  • You can access all functions by using the large, user-friendly
    buttons on the front of the indicator.
  • Large character height of 9 mm provides good readability.
  • Exceptional battery life.
Specification
Digital/Analog:
Digital
Inch-Metric:
Inch/Metric
Delivered:
Including SR44 battery, certificate of inspection
Range:
0.5"/12.7 mm
Digital step:
0.0005"/0.01 mm
Max. Permissible Error
E MPE (Total Range):
±0.001"/0.02 mm
H MPE (Hysteresis):
0.001"/0.02 mm
R MPE (Repeatability):
0.0005"/0.01 mm
Measuring force MPL:
≤1.5 N
Protection:
IP42
Type:
EN ISO Standard
Mass:
140 g
Display:
LCD, character height 9 mm
Max. response speed:
Unlimited
Alarm:
Low voltage, sensor error, ABS data composition error
Stem ∅:
8 mm
Contact point:
Carbide ball, thread: M2.5x0.45
Power supply:
1 battery SR44
Battery life:
Approx. 18000 hours (0.001 mm type),
approx. 20000 hours (0.01 mm type)
Remarks:
This digital indicator has data output but no integrated data button so for USB Input Tool Direct Cable (see optional accessory) the USB-ITPAK Software is required.
Digimatic data output:
Yes
ON/OFF:
Yes
ORIGIN (ABS-Zero):
Yes
Counting direction switchable:
Yes
Inch/Metric switchable:
Yes
Digital Scale:
Electrostatic capacitance type absolute linear encoder

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
