811-335-11 HH-335-01 Durom. Type A Compact/Analogue Shore A Durometer HH-300 Series ø 18 mm
Roll over image to zoom in Click on image to zoom
811-335-11 HH-335-01 Durom. Type A Compact/Analogue Shore A Durometer HH-300 Series ø 18 mm

811-335-11 HH-335-01 Durom. Type A Compact/Analogue Shore A Durometer HH-300 Series ø 18 mm

Mitutoyo SKU: 811-335-11
Price: €775.90 Excluding VAT

Optional Accessories

Select any accessories you require. Click a part number to view the accessory details.

811-012 Testing stand Shore D all types Shore Durometer HH-300 Series
Part number: 811-012  → View product

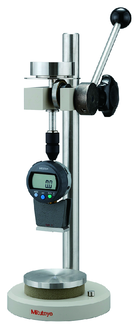

811-013 Testing stand Shore A compact types Shore Durometer HH-300 Series
Part number: 811-013  → View product
Hildebrand Shore A Test Specimen Set (3pcs.) with Works Calibration Certificate acc. to ISO 48-4 218000
Part number: 218000  → View product
Hildebrand Shore A Test Specimen Set (3pcs.) with Works Calibration Certificate acc. to ISO 48-4 218000MIT
Part number: 218000MIT  → View product
These compact digital/dial durometers in the Shore A scale can test a range of different materials and offer you the following benefits:
  • You can use them for testing the hardness of the materials including soft rubber, elastomers, natural rubber, casting resin, neoprene, polyesters, soft PVC, leather, etc.

Specification
Model:
HH-335-01
Shore Scale:
Shore A
Display:
Analog Dial
Indenter b:
ø 1,25 mm
Indenter d:
ø 0,79 mm
θ:
35°
Pressure foot a:
ø 3 mm
Pressure foot f:
ø 18 mm
Indenter protrusion:
2,5 mm
Spring force
WE, WA, WD:
WA=550+75 HA [mN]
Dimensions (WxDxH):
146x68x34 mm
Mass:
0.27 kg

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document 811-335-11 HH-335-01 Durom. Type A Compact/Analogue Shore A Durometer HH-300 Series ø 18 mm Click to open the PDF document
