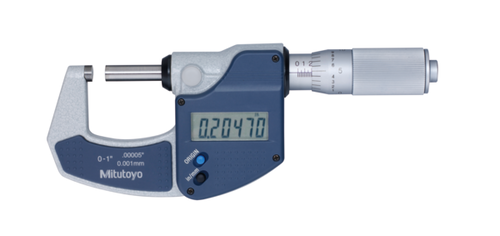

Digimatic Micrometer 0-25mm/0-1" 293-832-30 W/O Data Output
Series 293
A Mitutoyo basic, cost-effective digital micrometer. The highly stable frame incorporates a heat shield to preserve accuracy over extended measuring sessions. A ratchet stop guarantees repeatable measurement.
- It is cost-effective with simplified functionality for standard applications.
- Extraordinary battery life of 2,4 years. Without data output.
- Constant measuring force
- Digital/Analog: Digital
- Inch-Metric: Metric
- Range: 0 - 25 mm
- Digital step: 0.001 mm
- Maximum Permissible Error J MPE:±2 µm
- Accuracy:±2 µm
- Flatness: 0 .3 µm
- Parallelism: 1 µm
- Display:
- LCD, character height 7.5 mm
- Measuring spindle:ø6.35 mm, spindle pitch 0.5 mm
- Scale: Thimble and sleeve satin chrome finish, ø18 mm
- Power supply:1 battery SR-44
- Battery life: Approx. 2.4 years
- Delivered:
- Including box, key, 1 battery, certificate of inspection
- Auto Power OFF after 20 min
- Function lock: Yes
- Mass:275 g
All images are for representation only.
Technical information will be added shortly.
Application information will be added shortly.
Product videos and documents will be added shortly.
