Mahr 40SM Mechanical Micrometers Micromar Rotating Disc Micrometer, Range 0-20mm x .01mm 4145000
Mahr 40SM Mechanical Micrometers Micromar Rotating Disc Micrometer, Range 0-20mm x .01mm 4145000
Mahr 40SM Mechanical Micrometers Micromar Rotating Disc Micrometer, Range 0-20mm x .01mm 4145000
Roll over image to zoom in Click on image to zoom
Mahr 40SM Mechanical Micrometers Micromar Rotating Disc Micrometer, Range 0-20mm x .01mm 4145000Mahr 40SM Mechanical Micrometers Micromar Rotating Disc Micrometer, Range 0-20mm x .01mm 4145000Mahr 40SM Mechanical Micrometers Micromar Rotating Disc Micrometer, Range 0-20mm x .01mm 4145000

Mahr 40SM Mechanical Micrometers Micromar Rotating Disc Micrometer, Range 0-20mm x .01mm 4145000

Mahr SKU: 4145000
Price:
€150.00 €235.00
Why Choose Inspection Equipment
Fast Dispatch Orders dispatched quickly from our extensive warehouse stock.
46 Years of Experience Established in 1980 with decades of metrology expertise.
Technical Support Experienced specialists available before and after your purchase.
25,000+ Products One of Ireland’s largest ranges of precision measurement equipment.
Expert Advice We will help you select the right instrument for your application.
Need help choosing the right product?

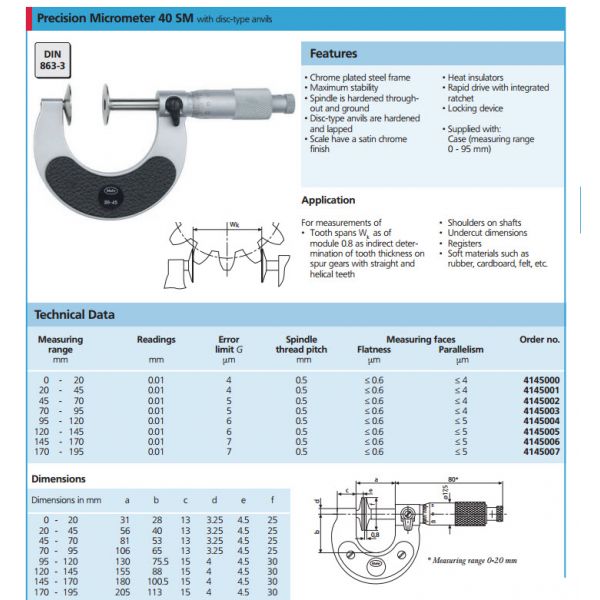

Chrome plated steel frame • Maximum stability • Spindle is hardened throughout and ground • Disc-type anvils are hardened and lapped
• Scale have a satin chrome finish
• Heat insulators
• Rapid drive with integrated ratchet
• Locking device
• Supplied with:


Application
For measurements of
• Tooth spans of module 0.8 as indirect determination of tooth thickness on spur gears with straight and helical teeth
• Shoulders on shafts
• Undercut dimensions
• Registers
• Soft materials such as rubber, cardboard, felt, etc.
Mahr 4145000 Mechanical Micrometers
40SM Micrometer Rotating Disc Micrometer
Range 0-20mm x .01mm

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
