Mahr 40AS Mechanical Micrometers Micromar non rotating spindle blade micrometers, Range 2-3' x .0.0001'' 4134932
Mahr 40AS Mechanical Micrometers Micromar non rotating spindle blade micrometers, Range 2-3' x .0.0001'' 4134932
Roll over image to zoom in Click on image to zoom
Mahr 40AS Mechanical Micrometers Micromar non rotating spindle blade micrometers, Range 2-3' x .0.0001'' 4134932Mahr 40AS Mechanical Micrometers Micromar non rotating spindle blade micrometers, Range 2-3' x .0.0001'' 4134932

Mahr 40AS Mechanical Micrometers Micromar non rotating spindle blade micrometers, Range 2-3' x .0.0001'' 4134932

Mahr SKU: 4134932
List price: €357.00 Offer price: €210.00 Excluding VAT

Optional Services

Supplied with a UKAS calibration certificate. Allow 7-10 working days for the calibration
The setting standard is calibrated separately from the micrometer.
Add your Gauge ID, asset/serial number, company name, logo or QR code.

Optional Accessories

Select any accessories you require. Click a part number to view the accessory details.

Micrometer Stand, Adjustable Angle Type 156-101-10
Part number: 156-101-10  → View product
Micrometer Stand, 45° Angle Type for Micrometer 0-50mm/0-2" 156-105-10
Part number: 156-105-10  → View product
MHC 7PC MICROMETER ANVIL SET FOR USE ON MICROMETERS 600-0107
Part number: 600-0107  → View product
Gauge Block Set, Metric, JCSS Cert., ISO
Part number: 516-106-10  → View product
Optical Parallels Set, Metric 0-25mm 157-903
Part number: 157-903  → View product
MMI-10 Micrometer Checker on a stand Metric 10-piece Set 2.5, 5.1, 7.7, 10.3, 12.9, 15.0, 17.6, 20.2,22.8 & 25.0 mm
Part number: MMI-10  → View product
MMI-8 Micrometer Checker on a stand Metric Metric 8-pieces set 3.1, 6.5, 9.7, 12.5, 15.8, 19.0, 21.9 & 25.0 mm
Part number: MMi-8  → View product
Mitutoyo Ball Attachment 0,2" for 6,35mm Spindle 101468E
Part number: 101468E  → View product
Mitutoyo Ball Attachment 5mm for 6,35mm Spindle 101468M
Part number: 101468M  → View product
Continue comparing alternatives

Return to the original comparison menu to review another equivalent product. Your selected sorting order will be preserved.

← Back to the full alternatives menu

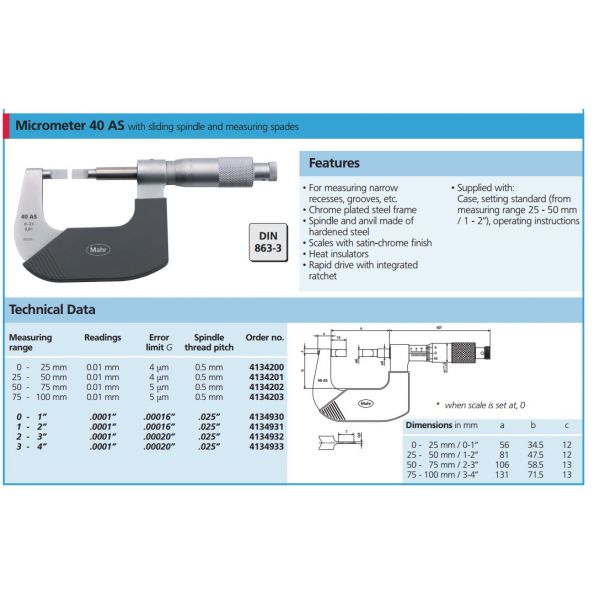

4134932 Mahr Vernier Blade Micrometer: 2-3″

The Mahr 4134932 Vernier Blade Micrometer has the following specifications:

  • Measuring Range: 2-3″
  • Error limit G: .00020″
  • Readings: .0001″
  • Spindle thread pitch: .025″

Features:

  • For measuring narrow recesses, grooves, etc.
  • Hard lacquered steel frame
  • Spindle and anvil made of hardened steel
  • Scales with satin-chrome finish
  • Heat insulators
  • Rapid drive with integrated ratchet
  • Supplied with: Case, setting standard (from measuring range 25-50mm / 1-2″), operating instruction

No technical information is currently available.

No application information is currently available.

No videos or documents are currently available.
