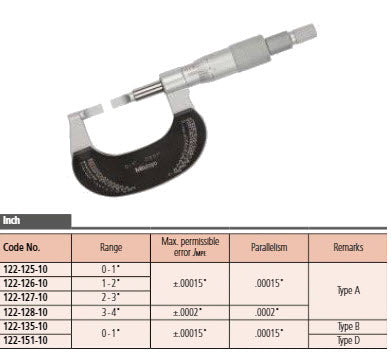

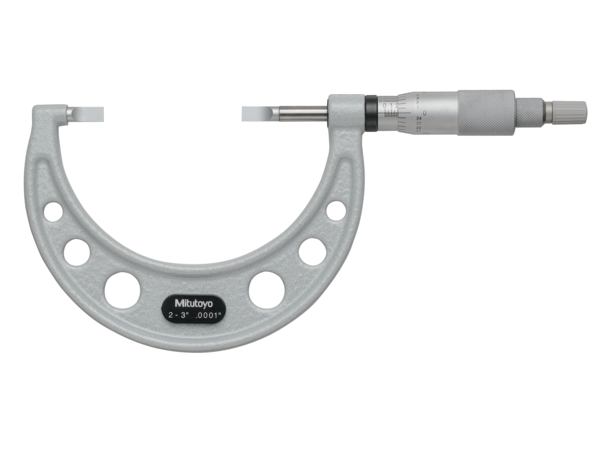

Mitutoyo Blade Micrometer, Hardened Steel Blade 2-3", 0,75mm Blade 122-127-10

Roll over image to zoom in Click on image to zoom

Mitutoyo Blade Micrometer, Hardened Steel Blade 2-3", 0,75mm Blade 122-127-10

Name: Mitutoyo Blade Micrometer, Hardened Steel Blade 2-3", 0,75mm Blade 122-127-10
Brand: Mitutoyo
SKU: 122-127-10
Price: 262.0 EUR
Availability: InStock

MitutoyoSKU: 122-127-10

Price:

€262.00 €349.00

Quantity:

This Blade Micrometer is designed to help you measure hard-to-reach features.
It offers the following benefits:

Blade-shaped anvil and spindle for measuring the groove diameter of shafts.
Non-rotating spindle.

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	122-127-10
Measuring Range	2-3"
Accuracy	["±.00015\""]
Graduation	.0001"
Accuracy	+/-.00015"
Unit of Measurement	Inch
Display Type	Analogue
Measuring Force	5-10N
Type	Blade
Constant Force Device	Ratchet Stop
Parallelism	.00016"

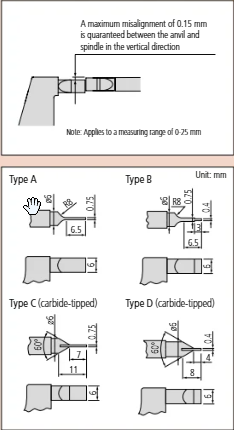

Anvils & Spindle Design	Blades Type A 0.75mm x 6.5mm x 6mm
Calibration Code	CAL9 B1

Digital/Analog:	Analog
Delivered:	Including box, spanner, setting standard
Inch-Metric:	Inch
Range:	2 - 3 "
Graduation:	0.0001"
Max. Permissible Error J MPE:	±0,00015"
Parallelism:	0,00015"
Measuring face:	Carbide-tipped or hardened steel spindle and anvil
Anvil / Spindle:	Type A, hardened steel t=0.75 mm
Measuring spindle:	ø 6,35 mm, spindle pitch 0.5 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	3 - 8 N
Delivered:	Including box, setting standard (from 25 mm upward), key
Mass:	410 g
