| Digital/Analog: |
Digital
|
| Interface: |
Digimatic S1 bidirectional (for wireless data transmission, Digimatic data transmission), RS-232C (for receipt printer), USB-B (for PC), UAB-A (for memory stick)
|
| Delivered: |
In a cardboard box with setting block for probe calibration, ball offset probe D=5 mm, battery pack, dust cover, touch pen for touch screen, protective sheet for touch screen, AC-Adapter, cap for conveying handles (2 pcs.), conveying handles (2 pcs.)
|
| Range: |
0-977 mm
|
| Slider stroke: |
600 mm
|
| Digital step: |
0,0001/ 0,001/ 0,01/ 0,1 mm or 0,000001/ 0,00001/ 0,0001/ 0,001"
|
| Remarks: |
With power grip
|
| Accuracy: |
±(1,1 + 6L/6000) µm L = length (mm)
|
| Perpendicularity: |
5 µm (after compensation)
|
| Straightness: |
4 µm (mechanical)
|
| Repeatability: |
(2σ) Plane : 0,4 µm (2σ) Bore : 0,9 µm
|
| Air floating: |
Full-floating (for moving), semi floating (for scanning measurement)
|
| Mass: |
26.6 kg
|
| Balancing method: |
Counterbalance
|
| Drive method: |
Motor-driven (5, 10, 15, 20, 25, 30, 40 mm/s: 7 stpes)/ manual
|
| Sliding method: |
Rolling bearing
|
| Slider balance adjustment method: |
Manual adjustment by adding/removing auxiliary weights
|
| Scale: |
Photoelectric INC encoder, STVC-20Z (8.1x10-6/K)
|

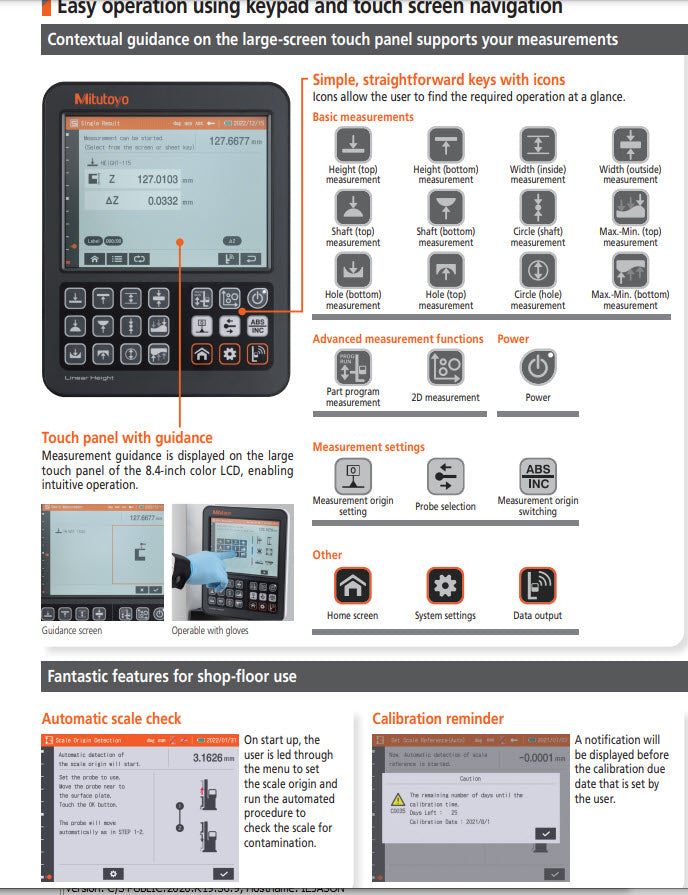

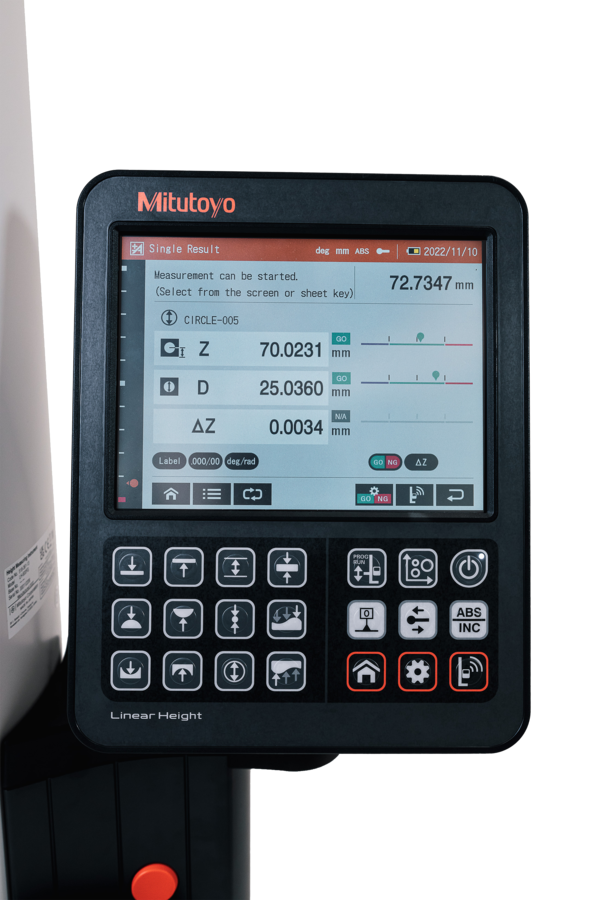

| Display: |
8.4" SVGA touch screen (800x600 dot, LED, with back lightning)
|

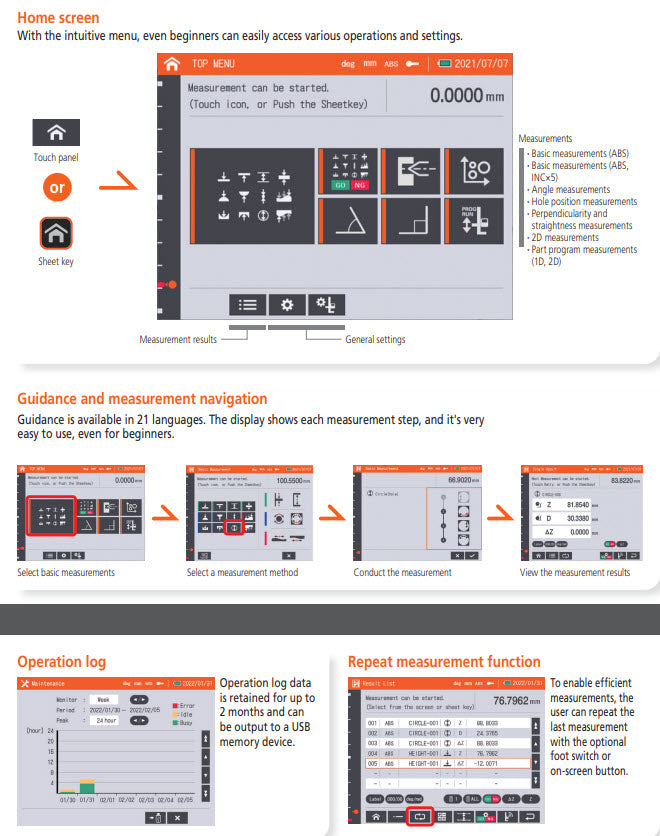

| Language for display: |
English / German / French / Spanish / Italian / Dutch / Portuguese / Swedish / Turkish / Czech / Hungarian / Slovenian / Polish / Russian / Romanian / Bulgarian / Finnish / Traditional Chinese / Simplified Chinese / Korean / Japanese
|
| Adjustment range of display unit orientation: |
Tilt direction: 0-40°, swivel direction: -30-180°
|
| Power supply: |
AC adapter 100-240V, 50/60Hz / battery (Ni-MH)
|
| Battery operation time: |
Approx. 4 hours
|
| Battery charging time: |
Appr. 3,5 h
|
| Power consumption: |
Max. 49.9 W
|
| Number of stored part programs: |
50
|
| Preventive maintenance function: |
Scale status notification, calibration status notification
|
| Operating humidity: |
20-80% RH (no condensation)
|
| Airborne noise: |
70dB(A)
|
| Inch-Metric: |
Metric/Inch
|
| Delivered: |
without power cable ( 02ZAA021 )
|
