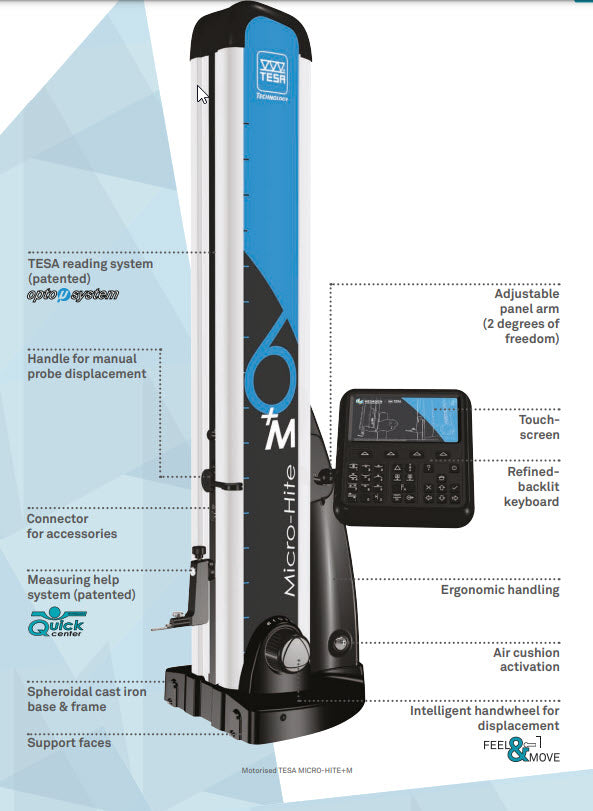

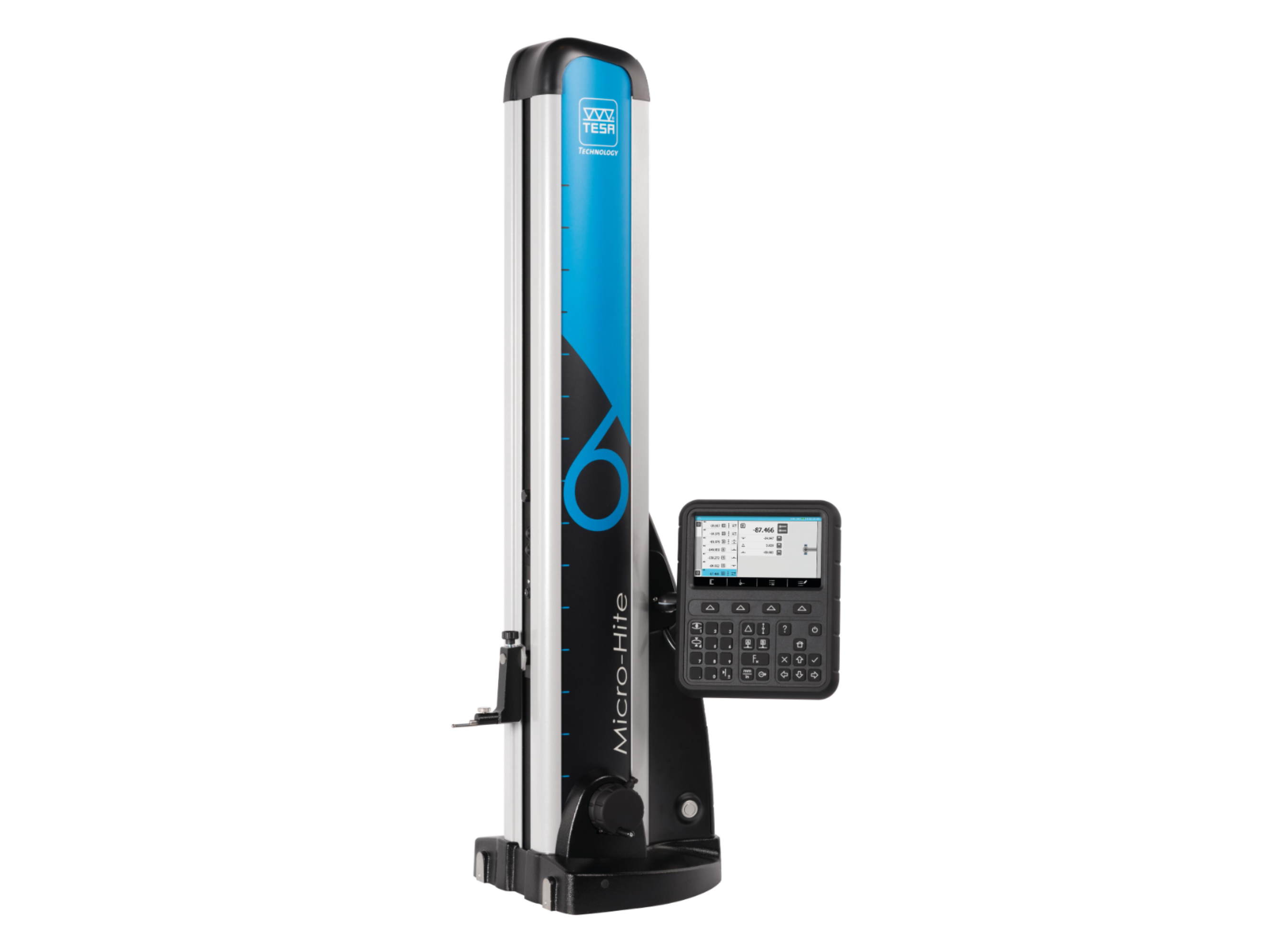

Tesa Micro-Hite Digital Height Gauge
This high-end instrument is intuitive due to the clear and refined user philosophy of its embedded software and allows measurements in 1 or 2-coordinate directions.

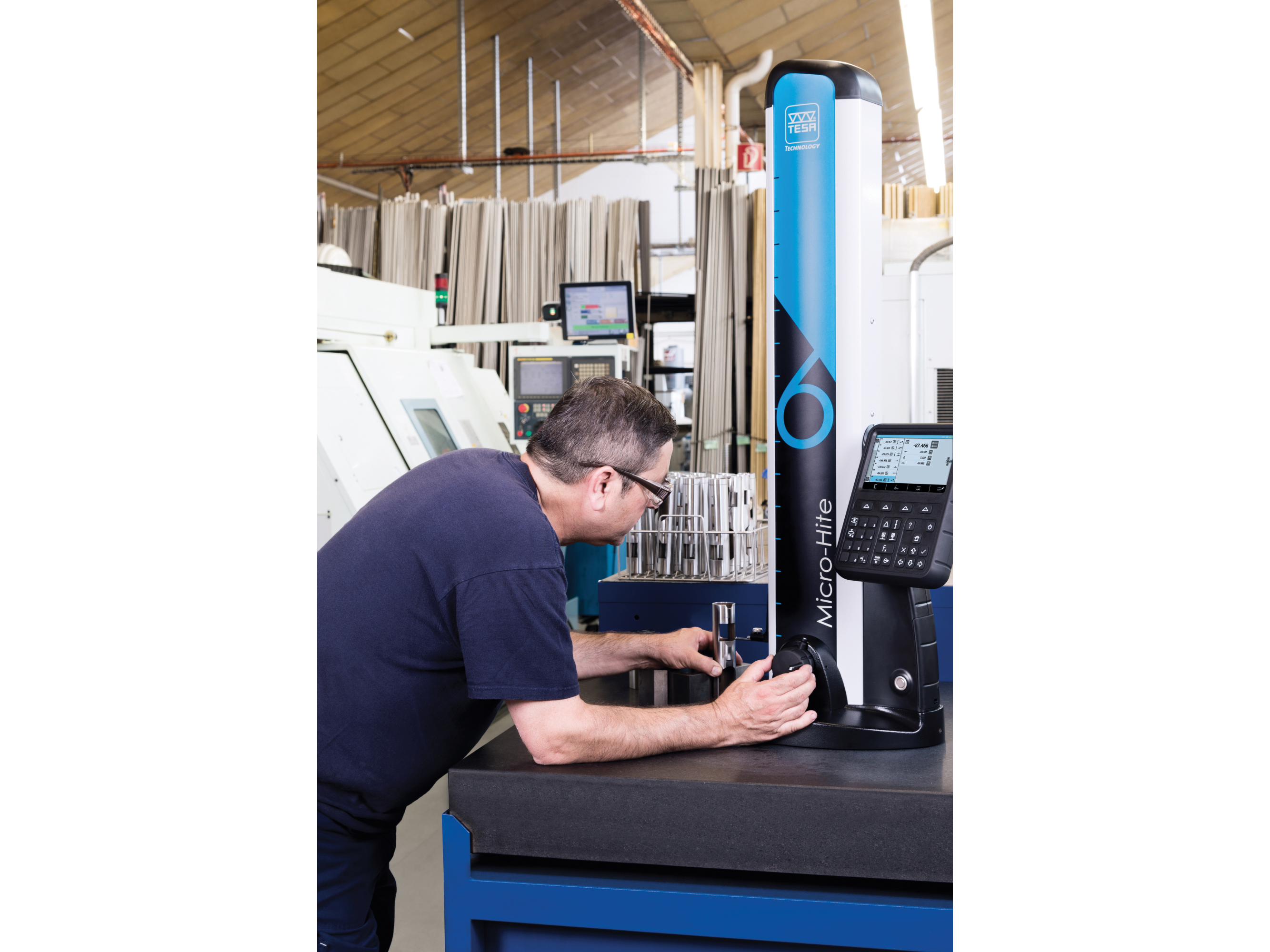

A universal machine developed for workshops and for laboratories that can be integrated as close as possible to the user. Indeed, the robustness of its cast iron base and frame makes it a reliable instrument that guarantees excellent repeatability and precision in any kind of condition.
With the exception of the 1D basis functions, it is equipped with advanced functions (angle, programming, tolerancing, 2D, ...) and turns it into a metrological “multi-user” asset, that replaces the most conventional measuring tools. With the integrated patented QUICKCENTER technology, the height gauge gives clear indications not only when capturing simple points but it becomes a proven advantage for the determination of the culmination points.

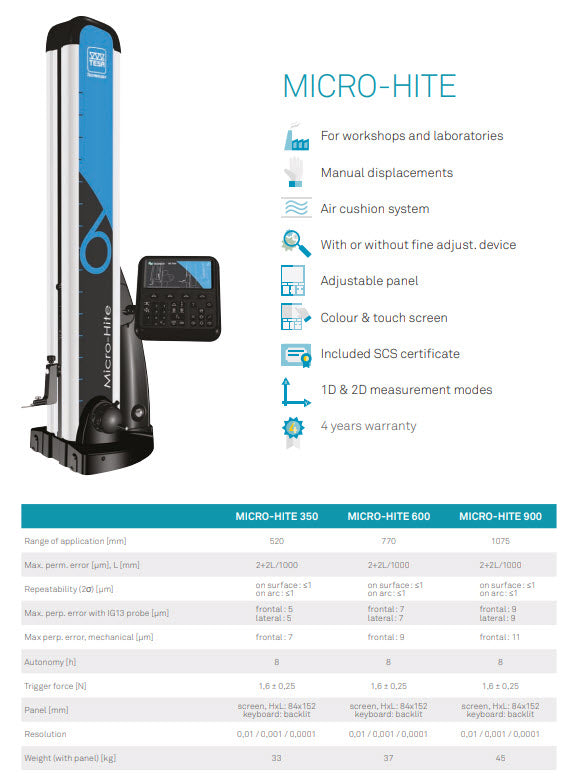

| Usage | For workshops and laboratories |
| Panel | Adjustable |
| Modes | 1D & 2D measurement modes |
| Max. perp. error with IG13 probe [µm] | frontal: 7 lateral: 7 |
| Zero | Fixed |
| Coefficient of linear expansion | 11,5 x 10-6 K-1 |
| Material | Base and frame: cast iron |
| Weight | Model 350: 33 kg Model 600: 37 kg Model 900: 45 kg |
| Panel | screen, HxL: 84x152 keyboard: backlit |
| Autonomy [h] | 8µm |
| Autonomy | 8 hours (with a battery block) Infinite (with 2 battery blocks) |
| Included in delivery | SCS calibration certificate Declaration of conformity |
| TLC, USB |
