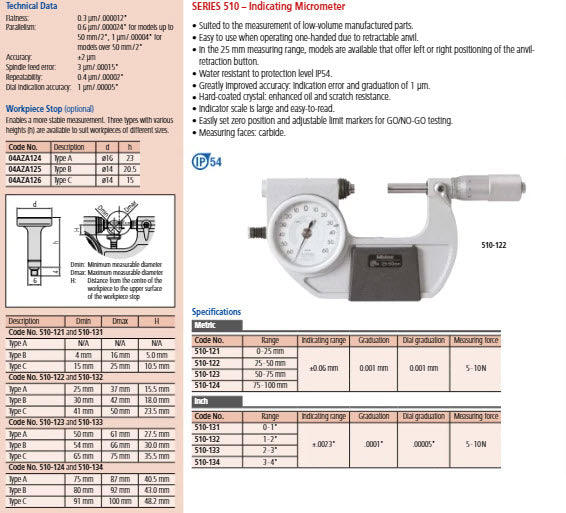

Mitutoyo Indicating Micrometer with Button Right 0-25mm 510-121

Mitutoyo SKU: 510-121
List price: €905.00 Offer price: €633.00 Excluding VAT

Optional Services

Supplied with a UKAS calibration certificate. Allow 7-10 working days for the calibration
Add your Gauge ID, asset/serial number, company name, logo or QR code.

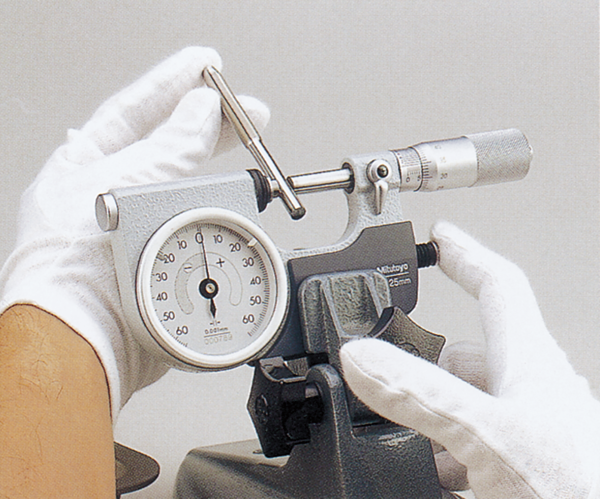

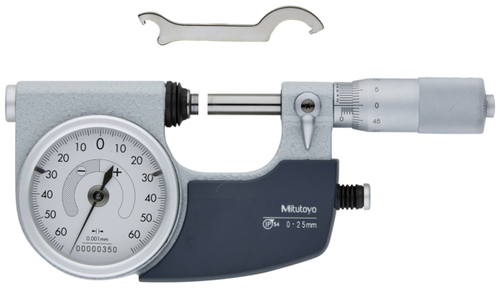

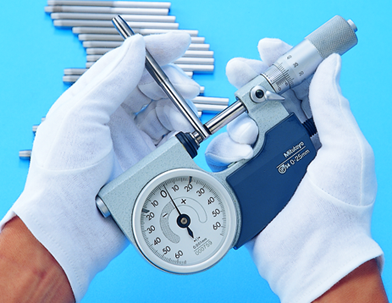

A Mitutoyo non-digital, rapid-retraction-anvil indicating micrometer equipped with a high resolution dial indicator.
Specification
Digital/Analog:
Analog
Delivered:

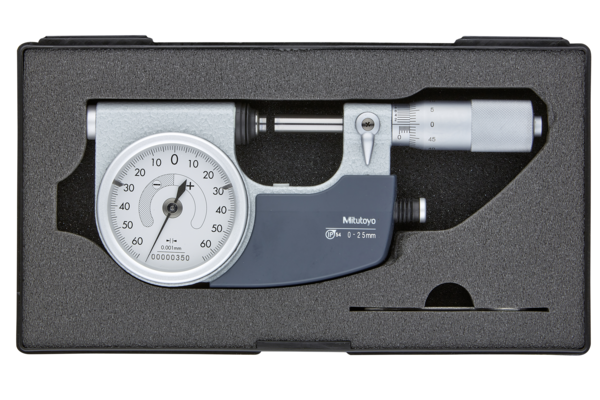

Including box, spanner
Inch-Metric:
Metric
Range:
0 - 25 mm
Indicating range:
±0.06 mm
Anvil retracting stroke:
2 mm
Spindle feed error:
3 µm
Accuracy dial comparator:
1 μm
Repeatability:
0.4 µm
Flatness:
0,3 μm
Parallelism:
0,6 μm
Graduation:
0,001 mm
Measuring face:
Carbide-tipped, micro-lap finish, ø8 mm
Measuring spindle:
With spindle lock, ø8 mm, spindle pitch 0,5 mm
Scale:
Thimble and sleeve satin chrome finish, ø21 mm
Measuring force:
5 - 10 N
Operating button:
Right
Delivered:
Including box, key
Mass:
520 g

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
