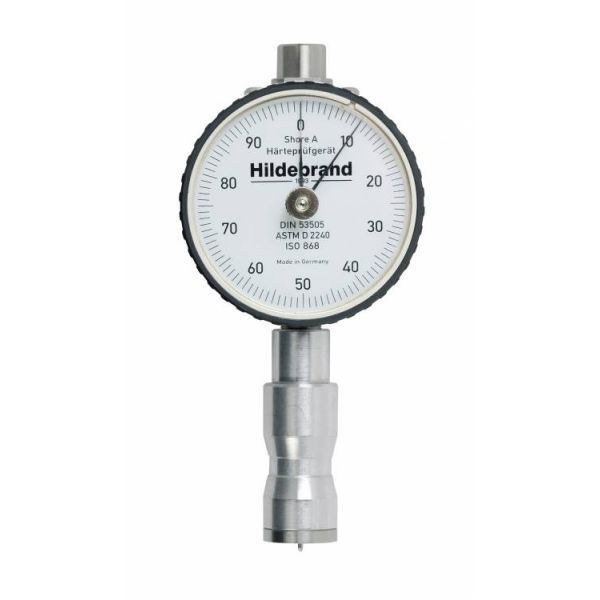

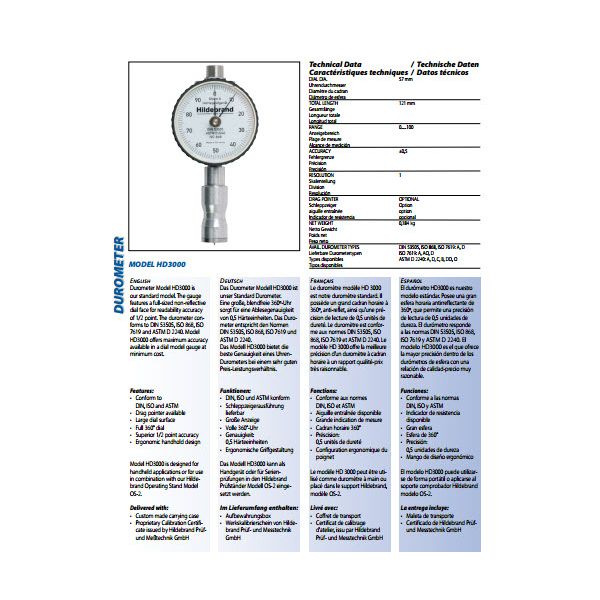

Durometer Model HD3000 is our standard model. The gauge features a full-sized non-reflective dial face for readability accuracy of 1/2 point.
The durometer conforms to DIN 53505, ISO 868, ISO 7619 and ASTM D 2240. Model HD3000 offers maximum accuracy available in a dial model gauge at minimum cost.
Features:
- Conform to DIN, ISO and ASTM
- With Drag pointer
- Large dial surface
- Full 360° dial
- Superior 1/2 point accuracy
- Ergonomic handhold design
Model HD3000 is designed for handheld applications or for use in combination with our Hildebrand Operating Stand Model OS-2.
- Dial diamter: 57 mm
- Total length: 121 mm
- Range: 0....100
- Accuracy: ±0,5
- Resolution: 1
- Drag pointer: Optional
- Net weight: 0,184 g

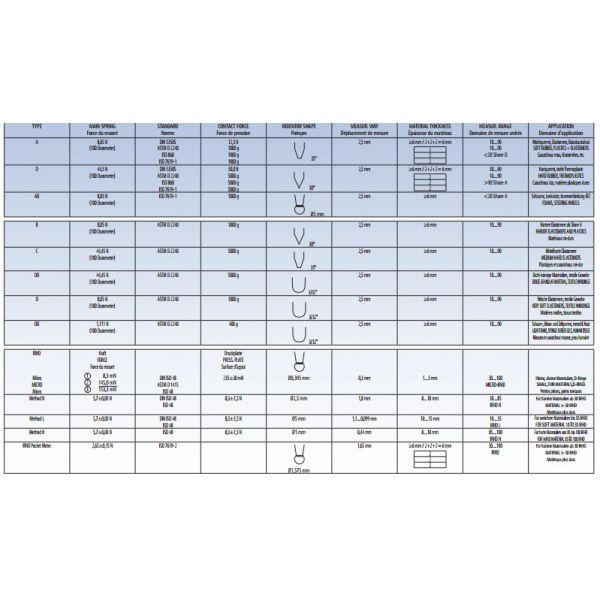

- Available types:
DIN 53505, ISO 868, ISO 7619:
A, D - ISO 7619: A, AO, D
- ASTM D 2240:
A, D, C, B, DO, O
Hildebrand Code 2228081, Model HD3000 Shore D Hardness Tester With Drag Pointer DIN ISO 7619-1, ISO 868, ISO 7619, ASTM D 2240 (Linear Ball Bearings)
Technical information will be added shortly.
Application information will be added shortly.
Product videos and documents will be added shortly.
