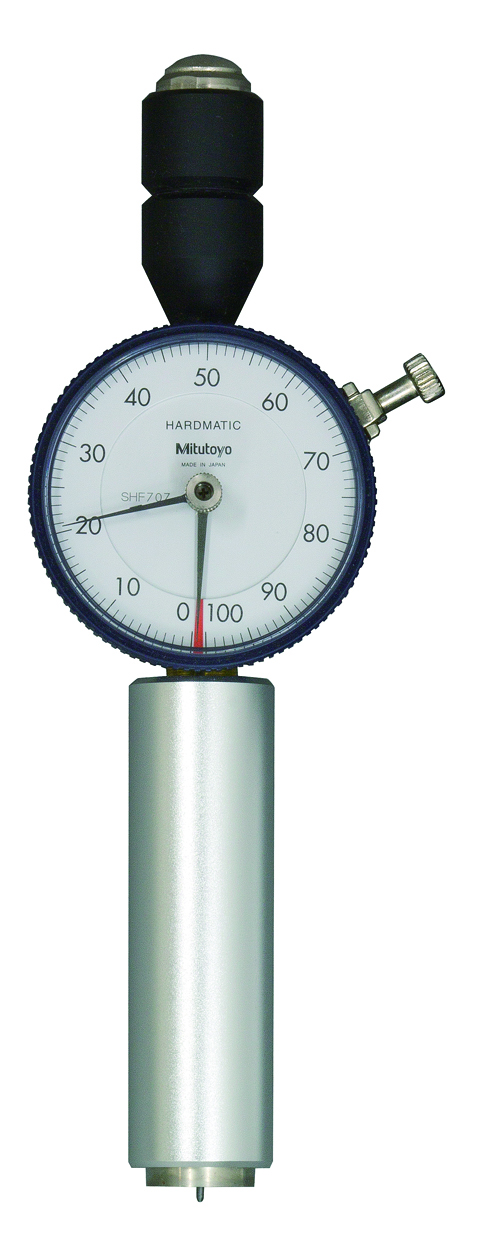

811-333-10 HH-333 Durometer Type D Long/Analogue Shore D Durometer HH-300 Series ø 18 mm
811-333-10 HH-333 Durometer Type D Long/Analogue Shore D Durometer HH-300 Series ø 18 mm
Roll over image to zoom in Click on image to zoom
811-333-10 HH-333 Durometer Type D Long/Analogue Shore D Durometer HH-300 Series ø 18 mm811-333-10 HH-333 Durometer Type D Long/Analogue Shore D Durometer HH-300 Series ø 18 mm

811-333-10 HH-333 Durometer Type D Long/Analogue Shore D Durometer HH-300 Series ø 18 mm

Mitutoyo SKU: 811-333-10
Price: €895.18 Excluding VAT

Optional Accessories

Select any accessories you require. Click a part number to view the accessory details.

811-012 Testing stand Shore D all types Shore Durometer HH-300 Series
Part number: 811-012  → View product
811-014 Testing stand Shore D compact types Shore Durometer HH-300 Series
Part number: 811-014  → View product
Hildebrand 218000D Shore D test blocks
Part number: 218000D  → View product
These compact digital/dial durometers in the Shore D scale can test a range of different materials and offer you the following benefits:
  • You can use them for testing the hardness of the materials including hard rubber, hard plastics, acrylic glass, Polystyrene, rigid thermoplastics, vinyl, cellulose acetate, etc.

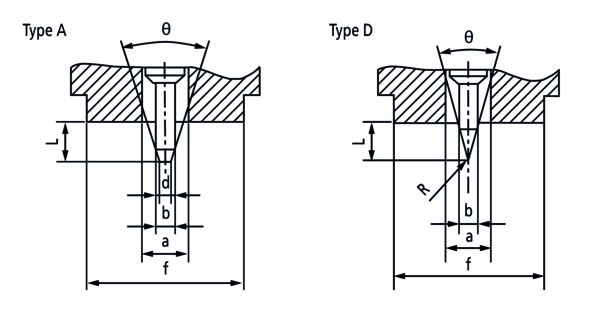

Specification
Model:
HH-333
Display:
Analog Dial
Indenter b:
ø 1,25 mm
Indenter r:
R 0,1 mm
θ:
30°
Pressure foot a:
ø 3 mm
Pressure foot f:
ø 18 mm
Indenter protrusion:
2,5 mm
Spring force
WE, WA, WD:
WD=444,5H D [mN]
Dimensions (WxDxH):
188 x 68 x 35 mm
Mass:
0.32 kg
Connector cable for:
HH-300 Series
PIN:
Flat
USB-ITN:
06AFM380F
DP-1VA (264-505):
959149
IT-016U 264-016-10 Hardmatic table:
937387

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document 811-333-10 HH-333 Durometer Type D Long/Analogue Shore D Durometer HH-300 Series ø 18 mm Click to open the PDF document
