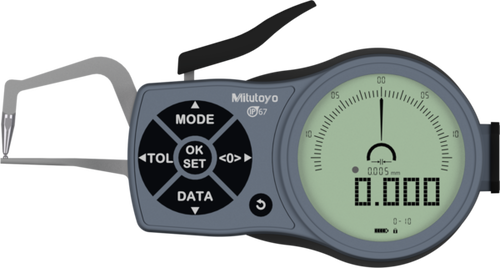

Mitutoyo External Digital Caliper Gauge 209-943 0-10mm (Kroeplin Equivalent K1R10)

Roll over image to zoom in Click on image to zoom

Mitutoyo External Digital Caliper Gauge 209-943 0-10mm (Kroeplin Equivalent K1R10)

Name: Mitutoyo External Digital Caliper Gauge 209-943 0-10mm (Kroeplin Equivalent K1R10)
Brand: Mitutoyo
SKU: 209-943
Price: 602.0 EUR
Availability: InStock

MitutoyoSKU: 209-943

Price:

€602.00 €802.00

Quantity:

Digital Caliper Gauge enables measurements in hard-to-reach places
Excellent resistance against water and dust IP67 level

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	209-943
Measuring Range	0-10mm
Resolution	Switchable .001mm, .002mm, .005mm, .01mm/.00005", .0001", .001", .0005"
Accuracy	[".015mm"]
Accuracy	.015mm
Unit of Measurement	Metric Inch
Display Type	Digital
Data Output	Yes
IP Rating	["IP67"]
Measuring Force	0-8-1.2N
Type	External
Repeatability	.03mm

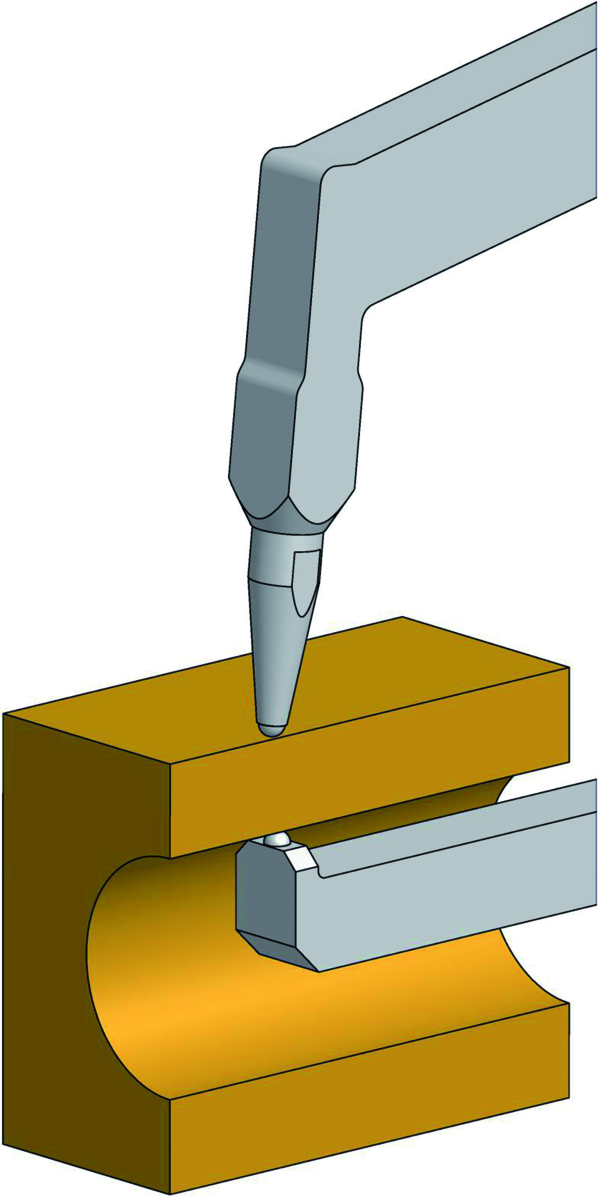

Application	Measurement of tube wall thickness
Measuring Contacts	Carbide Ball 1.5mm diameter

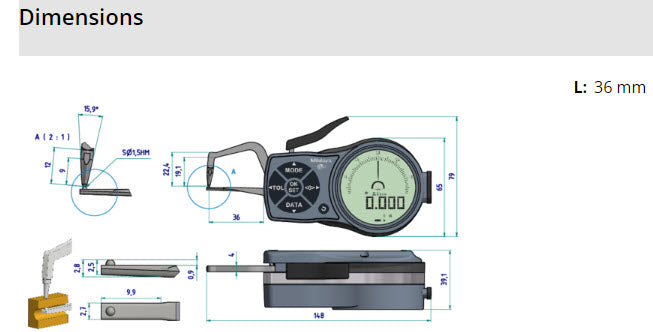

Measurement L	36mm
Measurement B	9mm
Measurement A	19.1mm

Digital/Analog:	Digital
Inch-Metric:	Metric/Inch
Delivered:	Including 2 batteries LR3, certificate of inspection
Range:	0 - 10 mm
Digital step:	0,001 / 0,002 / 0,005 / 0,01 / 0,02 / 0,05 mm
Protection:	IP67
Measuring force:	0,8-1,2 N
Mass:	255 g
Power supply:	2 batteries LR3 (AAA)
ABS/INC switchable:	Yes
Auto Power OFF after 1/5/10 min. non use:	YES
Analog bar resolution switchable:	Yes
OFFSET:	Yes
Type:	Fig. 2
Hb:	19.1 mm
Hf:	9 mm
mm/inch conversion:	Yes
HOLD:	Yes
SET key:	Yes
DATA key:	Yes
DATA-Logger (100 measured values):	Yes
Max. reading:	Yes
Min. reading:	Yes
Tolerance LED (green/red):	Yes
Tolerance judgement:	Yes
