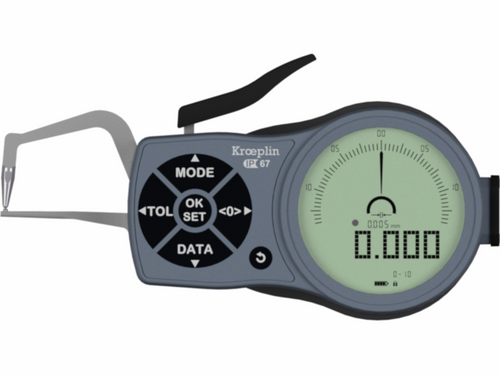

Kroeplin Digital Tube Wall Caliper Gauge 0-10mm, 0.001mm K1R10( Mitutoyo Equivalent 209-943)

Roll over image to zoom in Click on image to zoom

Kroeplin Digital Tube Wall Caliper Gauge 0-10mm, 0.001mm K1R10( Mitutoyo Equivalent 209-943)

Name: Kroeplin Digital Tube Wall Caliper Gauge 0-10mm, 0.001mm K1R10( Mitutoyo Equivalent 209-943)
Brand: Kroeplin
SKU: K1R10
Price: 425.69 EUR
Availability: InStock

KroeplinSKU: K1R10

Price:

€425.69

Quantity:

Kroeplin Digital Tube Wall Caliper Gauge

Specification

Digital/Analog:	Digital
Inch-Metric:	Metric/Inch
Delivered:	Including 2 batteries LR3, certificate of inspection
Range:	0 - 10 mm
Digital step:	0,001 / 0,002 / 0,005 / 0,01 / 0,02 / 0,05 mm
Protection:	IP67
Measuring force:	0,8-1,2 N
Mass:	255 g
Power supply:	2 batteries LR3 (AAA)
ABS/INC switchable:	Yes
Auto Power OFF after 1/5/10 min. non use:	YES
Analog bar resolution switchable:	Yes
OFFSET:	Yes
Type:	Fig. 2
Hb:	19.1 mm
Hf:	9 mm
mm/inch conversion:	Yes
HOLD:	Yes
SET key:	Yes
DATA key:	Yes
DATA-Logger (100 measured values):	Yes
Max. reading:	Yes
Min. reading:	Yes
Tolerance LED (green/red):	Yes
Tolerance judgement:	Yes

Product Information
Part Number	K1R10
Measuring Range	0-10mm
Resolution	.001mm, .002mm, .005mm, .01mm/.00005", .0001", .001", .0005"
Accuracy	[".015mm"]
Accuracy	.015mm
Unit of Measurement	Metric Inch
Display Type	Digital
Data Output	Yes
IP Rating	["IP67"]
Measuring Force	0-8-1.2N
Type	Tube Wall
Repeatability	.005mm
Application	Measurement of tube wall thickness
Measuring Contacts	Carbide Ball 1.5mm diameter
Measurement L	36mm
Measurement B	9mm
Measurement A	19.1mm
Calibration Code	CAL22 B1
