Mitutoyo Digital Blade Micrometer, Blade=0,75mm 75-100mm 422-233-30

Roll over image to zoom in Click on image to zoom

Mitutoyo Digital Blade Micrometer, Blade=0,75mm 75-100mm 422-233-30

Name: Mitutoyo Digital Blade Micrometer, Blade=0,75mm 75-100mm 422-233-30
Brand: Mitutoyo
SKU: 422-233-30
Price: 873.26 EUR
Availability: InStock

MitutoyoSKU: 422-233-30

Price:

€873.26 €1,196.25

Quantity:

Mitutoyo; Digital Blade Micrometer

All images are for representation only.

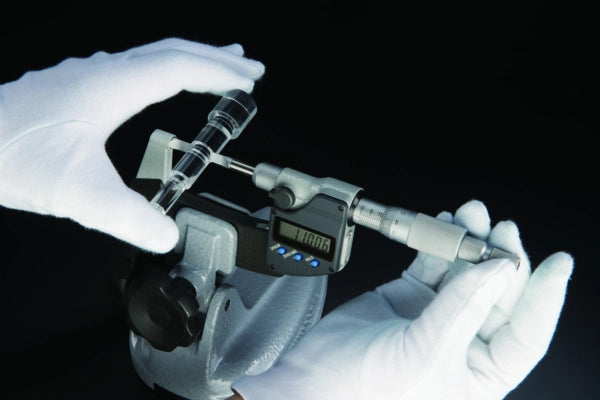

This Digimatic Blade Micrometer is designed to help you measure hard-to-reach features. It offers the following benefits:

Blade-shaped anvil and spindle for measuring the groove diameter of shafts, keyways and other hard-to reach features
Non-rotating spindle

Features

Digital/Analog:	Digital
Delivered:	Including box, spanner, setting standard, 1 SR44 battery
Inch-Metric:	Metric
Range:	75 - 100 mm
Digital step:	0,001 mm
Max. Permissible Error J MPE:	±4 µm
Parallelism:	4 µm
Display:	LCD, character height 7.5 mm
Measuring face:	Carbide-tipped or hardened steel spindle and anvil

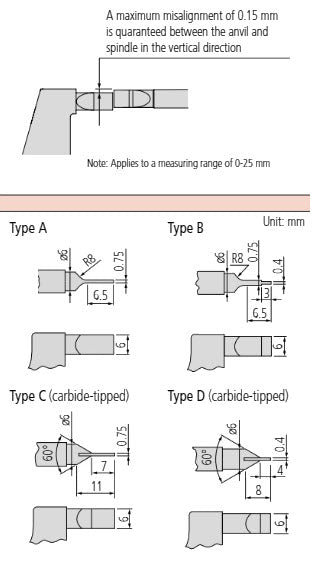

Anvil / Spindle:	Type A, hardened steel t=0.75 mm
Measuring spindle:	With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	3 - 8 N
Power supply:	1 battery SR-44
Battery life:	Approx. 2.4 years
ORIGIN:	Yes
ABS / INC (INC ZERO):	Yes
Auto Power OFF after 20 min. non use:	Yes
Low voltage alarm:	Yes
Function lock:	Yes
HOLD:	Yes
Mass:	580 g

Product Information
Part Number	422-233-30
Measuring Range	75-100mm
Resolution	.001mm
Accuracy	["±.003mm"]
Accuracy	+/_.003mm
Unit of Measurement	Metric
Display Type	Digital
Measuring Force	3-8N
Type	Blade
Graduation on Thimble	.01mm
Constant Force Device	Ratchet Stop
Calibration Code	CAL9 B1
