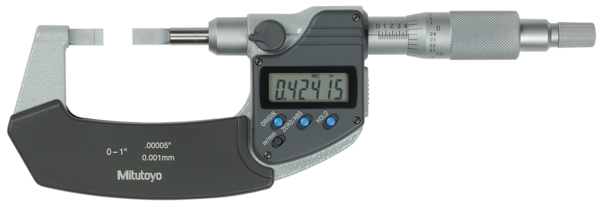

Mitutoyo Digital Blade Micrometer, Blade=0,4mm Inch/Metric, 0-1" 422-360-30

Roll over image to zoom in Click on image to zoom

Mitutoyo Digital Blade Micrometer, Blade=0,4mm Inch/Metric, 0-1" 422-360-30

Name: Mitutoyo Digital Blade Micrometer, Blade=0,4mm Inch/Metric, 0-1" 422-360-30
Brand: Mitutoyo
SKU: 422-360-30
Price: 847.71 EUR
Availability: InStock

MitutoyoSKU: 422-360-30

Price:

€847.71 €1,161.25

Quantity:

Mitutoyo; Digital Blade Micrometer

This Digimatic Blade Micrometer is designed to help you measure hard-to-reach features. It offers the following benefits:

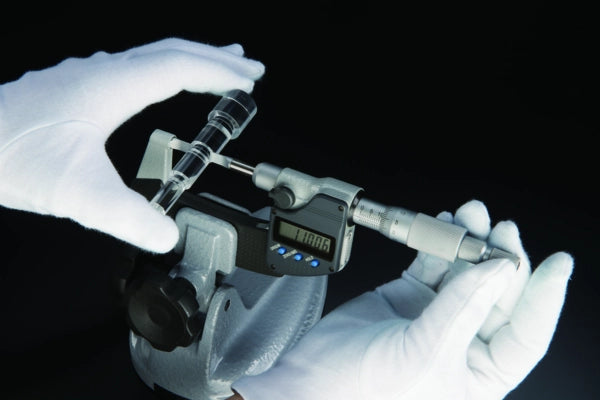

Blade-shaped anvil and spindle for measuring the groove diameter of shafts, keyways and other hard-to reach features
Non-rotating spindle

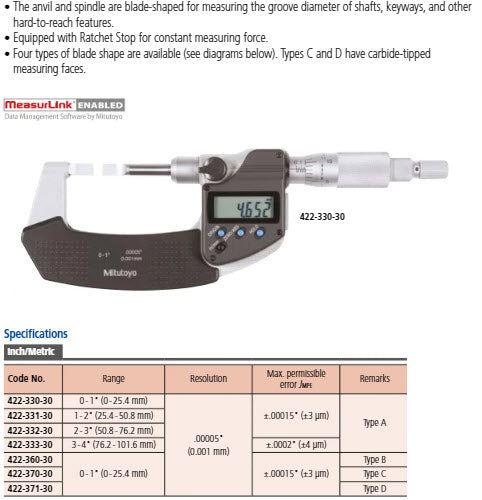

Specification

Digital/Analog:	Digital
Delivered:	Including box, spanner, 1 SR44 battery
Inch-Metric:	Inch/Metric
Range:	0 - 1 "
Digital step:	0,00005"/0,001 mm
Max. Permissible Error J MPE:	±0,00015"
Parallelism:	0,00015"
Display:	LCD, character height 7.5 mm
Measuring face:	Carbide-tipped or hardened steel spindle and anvil

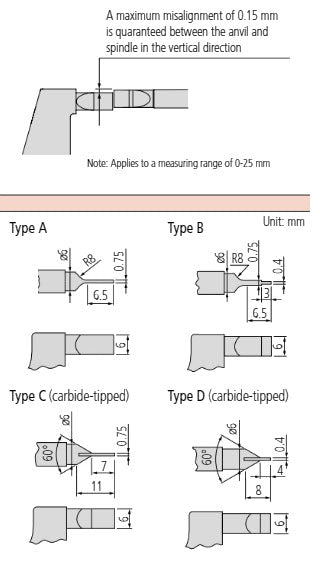

Anvil / Spindle:	Type B, hardened steel, t=4 mm
Measuring spindle:	With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	3 - 8 N
Power supply:	1 battery SR-44
Battery life:	Approx. 2.4 years
ORIGIN:	Yes
ABS / INC (INC ZERO):	Yes
Auto Power OFF after 20 min. non use:	Yes
Low voltage alarm:	Yes
Function lock:	Yes
HOLD:	Yes
Mass:	365 g

Product Information
Part Number	422-360-30
Measuring Range	0-25mm/0-1"
Resolution	.001mm/.00005"
Accuracy	["±3µm/.00015\""]
Accuracy	+/-.003mm/.00015"
Unit of Measurement	Metric Inch
Display Type	Digital
Measuring Force	3-8N
Type	Blade
Graduation on Thimble	.01mm
Constant Force Device	Ratchet Stop
Calibration Code	CAL9 B1
