Dial Snap Meter 25-50mm 523-122

Mitutoyo SKU: 523-122

List price: €824.00 Offer price: €638.00 Excluding VAT

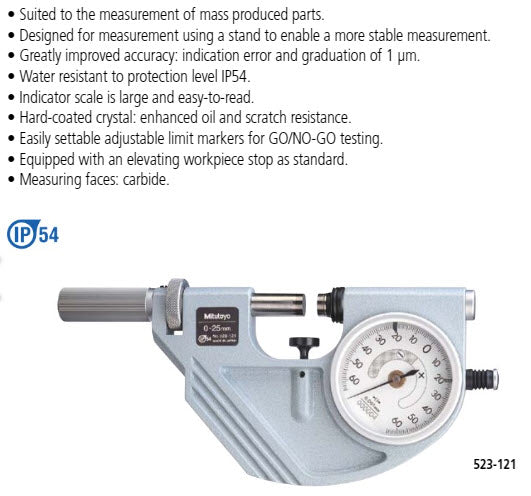

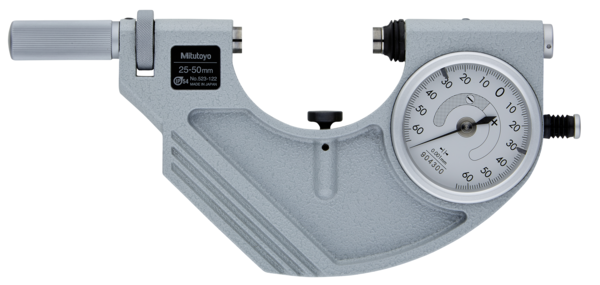

A Mitutoyo rapid-retraction-anvil snap meter equipped with a high resolution dial indicator.
Digital/Analog:
Analog
Delivered:

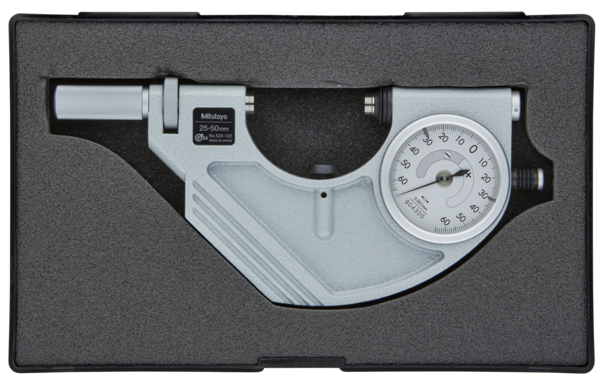

Including box, workpiece rest, setting standard
Inch-Metric:
Metric

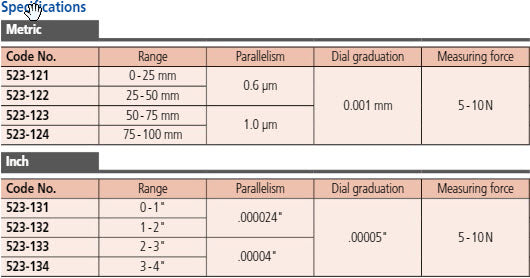

Range:
25 - 50 mm
Graduation:
0.001 mm

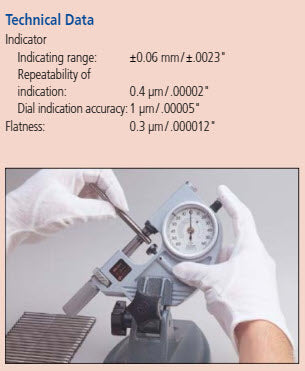

Indicating range:
±0.06 mm

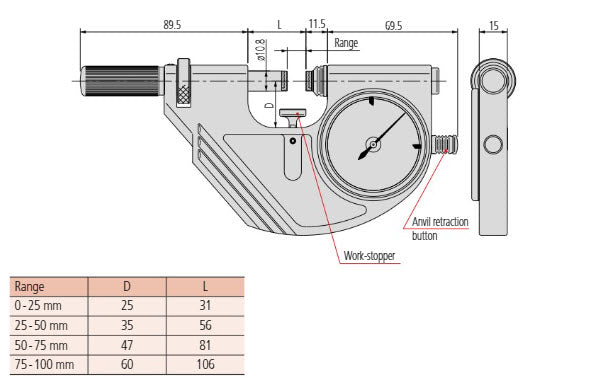

Anvil retracting stroke:
2 mm
Accuracy dial comparator:
1 μm
Repeatability:
0.4 µm
Flatness:
0,3 μm
Parallelism:
0,6 μm
Measuring face:
Carbide-tipped, micro-lap finish ø10.8 mm
Measuring spindle:
ø10,8 mm
Measuring force:
5 - 10 N
Delivered:
Including box, workpiece rest
Mass:
840 g
