Dial Gauge, Lug Back, ANSI/AGD Type Jewelled Bearing, 1", 0,001" 2416A

Roll over image to zoom in Click on image to zoom

Dial Gauge, Lug Back, ANSI/AGD Type Jewelled Bearing, 1", 0,001" 2416A

Name: Dial Gauge, Lug Back, ANSI/AGD Type Jewelled Bearing, 1", 0,001" 2416A
Brand: Mitutoyo
SKU: 2416A
Price: 79.0 EUR
Availability: InStock

MitutoyoSKU: 2416A

Price:

€79.00 €105.00

Quantity:

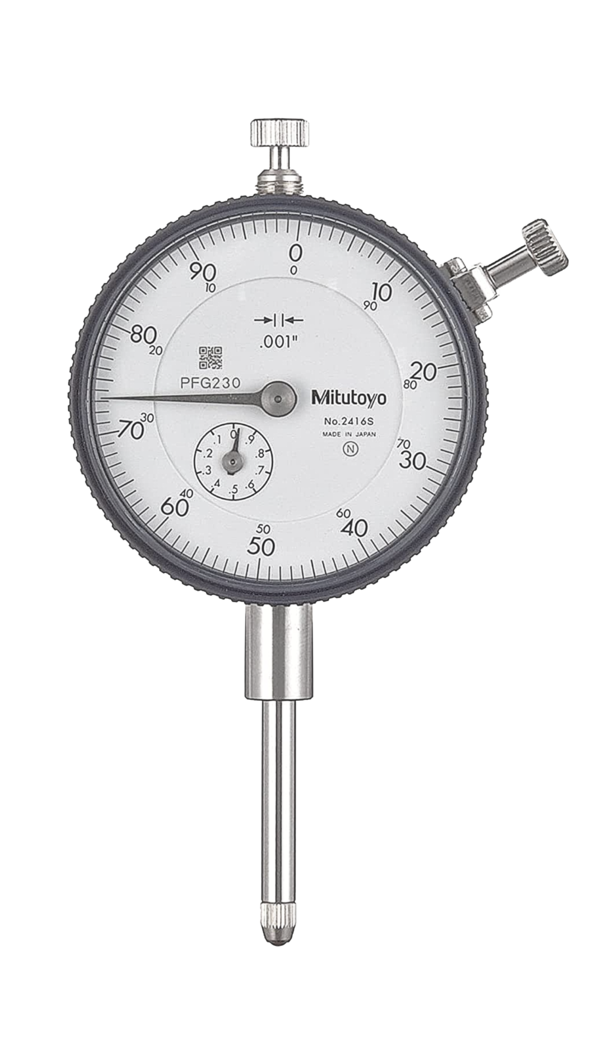

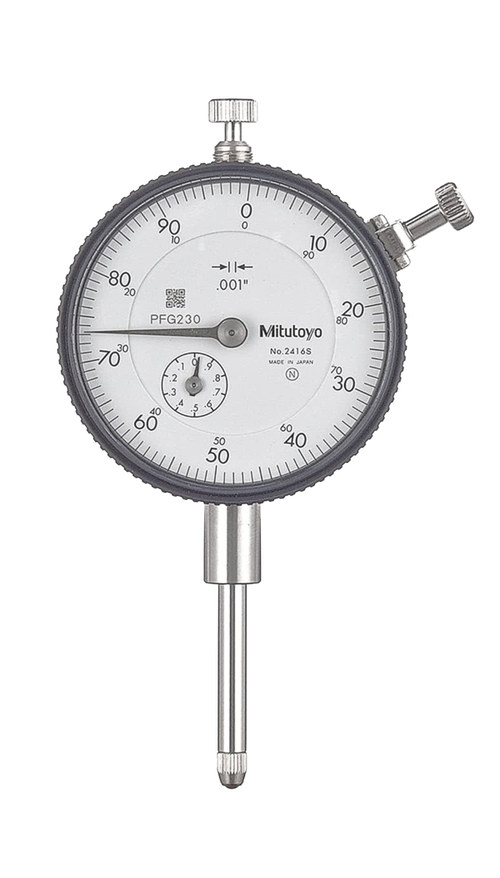

A Mitutoyo multi-revolution dial indicator suited to comparison measurement applications.

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	2416A
Measuring Range	1"
Resolution	.001"
Graduation	.001"
Accuracy	.002"
Unit of Measurement	Inch
Display Type	Analogue
IP Rating	["IP64"]
Measuring Force	≤1.8N
Type	Lug Back
Graduation on Thimble	.001"
Repeatability	±.0002"
Dial Reading	0-100
Dial Face Size Ø	2,25"
Hysteresis	.0002"
Stem	9.52mm/3/8"
Stem Diameter	3/8"
Back	Centre Lug Back
Range Per Rev	.1"
Scale	0-100
Calibration Code	CAL14 B4
Stem	9.52mm/3/8"

Digital/Analog:	Analog
Inch-Metric:	Inch
Delivered:	With certificate of inspection, bezel clamp
Range:	0,5 "
Range per rev.:	0,1"
Graduation:	0,001"
H MPE (Hysteresis):	0,0002"
R MPE (Repeatability):	±0,0002"
MPE first one revolution:	±0,001"
MPE first 2 1/2 revolutions:	±0,001"
MPE > 2 1/2-10 revolutions:	±0,001"
Type:	ANSI/AGD Standard
Measuring force:	0,4-1,8 N
Mass:	164 g
Stem:	9.52 mm / 0.375"
Contact point:	Carbide tipped, thread: 4-48UNF
Balanced dial:	Yes
Continuous dial:	Yes
