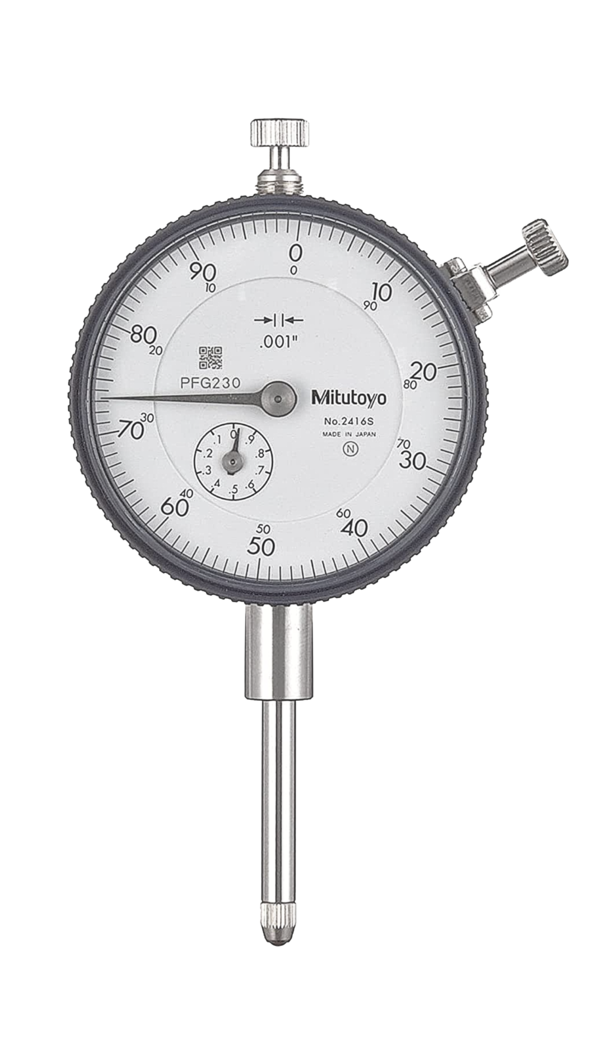

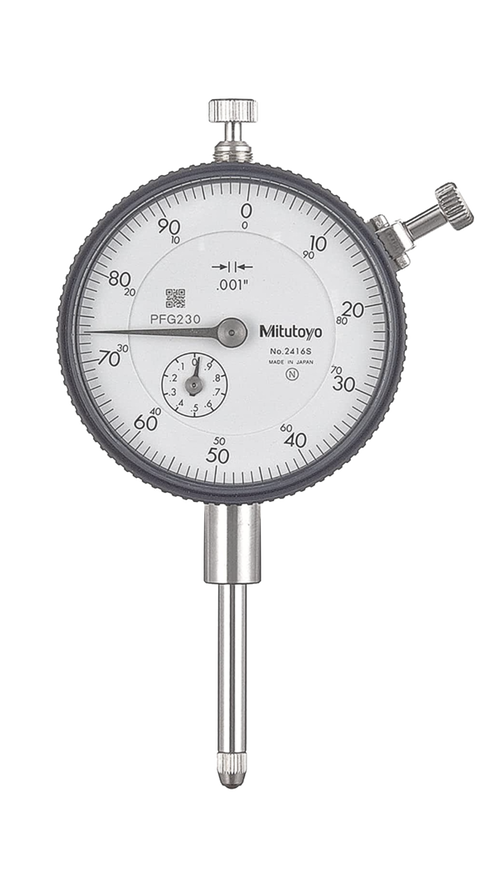

Mitutoyo 2416S-10 Dial Indicator, 3/8" Stem Dia., Lug Back, 0-100 Reading, 2.25" Dial Dia., 0-1" Range, 0.001" Graduation, +/-0.002" Accuracy

Roll over image to zoom in Click on image to zoom

Mitutoyo 2416S-10 Dial Indicator, 3/8" Stem Dia., Lug Back, 0-100 Reading, 2.25" Dial Dia., 0-1" Range, 0.001" Graduation, +/-0.002" Accuracy

Name: Mitutoyo 2416S-10 Dial Indicator, 3/8" Stem Dia., Lug Back, 0-100 Reading, 2.25" Dial Dia., 0-1" Range, 0.001" Graduation, +/-0.002" Accuracy
Brand: Mitutoyo
SKU: 2416S-10
Price: 85.0 EUR
Availability: InStock

MitutoyoSKU: 2416S-10

Price:

€85.00 €150.00

Quantity:

Mitutoyo 2416S-10 Dial Indicator Technical Specifications:

Jewelled Bearing

Measuring Force: 1.8 N
Style: Inch Series 2
Stem Diameter: 3/8″
Measuring Range: 1.000″
Accuracy: 0.001″
Dial Size: 2.200″
Dial Reading: 0-100
Graduation: 0.001″

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	2416S-10
Measuring Range	1"
Graduation	.001"
Accuracy	.002"
Unit of Measurement	Inch
Display Type	Analogue
IP Rating	["IP64"]
Measuring Force	≤1.8N
Type	Lug Back
Graduation on Thimble	.001"
Repeatability	±.0002"
Dial Reading	0-100
Dial Face Size Ø	2,25"
Hysteresis	.0002"
Stem	9.52mm/3/8"
Stem Diameter	3/8"
Back	Centre Lug Back
Range Per Rev	.1"
Scale	0-100
Calibration Code	CAL14 B4
Stem	9.52mm/3/8"

Mitutoyo 2416S-10 Dial Indicator, 3/8" Stem Dia., Lug Back, 0-100 Reading, 2.25" Dial Dia., 0-1" Range, 0.001" Graduation, +/-0.002" Accuracy
