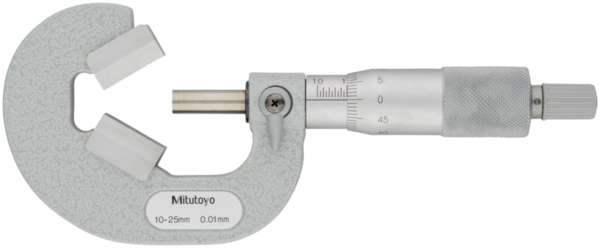

Mitutoyo 3 Flute V-Anvil Micrometer 10-25mm 114-162

Name: Mitutoyo 3 Flute V-Anvil Micrometer 10-25mm 114-162
Brand: Mitutoyo
SKU: 114-162
Price: 415.0 EUR
Availability: InStock

MitutoyoSKU: 114-162

Price:

€415.00 €553.00

Quantity:

This V-Anvil Micrometer helps you measure cutting tools and taps.
It offers the following benefits:

It measures the outside diameter of cutting tools (such as taps, reamers, end mills) which have three or five flutes.
V-anvils with a centreline groove are available for measuring the pitch diameter of taps by the single-wire method.

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Digital/Analog:	Analog
Delivered:	Including box, spanner, setting standard
Inch-Metric:	Metric
Range:	10 - 25 mm
Graduation:	0,01 mm
Max. Permissible Error J MPE:	±4 µm
Anvil:	Without groove
Measuring face:	Prism angle 60°/108°
Measuring spindle:	With spindle lock, ø6,35 mm, spindle pitch 0,75 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	5 - 10 N
Setting standard:	167-328 ø 10 mm
Delivered:	Including box, setting standard, key
Mass:	280 g
