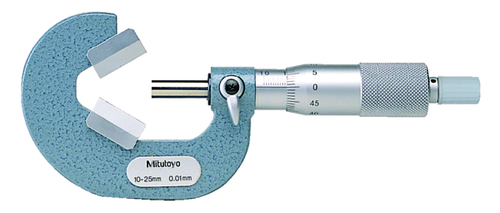

Mitutoyo 3 Flute V-Anvil Micrometer 10-25mm 114-102

Roll over image to zoom in Click on image to zoom

Mitutoyo 3 Flute V-Anvil Micrometer 10-25mm 114-102

Name: Mitutoyo 3 Flute V-Anvil Micrometer 10-25mm 114-102
Brand: Mitutoyo
SKU: 114-102
Price: 368.0 EUR
Availability: InStock

MitutoyoSKU: 114-102

Price:

€368.00 €490.00

Quantity:

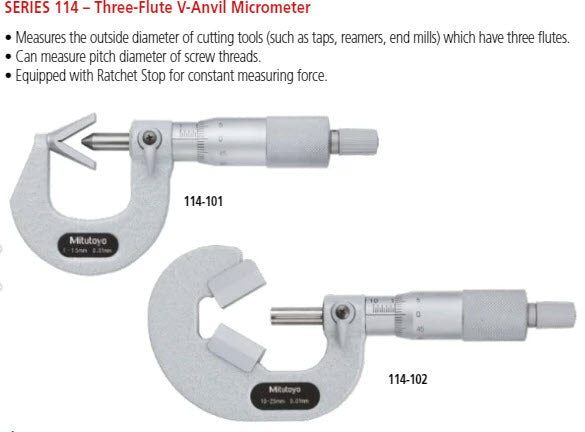

A Mitutoyo non-digital micrometer provided with a V-shaped anvil to enable measurement of 3-flute cutting tools, such as taps and reamers. A ratchet stop guarantees repeatable measurement.

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

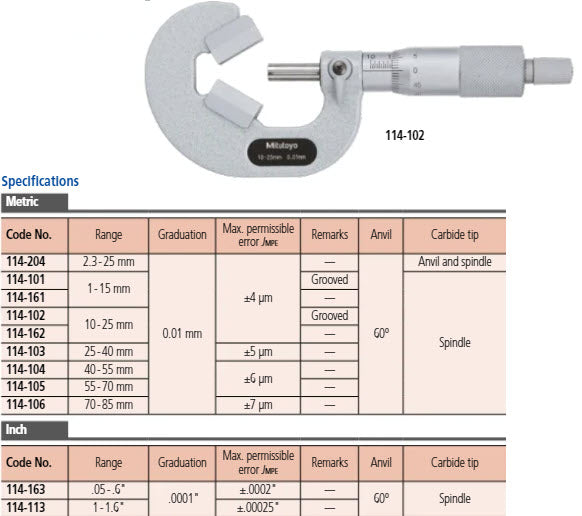

Product Information
Part Number	114-102
Measuring Range	10-25mm
Accuracy	["±.004mm"]
Graduation	.01mm
Accuracy	+/-.004mm
Unit of Measurement	Metric
Measuring Force	5-10N
Type	V-Anvil
Constant Force Device	Ratchet Stop
Anvils & Spindle Design	Anvil is 60 Degrees
Calibration Code	CAL9 B1

Digital/Analog:	Analog
Delivered:	Including box, spanner, setting standard
Inch-Metric:	Metric
Range:	10 - 25 mm
Graduation:	0,01 mm
Max. Permissible Error J MPE:	±4 µm
Anvil:	With groove
Measuring face:	Prism angle 60°/108°
Measuring spindle:	With spindle lock, ø6,35 mm, spindle pitch 0,75 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	5 - 10 N

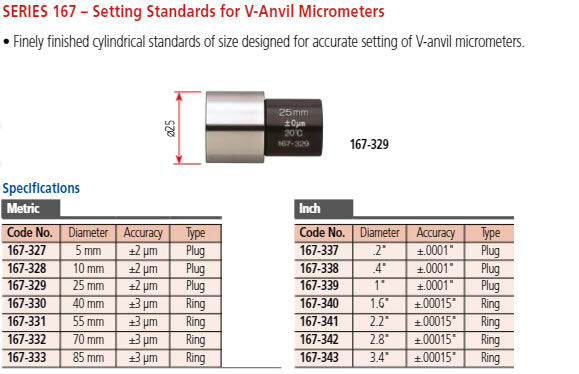

Setting standard:	167-328 ø 10 mm
Delivered:	Including box, setting standard, key
Mass:	280 g
