2-Point Inside Measuring Instrument Bore Gauge, .24-.4", Graduation .0005" 511-213

Roll over image to zoom in Click on image to zoom

2-Point Inside Measuring Instrument Bore Gauge, .24-.4", Graduation .0005" 511-213

Name: 2-Point Inside Measuring Instrument Bore Gauge, .24-.4", Graduation .0005" 511-213
Brand: Mitutoyo
SKU: 511-213-20
Price: 359.0 EUR
Availability: InStock

MitutoyoSKU: 511-213-20

Price:

€359.00 €479.00

Quantity:

These are bore gauges that automatically self-centre via a centring bridge.
They offer you the following benefits:

A long plunger stroke gives you amazing accuracy.
Interchangeable washers 0.5 mm thick are supplied as standard accessories, so you can enable setting in small steps.
Contact points are carbide (>18 mm range), giving you high durability and wear resistance.

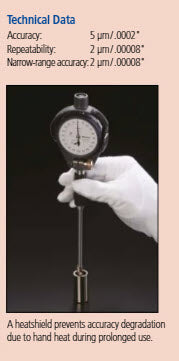

A large grip reduces heat transfer from the operator by 50%.

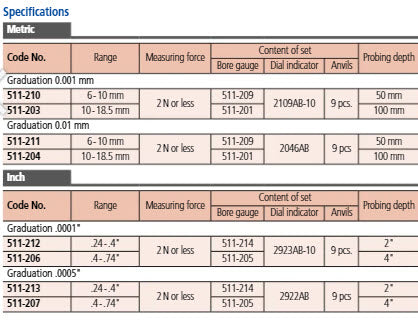

Product Information
Part Number	511-213-20
Measuring Range	0.24-0.4"
Accuracy	["±.0002\""]
Graduation	.0005"
Accuracy	+/-.0002"
Unit of Measurement	Inch
Display Type	Analogue
Items Per Set	9
Measuring Force	≤2N
Repeatability	.00008"
Probing Depth	2"

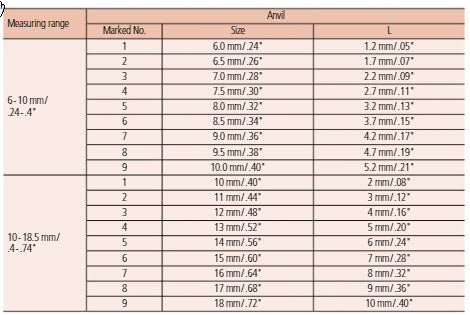

Anvils	Anvil Size No 1, 6mm/.24" Length 1.2mm/.05", Anvil Size No 2 6.5mm/.26" Length 1.7mm/.07", Anvil Size No 3, 7mm/.28" Length 2.2mm/.09", Anvil Size No 4, 7.5mm/.3" Length 2.7mm/.11", Anvil Size No 5, 8mm/.32" Length 3.2mm/.13", Anvil Size No 6, 8.5mm/.32" Length 3.2mm/.13", Anvil Size No 7, 9mm/.36" Length 4.2mm/.17", Anvil Size No 8, 9.5mm/.36" Length 4.7mm/.19", Anvil Size No 9, 10mm/.4" Length 5.2mm/.21"

Inch-Metric:	Inch
Digital/Analog:	Analog
Range:	0.24 - 0.4 "
Graduation:	0.0005"
Stroke of contact point:	0.5 mm
Measuring depth:	2"
No. Dial Indicator:	2922SB
Number of anvils:	9
Accuracy:	5 µm
Repeatability:	2 µm
Measuring force:	≤2 N

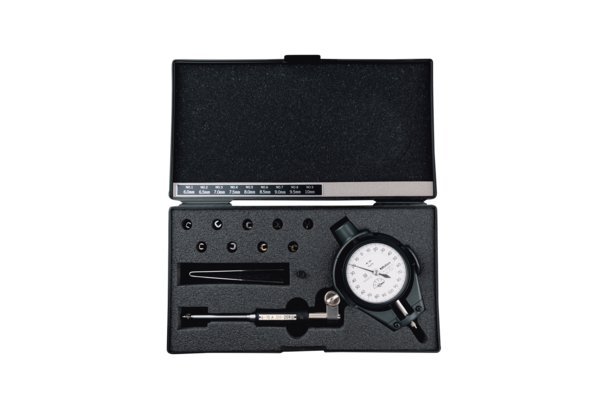

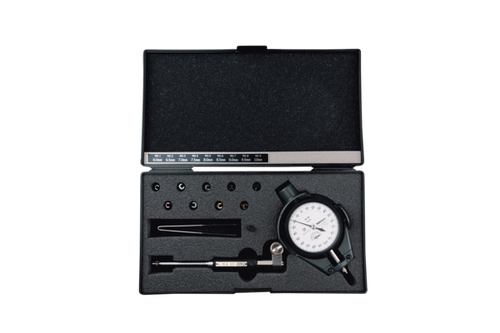

Delivered:	In a box with bore gauge 511-214, dial indicator 2922AB, plastic cover for indicator 21DZA000, 9 anvils
Mass:	260 g
