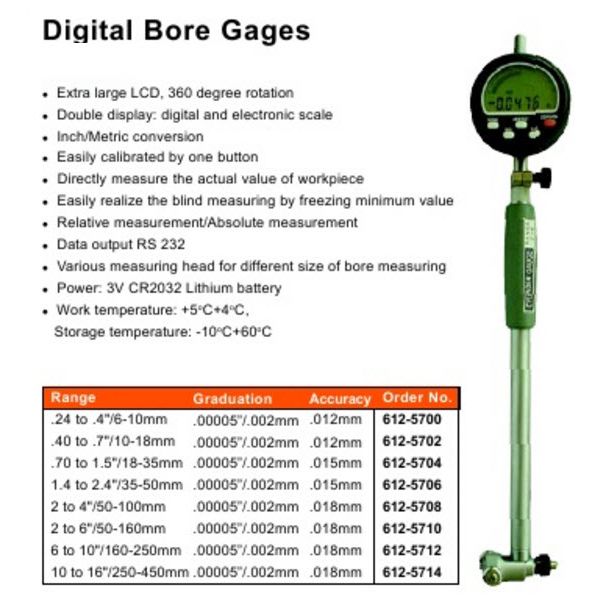

Professional Precision Electronic Bore Gage
Deep cylinder bore gaugeing to a depth of 6" affords the user the ability to measure out-of-round conditions and tapers of cylinders without the necessity of removing pistons - critical wear area of the cylinder can be reached with this gauge.
Features:
- Inch / Metric
- Measures bore to 6"/150mm deep
- Range .24 to .4"/6-10mm
- Analog bar display with adjustable rang and tolerance indicators
- Convenience to indicate measurements whether out of set tolerance or not
- Fast to read Max. / Min. measurement
- SPC digital output
- Resolution: .001"/.00005"
- Large LCD screen
- ABS storage case and extra batteries included

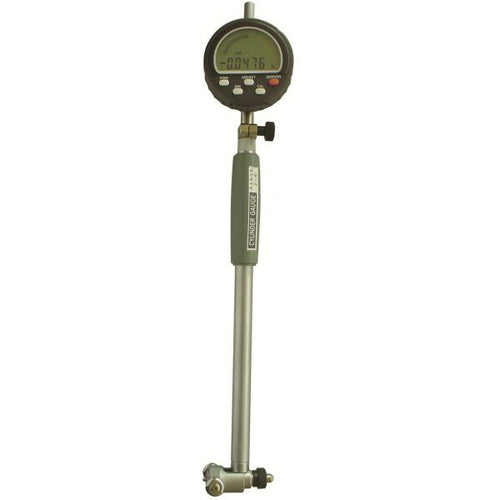

MHC Bore Gauge Meas. Depth:150mm Range .24 to .4"/6-10mm, Accuracy:0.012mm Resolution:0.001mm (0.00005")
-
