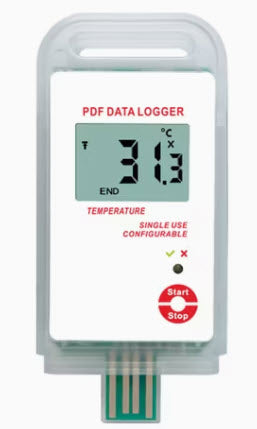

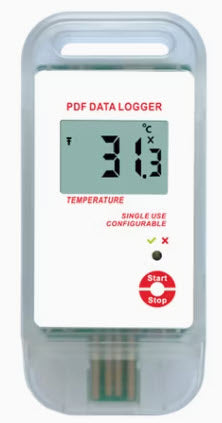

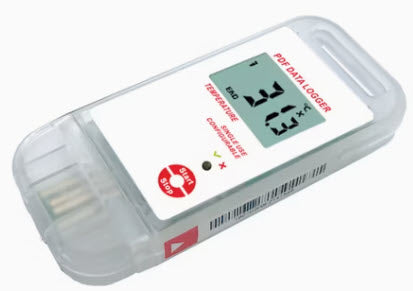

These data loggers are ideal for monitoring the temperature in transport, storage and testing process. The recording is started and stopped by pressing a button. And insert into the USB slot on any computer to get the PDF report directly without any software and driver.
Features:
- Generating PDF report without any software and driver
- Built-in USB interface
- 6 mark points supported
- LED status and alarm indication
Specification:
|
Specifications |
YXUP-10D |
YXUP-10 |
YXUP-11LT |
|
Use type |
3 Time User / Single-use (Optional) |
||
|
Sensor |
Digital IC |
||
|
LCD Display |
Supported |
Not Supported |
Not Supported |
|
Measurement Range |
-30ºC~+70ºC |
-40ºC~+80ºC |
|
|
Accuracy |
±0.5ºC (-30~70ºC) |
±0.3ºC (-15~80ºC) |
|
|
Resolution |
±0.1ºC |
||
|
Data Storage Capacity |
17280 |
||
|
Sample interval |
10sec. to 18hours |
||
|
Run days |
1 day to 360 days |
||
|
High and low alarm |
User-configurable |
||
|
Alarm delay |
0 to 960min. |
||
|
Alarm type |
Single type; Accumulation type |
||
|
Start delay |
0~254min. |
||
|
Start mode |
By button |
||
|
Stop mode |
By button; Memory full; When into USB |
||
|
Size/Weight/Case material |
85mmX38mmX12mm/20g |
||
|
Protection class |
IP55 |
||
|
Standards/Certificates |
CE, ROHS, EN12830 |
||
|
Communication interface |
Build-in USB 2.0 |
||
|
Power supply |
3.6V lithium (measuring range <-30ºC), CR2032 (others) non-replaceable |
||
|
Shelf Life |
2 years |
||
