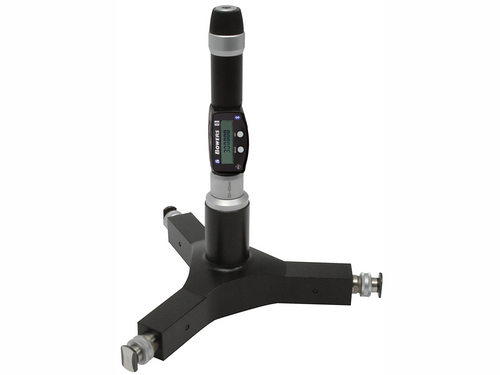

Bowers XT500 large diameter 3-point bore-gauge
The newly designed constant-force digital readout ensures that the measuring pressure remains constant throughout the measurement whilst radiuses measuring anvils provide optimum centralisation in the part. Anvil sets are supplied in 25mm steps (300-325, 325-350 etc) and each set has been manufactured to the exact tolerance size. The 300-325mm anvils are the master reference set and are used for setting the gauge in the setting ring. The other anvil sets are then fitted as required without further re-setting. This means that only one 300mm setting ring is required to set the gauge for all diameters in the full 300-500mm range of the instrument.
Bore Gauge Features
- Range: 300-400mm (11.81-15.74″)
- Resolution: 0.01/0.001mm (0.0005/0.00005″)
- Repeatability: 0.003mm (0.0001″)
- Accuracy: ± 0.015mm (0.0005″)
- IP67 Protected: Electric unit has high level of dust and liquid resistance
- Bluetooth connectivity
- Measuring Depth: 120mm
- Setting rings: 300
- Three Point
- Extensions available for deep hole measurement
- UKAS certificate with setting ring
- Certificate of conformity with bore gauge
- Supplied in fitted case
