Wyler SKU: 155S300-113-050
List price: €1,506.00 Offer price: €1,205.00 Excluding VAT
Wyler Levels

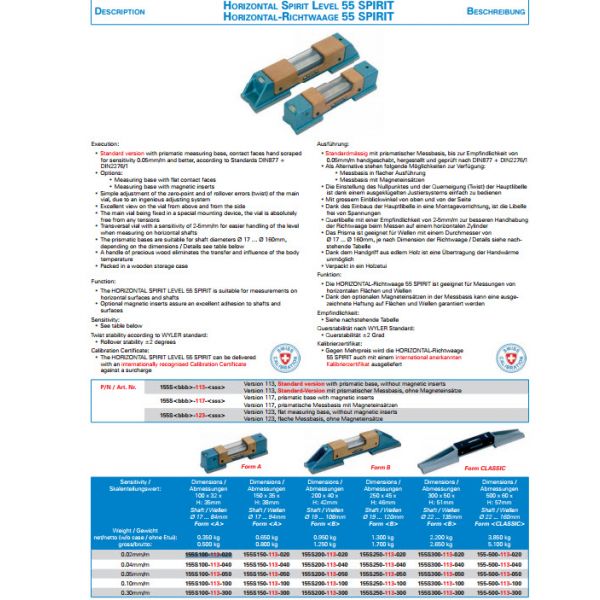

Execution:
- Standard version with prismatic measuring base contact faces hand scraped for sensitivity 0.05 mm/m and better according to Standards DIN877 + DIN2276/1
- Options:
- Measuring base with flat contact faces
- Measuring base with magnetic inserts
- Simple adjustment of the zero-point and of rollover errors (twist) of the main vial due to an ingenious adjusting system
- Excellent view on the vial from above and from the side
- The main vial being fixed in a special mounting device the vial is absolutely free from any tensions
- Transversal vial with a sensitivity of 2-5 mm/m for easier handling of the level when measuring on horizontal shafts
- The prismatic bases are suitable for shaft diameters

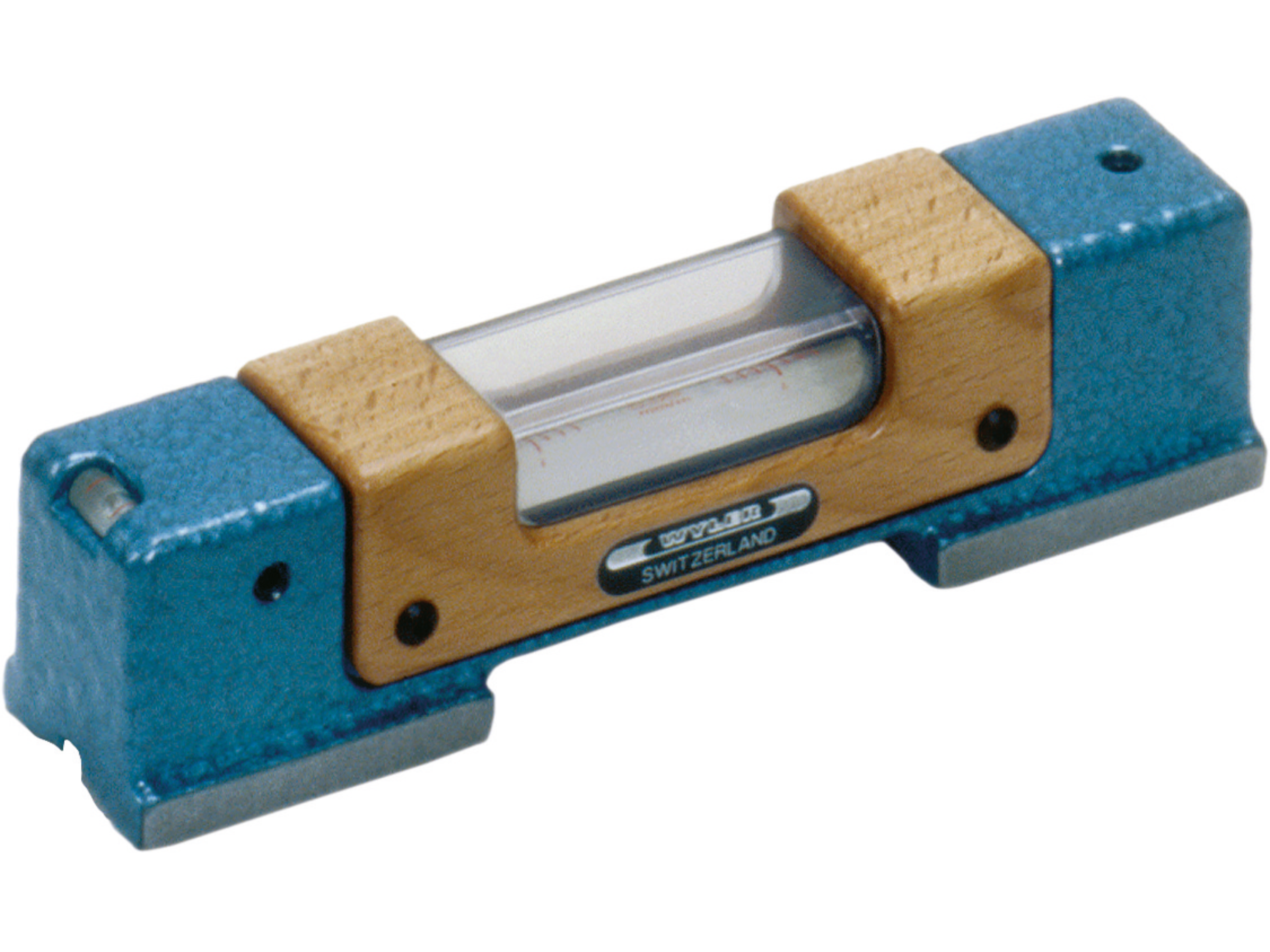

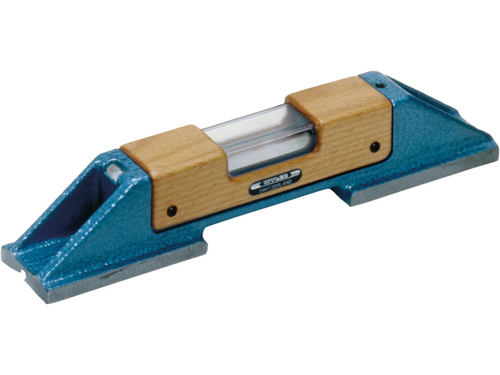

Wyler 155S300-113-050
Wyler Precision Engineers Level Dimensions : 300 x 50 x H:51mm
Accuracy Inch : .0005"/10"
Accuracy metric : .05mm/m
Angular : 10 seconds
Bowers 60-6273

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
