Wyler 155S300-113-020 Wyler Precision Engineers Level Dimensions : 300 x 50 x H:51mm Accuracy Inch : .0002"/10" Accuracy metric : .02mm/m Angular : 4 seconds, 60-6272

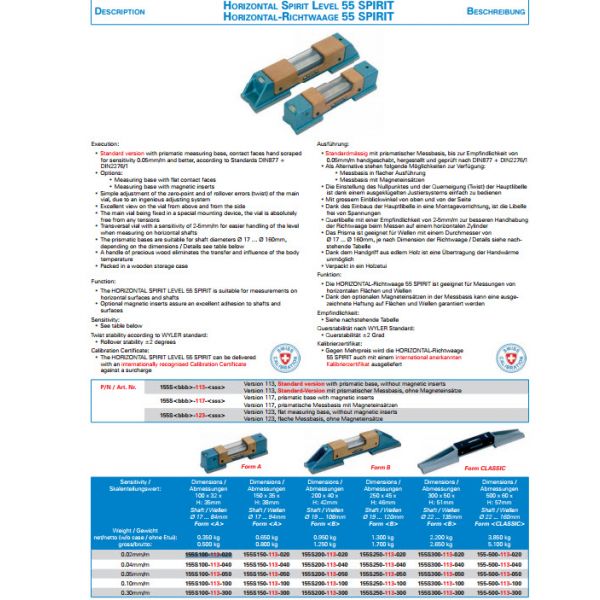

Wyler Levels
Execution:
- Standard version with prismatic measuring base contact faces hand scraped for sensitivity 0.05 mm/m and better according to Standards DIN877 + DIN2276/1
- Options:
- Measuring base with flat contact faces
- Measuring base with magnetic inserts
- Simple adjustment of the zero-point and of rollover errors (twist) of the main vial due to an ingenious adjusting system
- Excellent view on the vial from above and from the side
- The main vial being fixed in a special mounting device the vial is absolutely free from any tensions
- Transversal vial with a sensitivity of 2-5 mm/m for easier handling of the level when measuring on horizontal shafts
- The prismatic bases are suitable for shaft diameters

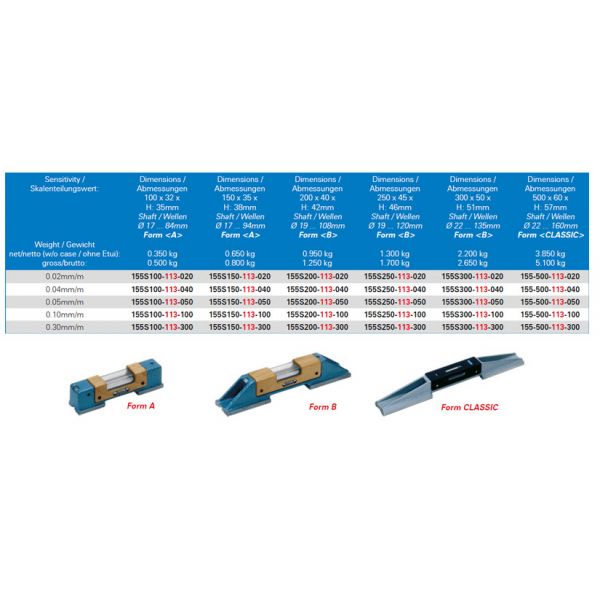

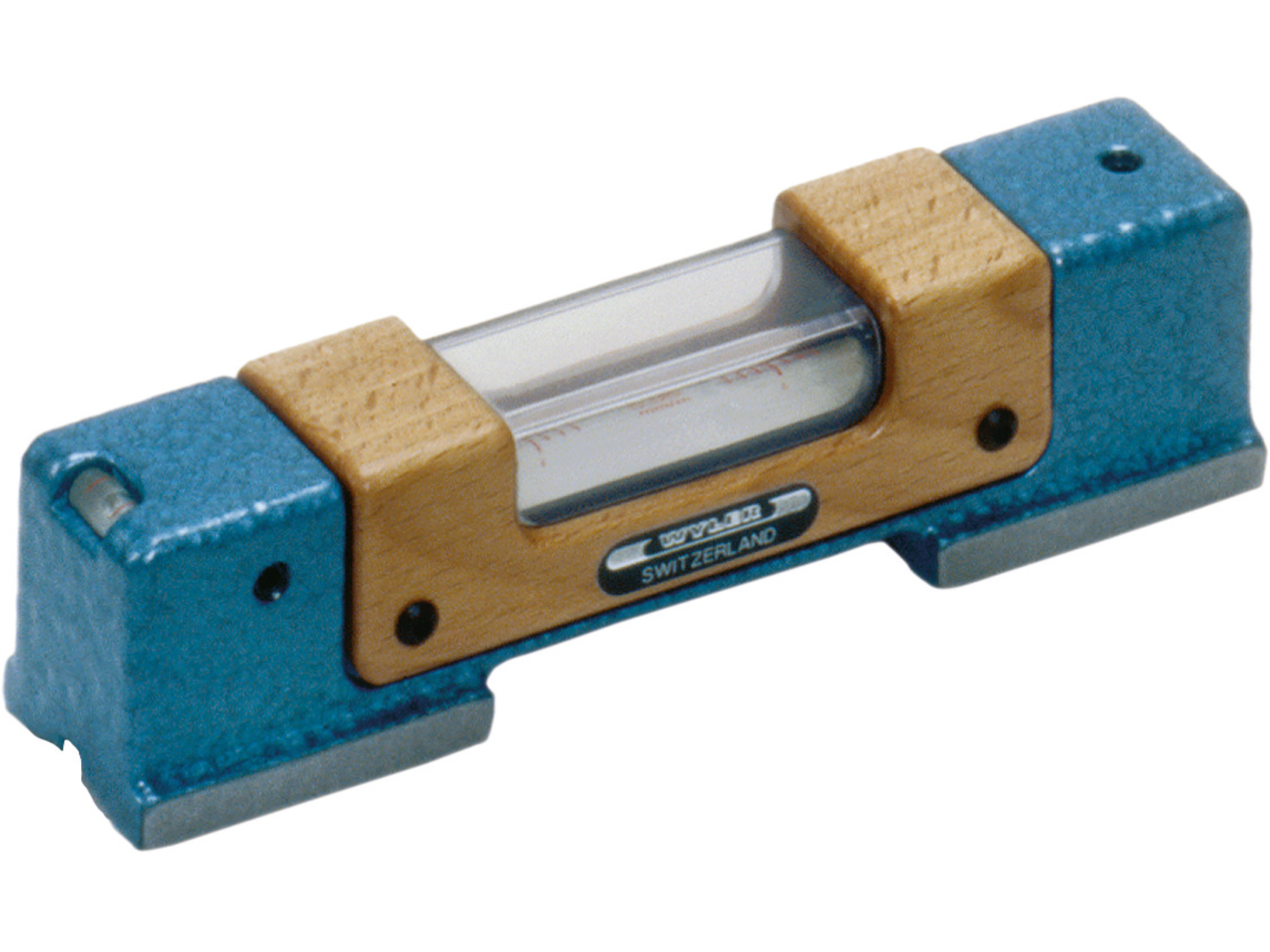

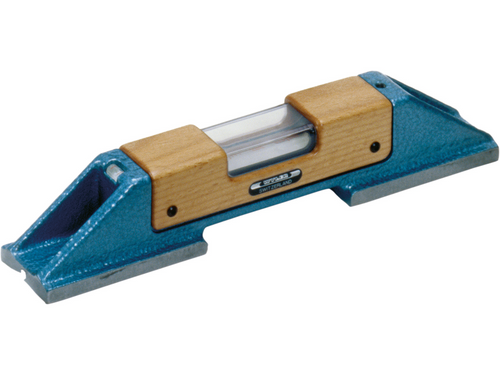

Wyler 155S300-113-020

Wyler Precision Engineers Level Dimensions : 300 x 50 x H:51mm

Accuracy Inch : .0002"/10"

Accuracy metric : .02mm/m

Angular : 4 seconds,

Bowers 60-6272
