Following Features:
• Large and easy to read color display
• Choice of various color profiles

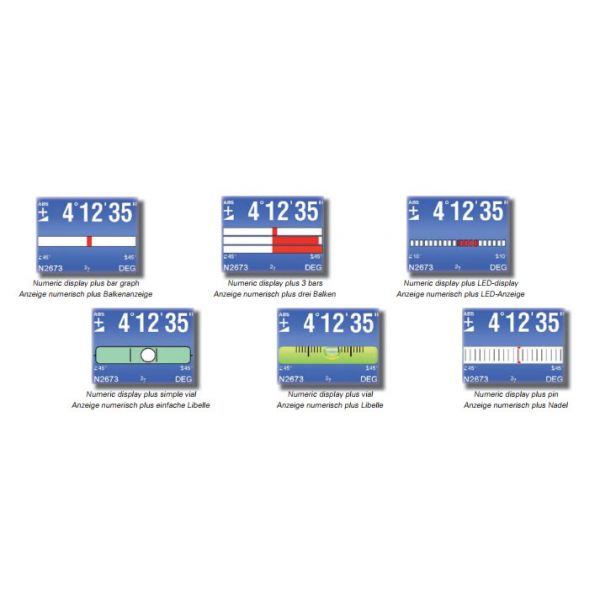

• Coice of various display methods like bar graphs or spirit levels
• All current units can be indicated
• High Precision over the whole measuring range of ± 60° with integrated temperature compensation
• The internal software, together with a reversal measurement allows, a simple zero setting
• Rugged housing, rust protected, with prismatic bases made of either aluminum hard anodized or cast iron, rust protected
• Built-in cross vial for easy alignment of the vertical axis in order to avoid “twist errors”
• The instrument is compatible with the whole range of digital sensors of WYLER
• Powered with common 1.5V Batteries, rechargeable batteries or with mains adapter
• Fulfils the strict CE requirements (immunity against electromagnetic smog)
• The instrument can be adjusted to the local gravitation
Options:
• Wireless communication, based on Bluetooth-technology

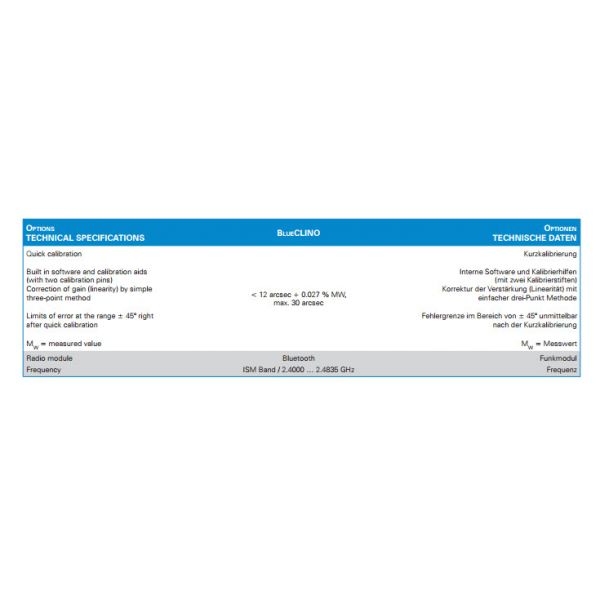

• The instrument can be recalibrated with the help of simple calibration tools which are supplied together with the instrument.
This process is supported by the internal software

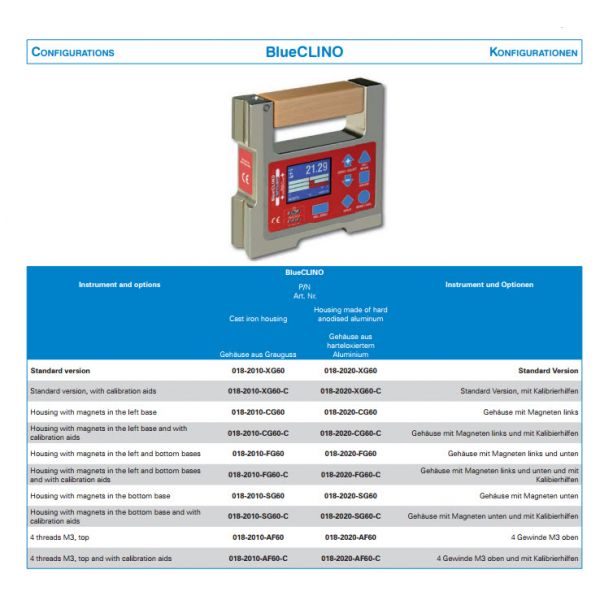

• Magnetic inserts in all measuring bases possible
• The base on the right side can, as an option, be finished in such a way that it can be used as a flat measuring base
• A fourth measuring base may be attached to the top of the instrument
• External power supply

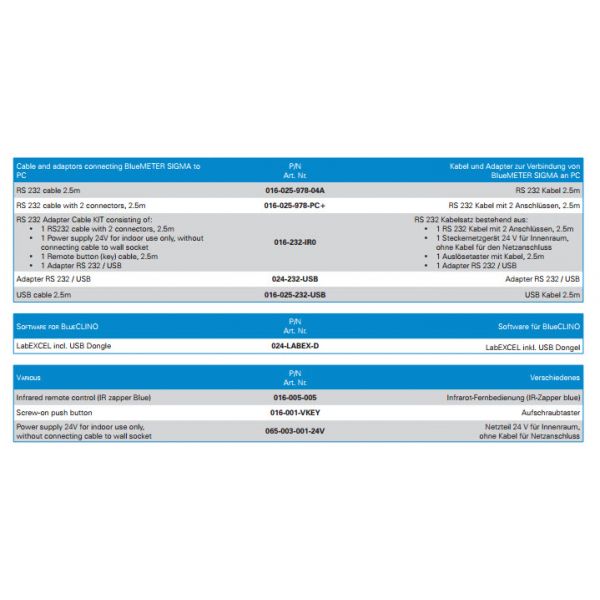

• Cable to connect the instrument to a PC
• Software to collect measuring data BlueCLINO
Wyler Inclinometers are Swiss Made high quality tilt sensors!
• Large and easy to read color display
• Choice of various color profiles
• Coice of various display methods like bar graphs or spirit levels
• All current units can be indicated
• High Precision over the whole measuring range of ± 60° with integrated temperature compensation
• The internal software, together with a reversal measurement allows, a simple zero setting
• Rugged housing, rust protected, with prismatic bases made of either aluminum hard anodized or cast iron, rust protected
• Built-in cross vial for easy alignment of the vertical axis in order to avoid “twist errors”
• The instrument is compatible with the whole range of digital sensors of WYLER
• Powered with common 1.5V Batteries, rechargeable batteries or with mains adapter
• Fulfils the strict CE requirements (immunity against electromagnetic smog)
• The instrument can be adjusted to the local gravitation
Options:
• Wireless communication, based on Bluetooth-technology
• The instrument can be recalibrated with the help of simple calibration tools which are supplied together with the instrument.
This process is supported by the internal software
• Magnetic inserts in all measuring bases possible
• The base on the right side can, as an option, be finished in such a way that it can be used as a flat measuring base
• A fourth measuring base may be attached to the top of the instrument
• External power supply
• Cable to connect the instrument to a PC
• Software to collect measuring data BlueCLINO
Wyler Inclinometers are Swiss Made high quality tilt sensors!

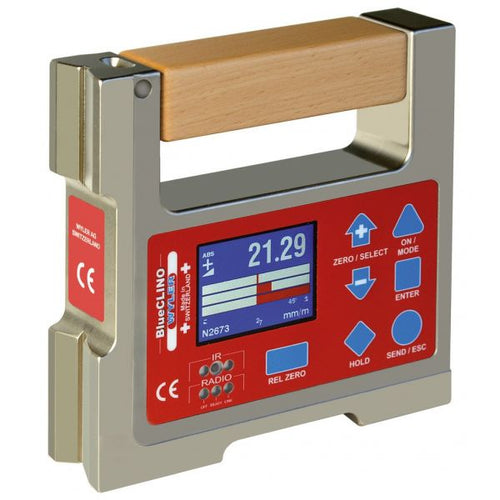

Wyler 018-2010-XG60 BlueCLINO 2000, measuring range of ± 60°, Precision Inclinometers, Standard Version no magnets 60-6190B, 54-825-350
| Magnetic inserts | None |
|---|---|
| Operating temperature | + 0 ... + 40 °C |
| Settle time | ca.5 seconds |
| Weight | 3450 g |
| Output | RS232 / RS 485 - asynchr - 7 Bit 2 Stopbits - no parity - 9600 Baud |
| Battery | 2 x 1.5 V Alkaline |
| Housing | Cast iron rust protected |
| Remark | Standard version |
| External Power Supply | +24 V DC |
| Fowler Part Numbers for Wyler | 54-825-300 |
| Responce Time | < 5 sec |
| Part Number | 018-2010-XG60 |
| Model | BlueCLINO |
| SPC Output | Yes |
| Bowers Part Number for Wyler | 60-6190B |
| Dimensions | 150 x 150 x 40mm |
| Shaft Diameter | Ø 19 ... 108mm |
| Sensitivity | 5 arcsec |
| Level type | Electronical |
