Mahr Test Indicators 4307960, Graduation: .0005", Model: 801SR, Range: .060", Face diameter 1.5, Force 0.15N Stylus Length .57

Roll over image to zoom in Click on image to zoom

Mahr Test Indicators 4307960, Graduation: .0005", Model: 801SR, Range: .060", Face diameter 1.5, Force 0.15N Stylus Length .57

Name: Mahr Test Indicators 4307960, Graduation: .0005", Model: 801SR, Range: .060", Face diameter 1.5, Force 0.15N Stylus Length .57
Brand: Mahr
SKU: 4307960
Price: 206.57 EUR
Availability: InStock

MahrSKU: 4307960

Price:

€206.57

Quantity:

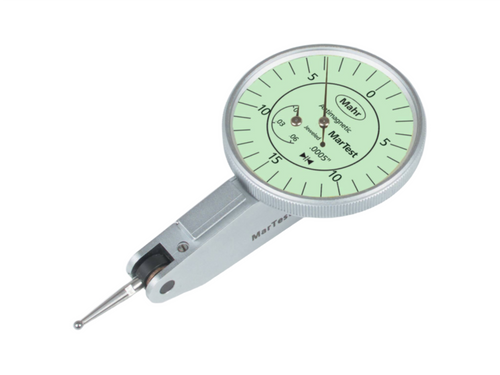

MarTest 801SR Lever-Type DTI 4307960

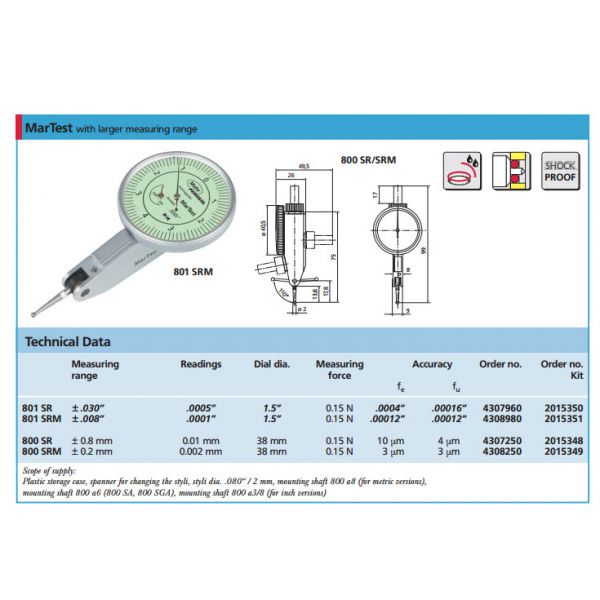

Specification

Product type 801 SR
Measuring range inches ± .030"
Standard Factory standard
Figure on dial face 15-0-15
Pointer rotation (inches) .03"
Deviation range fe (inches) .0004"
Total deviation range fges (inches) .0005"
Measuring value hysteresis fu (inches) .0002"
Partial measuring range ft (inches) .0002"
Repeatability fw (inches) .0001"
Measuring force 0.15 N
Scale diameter (inches) 1.5"

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	4307960
Measuring Range	0.06"
Graduation	.0005"
Accuracy	.0004"
Unit of Measurement	Inch
Measuring Force	0.15N
Tip Diameter Ø	.078"
Length	.58"
Repeatability	±.0001"
Dial Reading	15-0-15
Dial Face Size Ø	1.5"
Hysteresis	.0002"
Stem Diameter	3/8"
Calibration Code	CAL14 B1

Mahr Test Indicators 4307960, Graduation: .0005", Model: 801SR, Range: .060", Face diameter 1.5, Force 0.15N Stylus Length .57

Description

MarTest 801SR Lever-Type DTI 4307960
