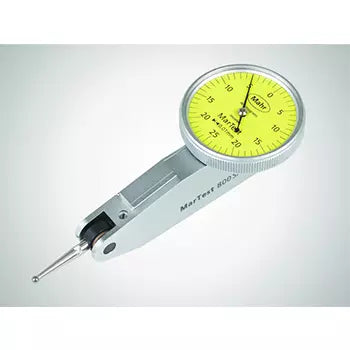

MarTest 800SA Lever-Type DTI 4301200 Measuring range mm ± 0.4mm x .01mm
Roll over image to zoom in Click on image to zoom
MarTest 800SA Lever-Type DTI 4301200 Measuring range mm ± 0.4mm x .01mm

MarTest 800SA Lever-Type DTI 4301200 Measuring range mm ± 0.4mm x .01mm

Mahr SKU: 4301200
Price: €138.80 Excluding VAT
Why Choose Inspection Equipment
Fast Dispatch Orders dispatched quickly from our extensive warehouse stock.
46 Years of Experience Established in 1980 with decades of metrology expertise.
Technical Support Experienced specialists available before and after your purchase.
25,000+ Products One of Ireland’s largest ranges of precision measurement equipment.
Expert Advice We will help you select the right instrument for your application.
Need help choosing the right product?

MarTest 800SA Lever-Type DTI 4301200

Specification

  • Measuring range ± 0.4mm
  • Product type 800 SA
  • Graduation value 0.01mm
  • Standard Factory standard
  • Figures on dial face 40-0-40
  • Range per rev. in 0.5 mm
  • Span of error fe (µm) 5 µm
  • Total span of error fges (µm) 8 µm
  • Measuring value hysteresis fu (µm) 3 µm
  • Partial measuring range ft (µm) 5 µm
  • Repeatability fw (µm) 3 µm
  • Measuring force 0.1 N
  • Scale diameter 28 mm
