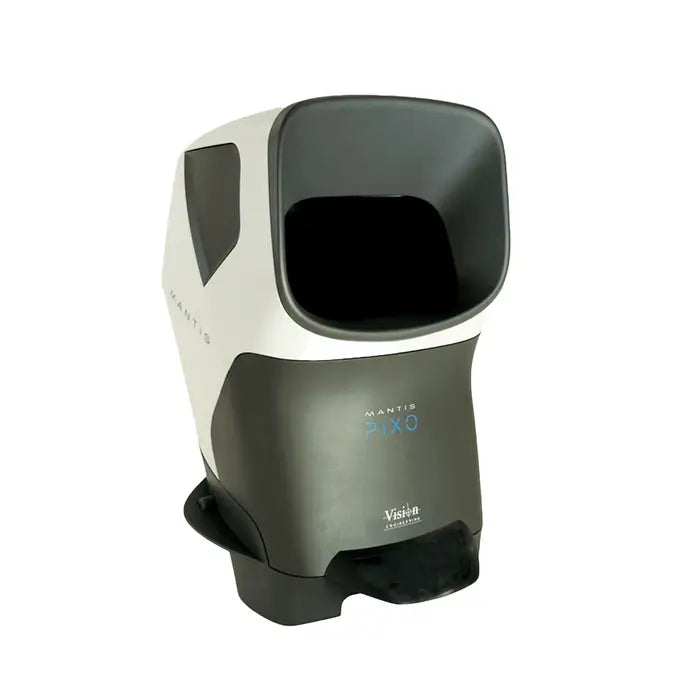

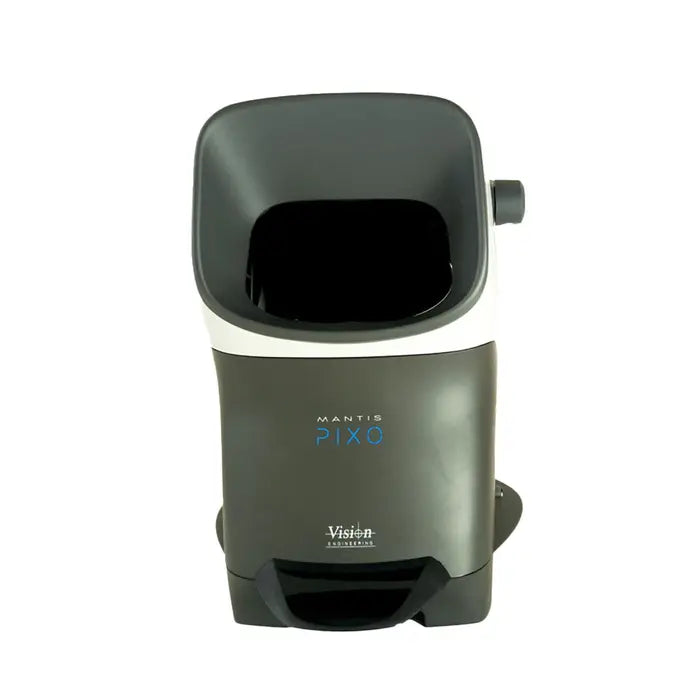

Vision Engineering MPH003 Mantis PIXO [Head Only, White/UV Light]

The Vision Engineering MPH003 is the Mantis PIXO, an Ergonomic Stereo Microscope. The Mantis PIXO (MPH003) is an Eyepiece-less optical stereo microscope with integrated 5Mp high-definition digital camera, dynamic view optics (DVO), superior 3D stereo view and White/UV light combination. The MPH003 features eyepiece-less expanded pupil technology, with a dynamic 3D lighting system and a three (3) Lens Turret for versatile optical configuration. The MPH003 offers a magnification range of 3x - 15x and with the large selection of objective lenses, you can select the objectives most suitable for your application. Super long working distance objective lenses available for when the maximum working distance is required. The MPH003 is equipped with White/UV illumination, ideal for working with UV fluorescing subjects. Coatings, dyes, masking and other subjects can be viewed with white light or excited with UV illumination to fluoresce the subject, providing an easy view for the user. The Mantis PIXO also includes the ViCapture Software for image capture and on-screen annotation

Camera [PIXO Only] -

Camera Resolution: 5.04 MP

Best Capture Resolution: 2592 x 1944

Frame Refresh Rate: 48 Frame Per Second

Sensor Type: Rear-Illuminated CMOS

Color Depth: 12-bit

Interface: Super-Speed USB 3.0

Output Connection: USB-C (to PC)

Supplied Software: ViCapture (Image & Video Capture)
