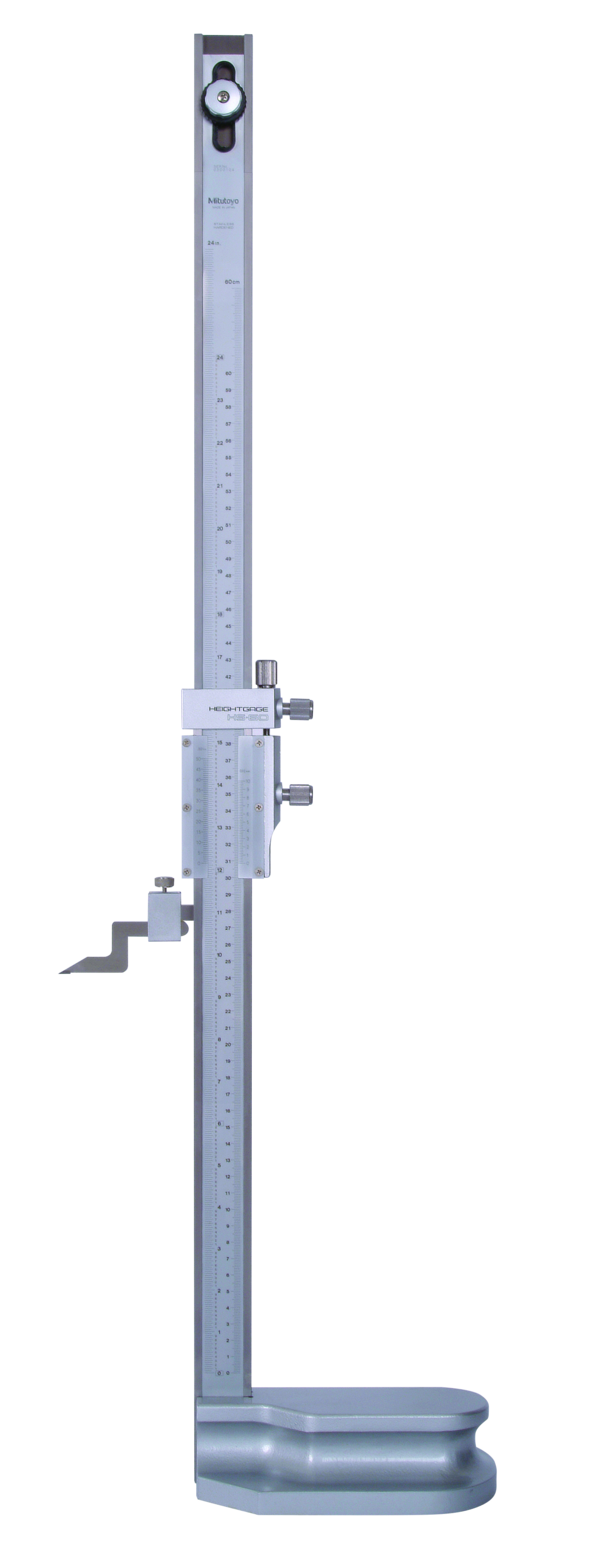

Vernier Height Gauge 0-600mm(0-24")514-107

Name: Vernier Height Gauge 0-600mm(0-24")514-107
Brand: Mitutoyo
SKU: 514-107
Price: 1003.75 EUR
Availability: InStock

MitutoyoSKU: 514-107

Price:

€1,003.75 €1,375.00

Quantity:

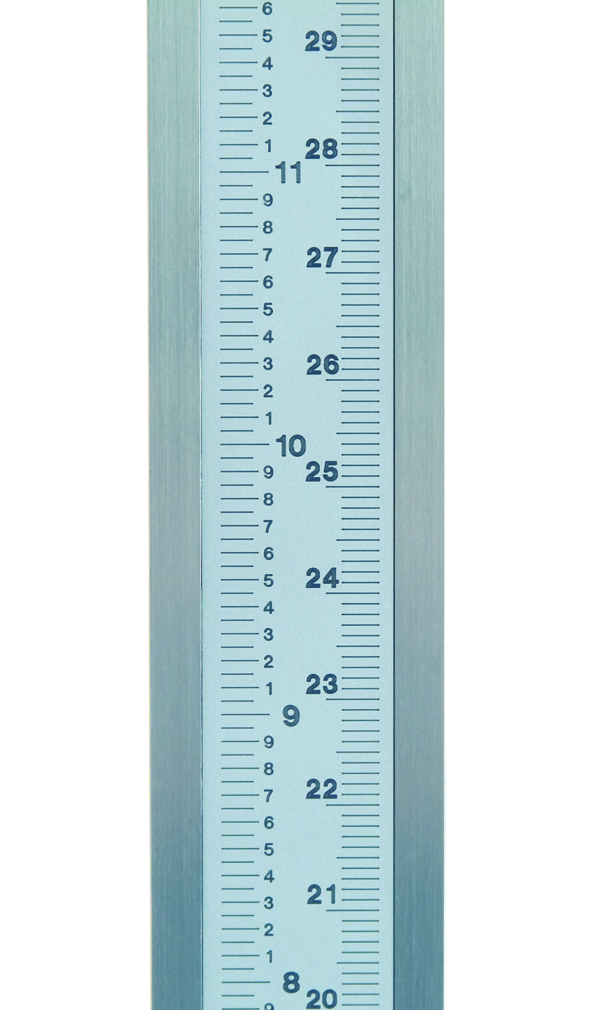

A Mitutoyo vernier height gauge with a dual unit, adjustable main scale. Stainless steel construction with easy-to-read, satin-chromed scales.

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	514-107
Measuring Range	0-600mm/0-24"
Accuracy	["±.05mm/.002\""]
Unit of Measurement	Metric Inch
Display Type	Analogue

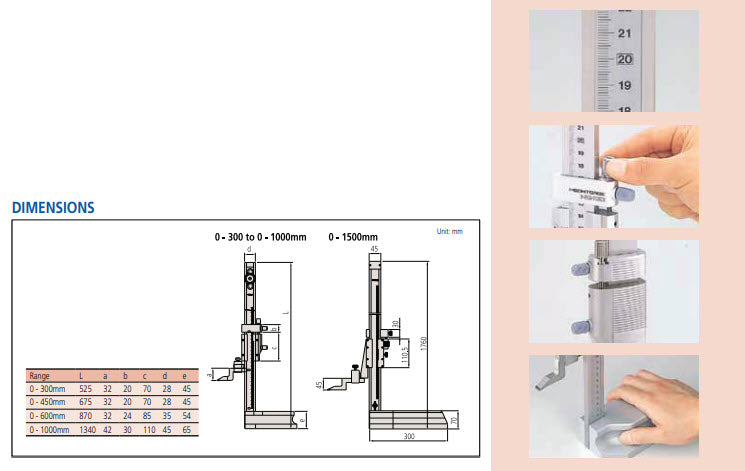

Height	870mm
Graduation on Vernier Sleeve /Dial	.02mm/.001"
Calibration Code	CAL48 B1

Digital/Analog:	Analog
Delivered:	Including carbide tipped scriber, scriber clamp
Range:	0 - 24 "/0-600mm
Graduation:	0,001"/0,02 mm
Max. Permissible Error E MPE:	±0,002"/±0,05 mm

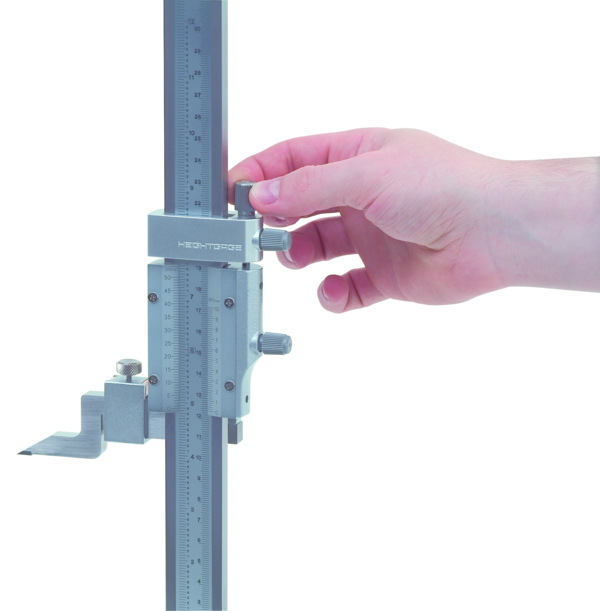

Fine adjustment:	6 mm/0.27"
Max. Permissible Error J MPE:	±0,05 mm/0.002"
Scale adjustment:	0.6"
Inch-Metric:	Inch/Metric
Delivered:	Including scriber, scriber clamp and cover
Mass:	7.4 kg
