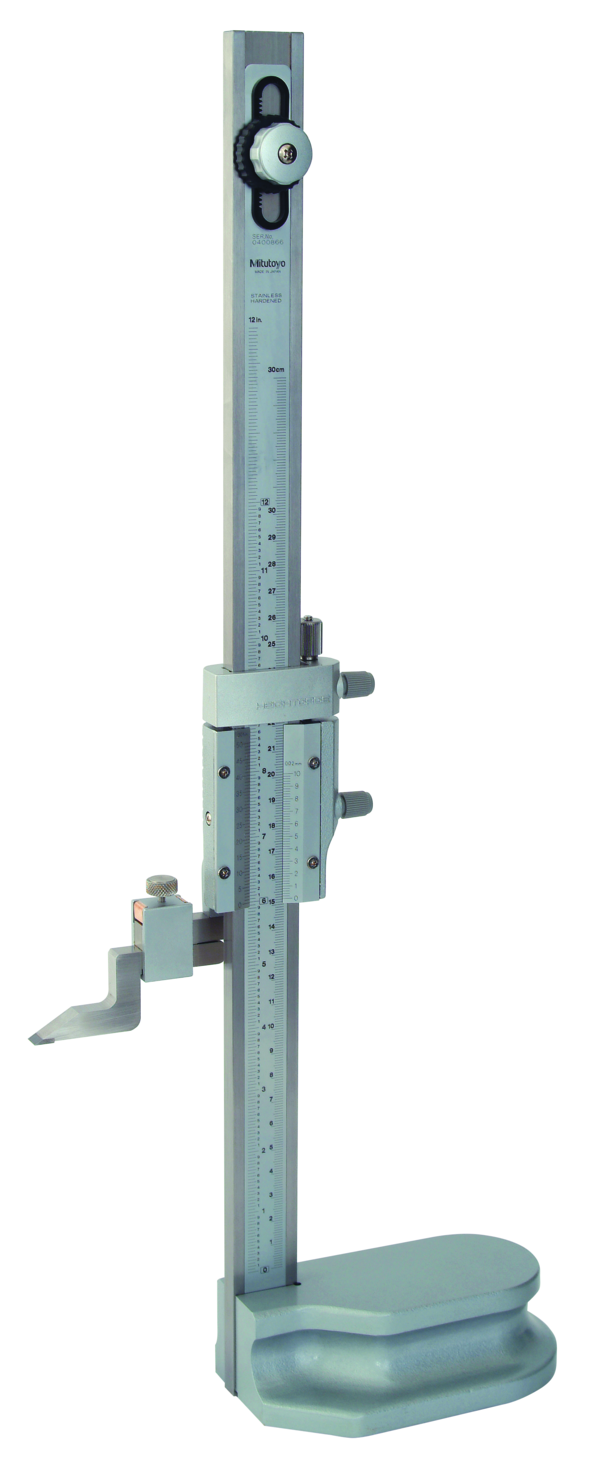

Vernier Height Gauge 0-300mm(0-12") 514-103

Name: Vernier Height Gauge 0-300mm(0-12") 514-103
Brand: Mitutoyo
SKU: 514-103
Price: 394.0 EUR
Availability: InStock

MitutoyoSKU: 514-103

Price:

€394.00 €524.10

Quantity:

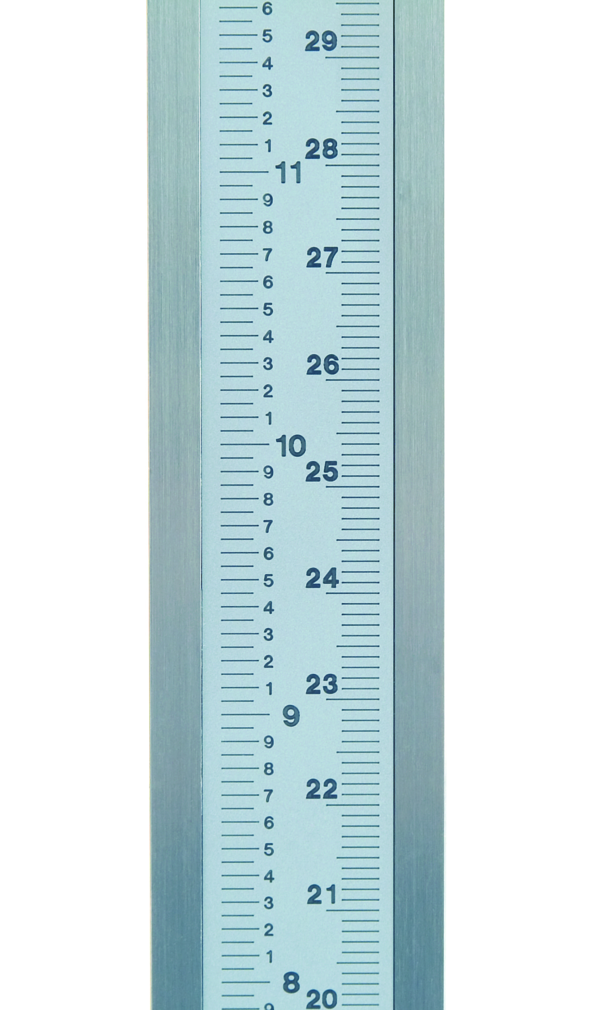

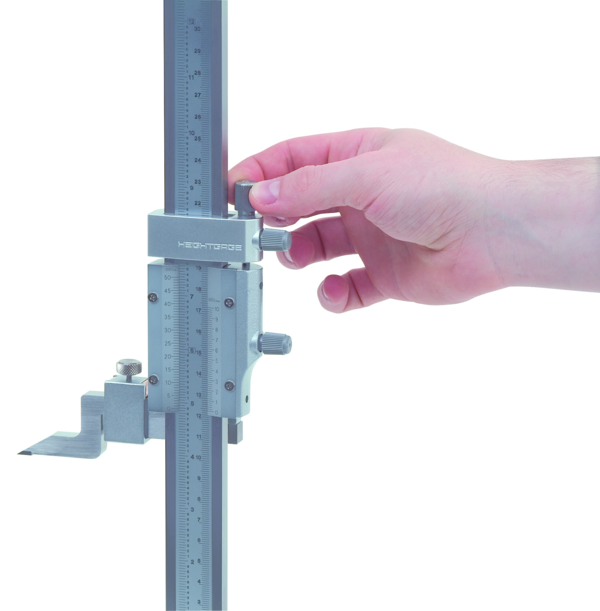

A Mitutoyo vernier height gauge with a dual unit, adjustable main scale. Stainless steel construction with easy-to-read, satin-chromed scales.

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

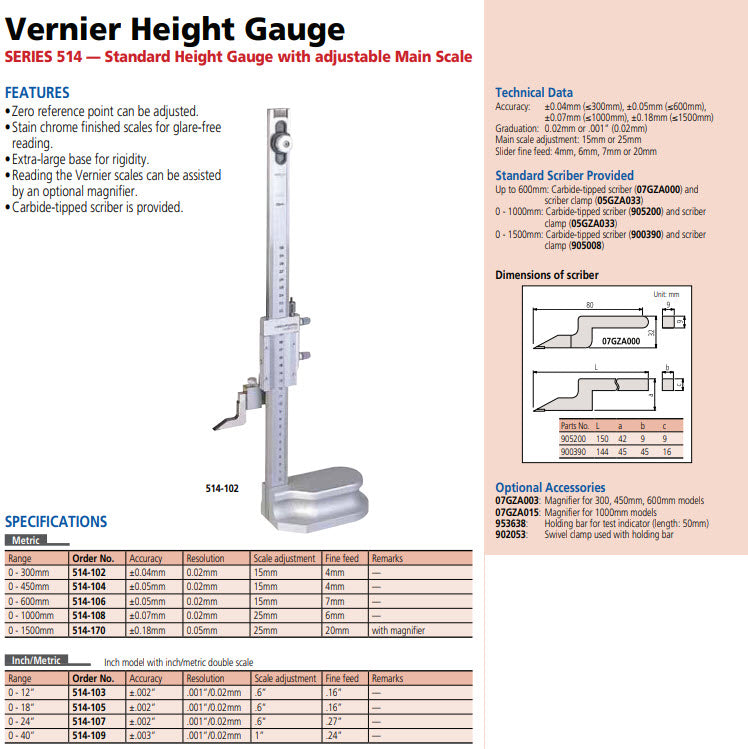

Product Information
Part Number	514-103
Measuring Range	0-300mm/0-12"
Accuracy	["±.04mm/.002\""]
Unit of Measurement	Metric Inch
Display Type	Analogue
Height	525mm
Graduation on Vernier Sleeve /Dial	.02mm/.001"
Calibration Code	CAL48 B1

Digital/Analog:	Analog
Delivered:	Including carbide tipped scriber, scriber clamp
Range:	0 - 12 "/0-300mm
Graduation:	0,001"/0,02 mm
Max. Permissible Error E MPE:	±0,002"/±0,04 mm
Fine adjustment:	4 mm/0.16"
Max. Permissible Error J MPE:	±0,04 mm/0,002"
Scale adjustment:	0.6"
Inch-Metric:	Inch/Metric
Delivered:	Including scriber, scriber clamp and cover
Mass:	3.1 kg

Description
