Mitutoyo Vernier Depth Gauge Hook Type 0-300mm, 0,05mm 527-403

Mitutoyo SKU: 527-403
List price: €258.00 Offer price: €200.00 Excluding VAT

Optional Services

Supplied with a UKAS calibration certificate. Allow 7-10 working days for the calibration
Add your Gauge ID, asset/serial number, company name, logo or QR code.
This hook type vernier depth gauge offers you the following benefits:

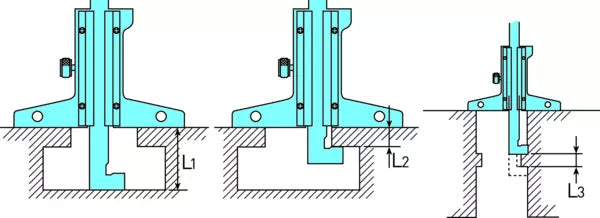

  • The end of the beam is hook-shaped so you can take depth and thickness measurements of a projected portion or lip in a hole, as well as standard depth measurements.
  • Its base and measuring faces are hardened and micro-lapped for robustness.
  • Fine adjustment models are available.
Features
Digital/Analog:
Analog
Inch-Metric:
Metric
Depth
range:
10.1-300 mm
Hook
range:
0-300 mm
Graduation:
0,05 mm
Max. Permissible Error E MPE:
±0,08 mm
L:
410 mm
Delivered:
In a box
Mass:
270 g

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
