Description

This hook type vernier depth gauge offers you the following benefits:

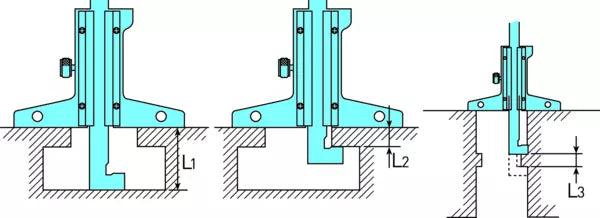

  • The end of the beam is hook-shaped so you can take depth and thickness measurements of a projected portion or lip in a hole, as well as standard depth measurements.
  • Its base and measuring faces are hardened and micro-lapped for robustness.
  • Fine adjustment models are available.
Features
Digital/Analog:
Analog
Inch-Metric:
Metric
Depth
range:
10.1-150 mm
Hook
range:
0-150 mm
Graduation:
0,02 mm
Max. Permissible Error E MPE:
±0,03 mm

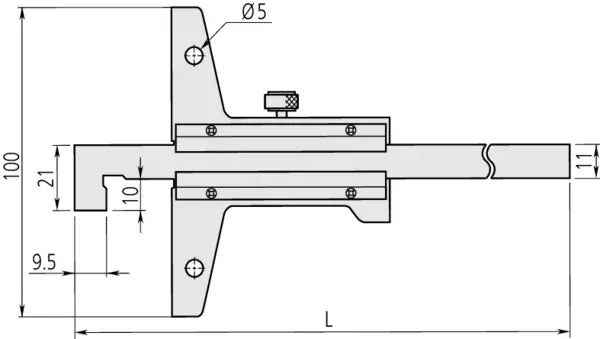

L:
260 mm

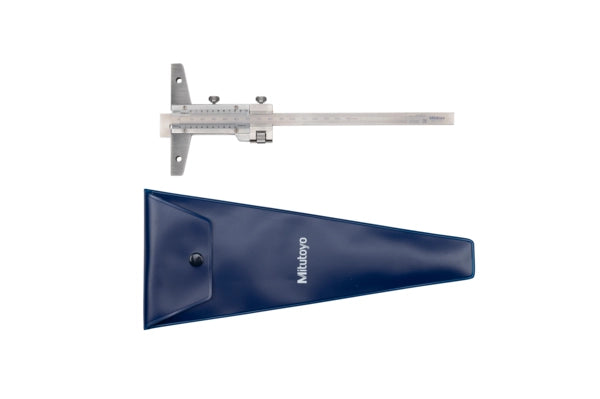

Delivered:
In a box
Mass:
280 g
