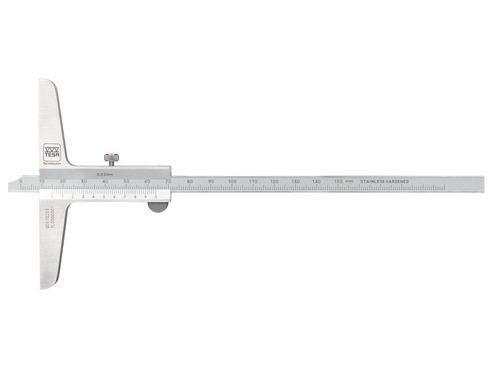

Vernier Depth Caliper with shortcut measuring face
• INSTRUMENT
- Perfect operation of the slider for a silky-smooth operation
- Mains scale slightly set back for protection against wear
• MEASUREMENT
- Satin-chrome scale and vernier for good reading
- Without steel tip
Standard: ISO 13385-2:2019
Max. perm. errors L = length in mm
For resolution 0,02:
0 < L ≤ 100: ± 30 µm
100 < L ≤ 300: ± 40 µm
300 < L ≤ 500: ± 50 µm
For resolution 0,05:
0 < L ≤ 500: ± 50 µm
All images are for representation only.
Technical information will be added shortly.
Application information will be added shortly.
Product videos and documents will be added shortly.
